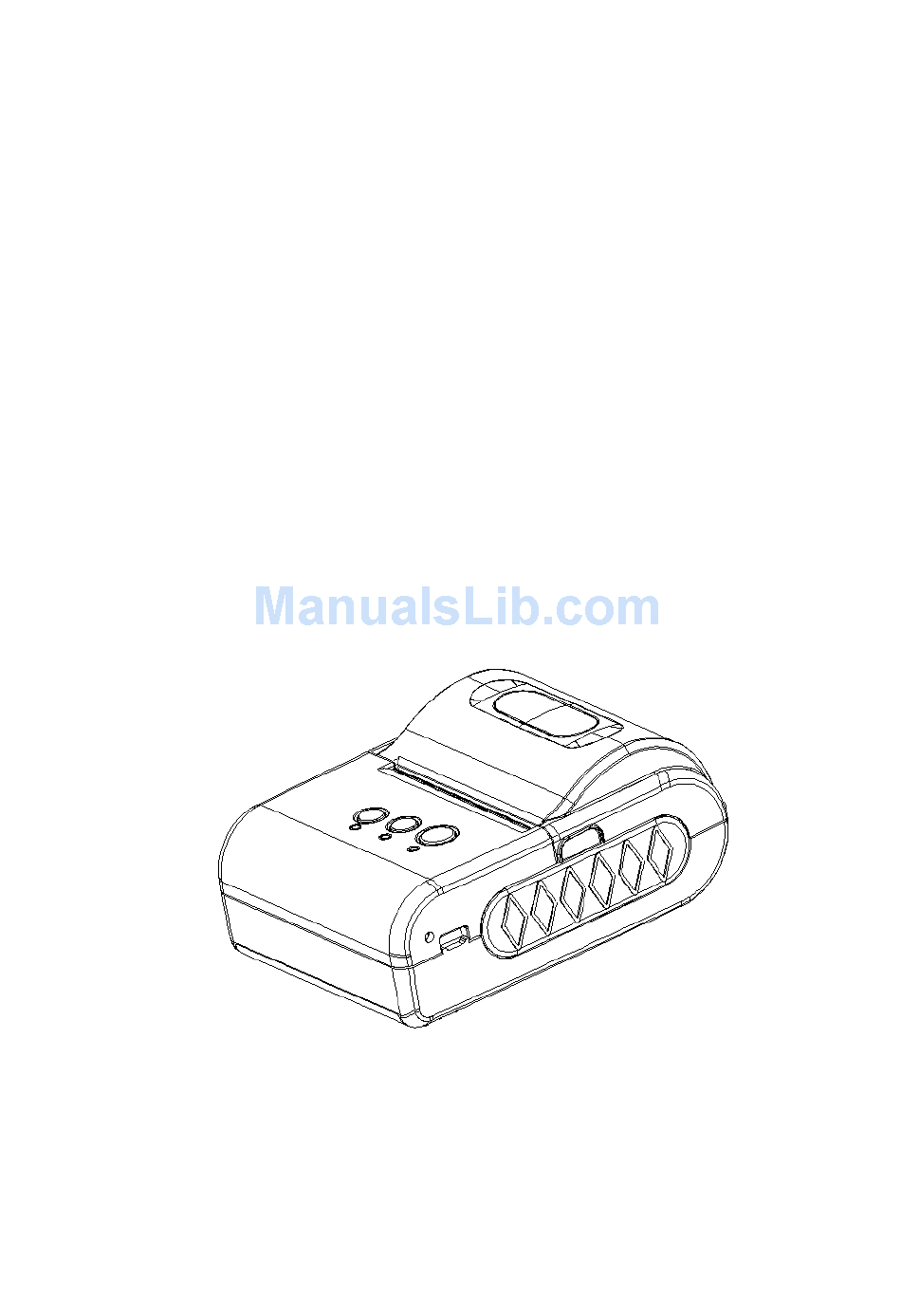

- Page 1 ® SPRT SP-RMT10 Portable Thermal Printer User’s Manual （Ver 1.02） Beijing Spirit Technology Development Co., Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
Content NOTICE .............................. 3 Notice of Safety ..........................3 Notice of Using ..........................3 Notice of Storing ..........................3 Chapter 1 Outer Appearance and Model No..................4 1.1 Outer Appearance ........................4 1.2 Model No..........................4 Chapter 2 Characteristic Specification ....................5 2.1 Printing Specification ...................... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 4: Chapter 1 Outer Appearance And Model No
Chapter 1 Outer Appearance and Model No. 1.1 Outer Appearance 1.2 Model No. SP-RMT10 BT- USB + Bluetooth interface Blank – just USB interface... -
Page 5: Chapter 2 Characteristic Specification
Chapter 2 Characteristic Specification 2.1 Printing Specification Print Printing Method Thermal Line Printing Speed MAX 62mm/s Effective Printing 48mm Width Paper Paper Width 57.5± 0.5mm Paper Supply Drop-in easy paper loading Method Printer Mechanism Fujitsu Brand Driver Windows XP/VISTA/7/8, Linux, OPOS iOS, Android, Symbian, Windows Mobile/CE, Blackberry Interface... -
Page 6: Other Specification
2.2 Other Specification ● Paper Loading Method: drop-in easy loading ● Black Mark Location: available ● Paper End Detection: when paper is out, the MODE Indicator will constant on lighting. Meanwhile, the buzzer will ring twice ● Printing Control Command: ESC/POS compatible command set (refer to<T10 Printer Developer Manual >). -
Page 7: Paper Roll Installation
3.1.2 Paper Roll Installation 3.2 Basic function usage 3.2.1 Switch On The printer is powered on by pressing the power button one second; the power indicator is on with green color whenever the printer is on. Notice: when the battery is almost exhausted, the power indicator blinks with red color, in this case, you must charge the battery by using the adaptor. -
Page 8: Hexadecimal Printing
3.2.5 Hexadecimal Printing The function of hexadecimal printing is to print the information received from host machine by hexadecimal numbers and corresponding characters. It will be convenient to debug application. Enter hexadecimal printing: When the printer is power off, hold down the 【MODE】 button, then press the power button. -
Page 9: Printer Setting
Bluetooth2.0 standard. Power class is CLASS 2, effective communication distance is 10meters. The initial name of the printer is SP-RMT10 Bluetooth Printer, the initial password is ‘1234’. Users can change the printer name and password by using< TIII/T10 Setting Tools> software. Please see the details in help file of <... -
Page 10: Indicator And Buzzer
Notice: If user doesn’t change the device name, during pairing, pls do not switch on other printers, otherwise, it will be difficult to identify which printer is paired successfully. 3.5 Indicator and Buzzer There are three indicators - 【MODE】、【FEED】and power indicator. 【MODE】 and 【FEED】 indicators are green and power indicator is red or green. -
Page 11: Description Of Black Mark Pre-Print
4.2 Description of Black Mark Pre-print If user use pre-print black mark to locate the receipt, please be sure to abide by the following black mark pre-print regulation when print the black mark paper, otherwise, it will cause that the printer can not identify the black mark. -
Page 12: Appendix
Appendix The appendix is usage method to set printer parameters: Setting instruction: Choose setting item through 【MODE】button. Press【MODE】button once, the setting item will go to the next. item and print the current numberable value of this item. Choose the setting numberable value of setting item through 【FEED】button. Press 【FEED】button once, the setting value will go to the next. -
Page 13: Fcc Statement
Black mark mode： FEED FEED Black mark position： FEED Right Left FEED FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
