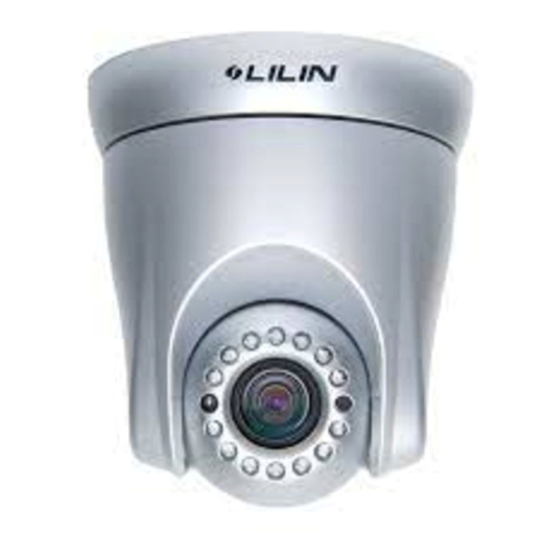

- Page 1 SUPER HI-RES. FAST DOME CAMERA SP2034/2038/2124/2128 Series SUPER HI-RES. FAST DOME IP CAMERA IPS2034/2038/2124/2128 Series INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Pages Preface Features Warnings & Cautions Structural Element Fast Dome Camera Set Up RS-485 Protocol Switch Setting Fast Dome ID Address Setting Refer Chart Fast Dome Connection Jack and Cable Requirement Installation Indoor Installation Structural Drawing Attached Mounting (Fixed Ceiling) Wall Mounting (Fixed Bracket) IP Camera System Configuration... - Page 3 Display the Camera Setting Menu Auto Focus Setting Auto Iris Setting Zoom Speed Setting Focus Speed Setting Advanced Setting Exposure Mode Setting Backlight Compensation Setting White Balance Setting Auto Gain Control Setting Day/Night Control Setting Image Setting Gamma Setting Pedestal Setting Aperture Gain Setting Mirror Setting Pan/Tilt Setting Menu...
-
Page 4: Preface
Control, Auto Iris Control, Day & Night Control, Infrared LED Control ... Etc. LILIN's Fast Dome series measure only 135mm in diameter and is capable of making 360 degrees continuous rotation with a speed range of 0.5 to 120 degrees per second, ensures direct and accurate target positioning. -
Page 5: Features
FEATURES 2.6X Auto Focus Zoom Lens(SP2034/2038&IPS2034/2038) Build-in 2.6X optical zoom lens with focal length 2.8 ~ 7.3mm 12X Auto Focus Zoom Lens (SP2124/2128&IPS2124/2128) Build-in 12X optical zoom lens with focal length 3.8 ~ 45.6mm 540 Horizontal TV lines Automatic Iris Control (2.6X Lens), Automatic / Manual Iris Control (12X Lens) Preset ID / Name Private Mask 360 continuous rotation... -
Page 6: Warnings & Cautions
WARNINGS & CAUTIONS Please read the manual before attempting installation or operation 1. Please be aware to the warnings and cautions notice. 2. Don't use any chemical detergent to clean the machine surface, use a damp cotton cloth only. Regularly clean the dome cover to assure proper focus ability. 3. -
Page 7: Structural Element
STRUCTURAL ELEMENT [IPS2034/2038/2124/2128] Camera Body Camera Case Bottom Chassis Power In DC Jack (DC12V In DC Jack) RS-485 In/Out Terminal Video Out BNC Jack Audio In/Out Jack [IPS2034/2038/2124/2128] RJ45 Jack [IPS2034/2038/2124/2128] LED Status [IPS2034/2038/2124/2128]... -
Page 8: Fast Dome Camera Set Up
FAST DOME CAMERA SET UP DIP Switch Setting RS-485 Protocol Switch Camera ID Switch RS-485 Protocol Switch Setting Explanation of DIP Switch Setting : : RS-485 IN Terminal Resistor ON/OFF 1. RS-485 IN-TML RES. 2. RS-485 OUT-TML RES. : RS-485 OUT Terminal Resistor ON/OFF 3. - Page 9 MLP2 (MERIT LILIN PROTOCOL 2) VERSION MLP1 (MERIT LILIN PROTOCOL 1) VERSION Remark: LILIN MLP1 (MERIT LILIN PROTOCOL 1) is same as PIH-717 Fast Dome Protocol MLP2 (MERITLILIN PROTOCOL 2) is the new protocol for controlling fast dome cameras. The protocol contains 7 bytes which include a check- sum byte and extra control codes.
-
Page 10: Fast Dome Id Address Setting Refer Chart
Fast Dome ID Address Setting Refer Chart Fast Dome Camera can be serial linking in one system. Therefore each dome is addressing by ID switch located. When select MLP1 (MERIT LILIN PROTOCOL 1), Camera ID setting as followings:... - Page 11 When select MLP2 (MERIT LILIN PROTOCOL 2), Camera ID setting as followings:...
-
Page 14: Fast Dome Connection Jack And Cable Requirement
Fast Dome Connection Jack and Cable Requirement DC12V Power Cable RS-485 Twisted Pair Cable Video Signal Cable Signal Shield Wire CAT5 Network Cable 1. DC Input Jack DC Input: DC 12V 10% 2. RS-485 In/Out Terminal RS-485 Input (TXDI+,TXDI-) to receiver signal from keyboard, matrix, DVR or multiplexer through twisted pair cable. -
Page 15: Installation
INSTALLATION Indoor Installation Structural Drawing Attached Mounting... -
Page 16: Attached Mounting (Fixed Ceiling)
Attached Mounting (Fixed Ceiling) Step 1 Fix The Metal Clips of ceiling Put fixed metal clips on Tighten the three tapping Loose the screw of bottom Base size and screw installation position of screws into the ceiling. chassis. location. ceiling. (Don't need taking out the screw) Step 2 Setting Fast Dome Camera... -
Page 17: Wall Mounting (Fixed Bracket)
Step 4 Connection TXDI+ TXDI - TXDO+ TXDO - VIDEO OUT Connect RS-485 cable. Connect Video signal Connect DC12V of power cable. cable. (Suggest to use the ADAPTOR from the factory) Wall Mounting (Fixed Bracket) Step 1 Fix The Bracket Fixed bracket first, and Take out connecting cable Connect control cable and... -
Page 18: Ip Camera
Step 3 Setting Fast Dome Camera Take out the screw cover s Untighten the screws. Take out dome cover from Setting Fast Dome ID and on right and left side of top of dome camera. RS-485 Protocol. dome cover. Step 4 Attach the Camera and Metal Clips Connect the connecting Put on dome cover to Tighten the screws on... -
Page 19: System Configuration
SYSTEM CONFIGURATION LILIN's integrated Fast Dome Surveillance System is suitable for a wide range of surveillance applications. The system can be as single fast dome with one keyboard or encompassing as 64 domes with comprehensive matrix switching, PC control and even Digital Video Recording. - Page 20 Multiple Domes means that more than one fast dome is linked in the system. Each dome connects to next dome forming a serial linking. Each dome has an individual ID dip switch, which allows the keyboard to identify each fast dome and make command. Sometimes it is more convenient to wire a telemetry system in star configuration rather than daisy chain.
-
Page 21: Fast Dome, Matrix And Keyboard
Fast Dome, Matrix and Keyboard Matrix System is designed to process multiple video systems and video switching. Its central process unit (CPU) can manage multiple video signals simultaneously and control other linking system, such as fast dome or PIH-820 telemetry receiver. All telemetry remote control and signal transmissions are through twisted pair. -
Page 22: Fast Dome With Pc Control
9600 bps). The PC control port RS-232 is converted to RS-485 format by interface. User may use their own software (protocol) or software provided by LILIN to control the dome. In this system up to 64 fast domes can be linked. -
Page 23: Fast Dome, Dvr And Keyboard
Fast Dome, DVR and Keyboard The DVR System is an advanced digital recording product, with long recording time and easy searching features. Telemetry remote control is twisted pair for data transmission to the fast dome. Fast Dome can be controlled directly from the control panel of the DVR, or from keyboard. Each DVR (Digital Video Recorder) can manage 16 video signals and via RS-485 ot daisy connection 16 sets of fast dome camera. -
Page 24: Fast Dome Ip Camera With Pc Control
Fast Dome IP Camera with PC Control The Fast Dome IP Camera can be connected via RJ-45 cable that provides both Internet and/or Intranet access. Multiple Fast Dome IP Cameras can be connected with in a Hub or multiple Hubs. Please consult your network administrator for network architecture and software settings. -
Page 25: Operation
OPERATION Initial Power Up Inspection After the power is first applied to a dome it will perform a self-test procedure. This calibrates and checks the basic functions of the dome, control is not possible during this self-test period. Once the camera has stopped moving, it will then be ready to control. If preset positions and tours have been programmed into a dome and the power is turned off, the dome will enter the Auto Scan mode once the power is turned on again (after self-test period). -
Page 26: Fast Dome Selection
Fast Dome Selection To call out a dome controlling or setting To select 1st Fast Dome CAM ESC CAM SETUP 180 REV LENS SPEED AUTO SPRAY AUX LIGHT CTRL1 CTRL2 WIPER POWER Push key 1 followed by CAM key. ALARM SETUP RESET ZOOM... -
Page 27: Iris Control
Iris Control The purpose of iris control is to adjust brightness on target. It can be set as Auto Iris or Manual Iris. (12X) Iris Open Push IRIS O key, to open the iris and brighten the picture. Iris will stop when the key is released. CAM ESC CAM SETUP 180 REV... - Page 28 Joystick Control Move the Joystick to bring the camera to the desired view position. Adjusting Lens ZOOM IN / OUT, FOCUS NEAR / FAR / AUTO and IRIS O / C / AUTO keys. When set up preset point, using manual focus will CAM ESC CAM SETUP 180 REV...
-
Page 29: Recalling Preset Positions
Recalling Preset Positions Once the required preset positions have been stored in a dome, they may be quickly recalled, returning the dome to exact position. To recall 1st Preset Position: Push key 1 followed by PRESET key. The dome will move to that position in speed of 360 /sec. Ex. -
Page 30: Activating Auto Pan
Activating Auto Pan When the Auto Pan function is activated, the fast dome will auto touring the preset groups entered. To activate Auto Pan: Push AUTO PAN key, confirming the activation of CAM ESC CAM SETUP 180 REV LENS SPEED AUTO SPRAY AUX LIGHT... -
Page 31: Setup Menu Tree
SETUP MENU TREE SETUP MENU LANGUAGE DISPLAY SETUP PRESET ID ZOOM RATIO DATE/TIME TIME DATE DATE FORMAT PAN/TILT ANGLE AREA TITLE DOME SETTINGS CAMERA AUTO FOCUS (12X) AUTO IRIS LEVEL ZOOM SPEED FOCUS SPEED (12X) ADVANCED SETTING EXPOSURE MODE AUTO MANUAL BACKLIGHT BLC GAIN ADJ. - Page 32 TOURS NUMBER EDIT TOUR CLEAR ABOVE NUMBER DWELL TIME SPEED PRIVACY NUMBER ZONES EDIT ZONE CLEAR PASSWORD ENABLE PASSWORD EDIT PASSWORD FACTORY INITIAL CAMERA SCHEDULE SETUP DAY/NIGHT DAY NIGHT NIGHT DAY STARTUP AUTO 1. HH : MM OPTIONS 2. HH : MM 3.
-
Page 33: Fast Dome Camera Function Setup
Setup Menu. CTRL 1 CAM SETUP Press key to exit setup menu or push joystick down to select <EXIT>, and then press CTRL 1 key to exit setup menu. MERIT LILIN FAST DOME NOTE ENGLISH Enter Exit LANGUAGE Buttons Description <DISPLAY SETUP>... -
Page 34: Display System Information
2. Camera, Pan/Tilt, Receiver version 3. Font of OSD version 4. Protocol rate and format 5. Fast dome ID number 6. Protocol version, LILIN717 (LILIN MLP1), LILIN MLP2 Display Character Setup Menu 1. Display Character Setup Menu CAM SETUP Press key into Setup Menu. - Page 35 3. Zoom Ratio Setting Push joystick down to select <ZOOM RATIO>, and then push joystick left or right to make selection: OFF : No Zoom Ratio on the monitor screen. 1~255 sec : Display elapsed time. Zoom Ratio will have been displayed on the monitor screen until elapsed time stops, when Zoom Ratio is operated.
- Page 36 6. Area Title Setting The area title function lets you display a direction indicator that appears in the picture to indicate the direction of the location being shown on the screen. Text can also be displayed in the place of the direction indicators, if desired.
- Page 37 (1) New Area Title Editing CAM SETUP Push joystick down to select character, and press key to confirm. The character CTRL 1 selected will be showed in edit area. If you need space, push joystick down to select CAM SETUP <SPACE>...
-
Page 38: Display Dome Function Setup Menu
Press key into Setup Menu. CTRL 1 CAM SETUP Push joystick down to select <DOME SETTINGS>, and then press key into dome setting CTRL 1 menu. MERIT LILIN FAST DOME DOME SETTING LANGUAGE ENGLISH <CAMERA> <DISPLAY SETUP> <PAN/TILT> <DOME SETTINGS>... -
Page 39: Auto Iris Setting
(4) Focus Speed Setting Push joystick down to select <FOCUS SPEED>, and then push joystick left or right to adjust focus speed setting. Focus speed ranges are 1 ~ 15. 2. Advanced Setting After getting in camera setting menu, push joystick down to select <ADVANCED SETTING>, and CAM SETUP then press key into advanced setting. -
Page 40: Backlight Compensation Setting
(2) Backlight Compensation Setting BLC GAIN ADJUSTMENT Push joystick down to select <BACKLIGHT>, and then push GAIN joystick left or right to select "ON" or "OFF". ON : The brightness gain is automatically controlled for backlight compensation in response to the light intensity detection window. -
Page 41: Image Setting
CAM SETUP When selection is "AUTO", press key into DAY/NIGHT AUTO CTRL 1 SENSITIVITY DAY/NIGHT AUTO setting menu. Push joystick down to select <SENSITIVITY>, and then push joystick left or right to select sensitivity steps. (1 ~ 15) BACK EXIT SCHED. -
Page 42: Home Position Setting
PAN/TILT HOME POSITION SELF RETURN TIME SELF RETURN MODE AUTO MODE SEQ. BACK EXIT 2. Home Position Setting Push joystick down to select <HOME POSITION>, and then push joystick left or right to select home position. OFF: NO action. 1 ~ 128: Home positions are preset position from fast dome. Note: When keyboard control isn't used, "Return Mode"... -
Page 43: Auto Scan Mode Setting
OFF: NO action. AUTO: Perform auto scan mode. SEQ.: Perform preset group mode. TOUR1: Perform tour1 list mode. TOUR2: Perform tour2 list mode AUTO Note: Press key on the keyboard to perform Auto mode function. 6. Auto Scan Mode Setting Push joystick down to select <AUTO MODE>... - Page 44 PRESETS PRESET NUMBER <PRESET MAP> <EDIT POSITION> <EDIT ID> DWELL TIME 3 sec SPEED 120 deg/sec CLR PRESET ABOVE NUM. BACK EXIT 2. Select Preset Numbers (1) Select number by PRESET NUMBER Push joystick down to select <PRESET NUMBER>, and then push joystick left or right to select preset number.
- Page 45 (1) New Preset ID Editing CAM SETUP Push joystick down to select character, and press key to confirm. The character CTRL 1 selected will be showed in edit area. If you need space, push joystick down to select CAM SETUP <SPACE>...
-
Page 46: Tour Function Setting Menu
6. Speed Setting Push joystick down to select <SPEED>, and then push joystick left or right to select speed of preset. (1 ~ 120 deg/sec) Note: Only preset No.1~16 can set speed, because group of auto pan can only edit preset No. 1~16. -
Page 47: Privacy Zones Setting Menu
4. Cancel Tour CAM SETUP Push joystick down to select <CLEAR ABOVE NUMBER>, and then press key to cancel CTRL 1 tour. 5. Dwell Time Setting Push joystick down to select <DWELL TIME>, and then push joystick left or right to select dwell time of tour. -
Page 48: Password Function Menu
EDIT PRIVACY ZONE MASK EDIT PRIVACY ZONE MASK EDIT POSITION EDIT SCALE PRESS CONFIRM RETURN PRESS CONFIRM RETURN 4. Cancel Privacy Zone Mask Push joystick down to select <CLEAR>, and then push joystick left or right to select <ABOVE CAM SETUP NUM.>... -
Page 49: Restore Factory Defaults
4. Modify Password To modify password after editing password completed, please get in <EDIT PASSWORD> again to edit. If password function is ON, previous passwords have to enter on the setting menu first, and then do modifying password. 5. Input Password CAM SETUP After password function is ON, press key to display frame of input password on the screen. -
Page 50: Schedule Setup Menu
CTRL 1 CAM SETUP Push joystick down to select <SCHEDULE SETUP>, and then press key into schedule CTRL 1 setting. MERIT LILIN FAST DOME SCHEDULE SETUP ENGLISH LANGUAGE <DAY/NIGHT> <DISPLAY SETUP> <STARTUP AUTO OPTIONS> <DOME SETTINGS>... -
Page 51: Startup Auto Options Menu
CAM SETUP Push joystick down to select <NIGHT->DAY>, and then press key into time setting. CTRL 1 CAM SETUP Push joystick left or right to select time of NIGHT->DAY. Then press key again to next CTRL 1 item. CAM SETUP CAM SETUP 06 : 00 06 : 00... -
Page 52: Daylight Saving Time Menu
Example: 1. 12:00, perform SEQ. Mode STARTUP AUTO OPTIONS 2. 13:00, STOP (If "self return mode" is home, "home position 1. 12:00 SEQ. setting" is 1, and "self return time" is 10 min, camera 2. 13:00 STOP 3. 20:00 TOUR1 will be performed "self return mode"... -
Page 53: Specification
SPECIFICATION Operational Manual Pan / Tilt Speed 0.5 ~ 90 /sec (8 stages) Preset Position Pan / Tilt Speed 1 ~ 120 /sec Preset Position Dwell Time 1 ~ 255 sec Recall Preset Position Pan / Tilt Speed 120 /sec 180 Instant Flip Rotation Speed 120 /sec Pan Rotation... -
Page 54: Optical Lens
Optical Lens 2.6X Optical Lens f = 2.8 ~ 7.3mm Focal Length F1.9 (wide) ~ F3.1 (telephoto) Aperture Max Angle of View Wide: 92.2 (D) 73.4 (H) 54.7 (V) Tele : 35.8 (D) 28.7 (H) 21.6 (V) Focus Control Pan-Focus Zoom Iris Control Auto Zoom In / Out... -
Page 55: Appendix A Quick Reference Table
APPENDIX A Quick Reference Table Function Operation To Tilt Up Push Joystick Forward To Tilt Down Push Joystick Down Pan / Tilt Control To Pan Left Push Joystick Left Push Joystick Right To Pan Right Dome Selection Numeric Key + CAM Zoom In ZOOM IN Zoom Out... -
Page 56: Appendix B Trouble Shooting
APPENDIX B Trouble Shooting 1. No Power 1-1. Check power input connection 1-2. Check cable connection on camera bottom chassis 2. No Video 2-1. Check camera video output on camera 2-2. Check cable (damaged cable) 2-3. Check video input connection on monitor 2-4. -
Page 57: Appendix C Preset Id Characters Table
APPENDIX C Preset ID Characters Table Page 1 " < > Page 2 66-SP203CSE-2... - Page 58 MERIT LILIN ENT. CO., LTD http://www.meritlilin.com 66-SP203CSE...
