Figure 7-11. Pvin=12 V, Vout=3.3 V, Fsw=500 Khz: Transient Response To Current Step From 6 A To 2 A At 1 A/Us; Figure 7-12. Pvin=12 V, Vout=3.3 V, Iout= 6 A, Fsw=500 Khz: Output Voltage Ripple - Texas Instruments TPS7H4010EVM User Manual

www.ti.com TPS7H4010EVM Test Data

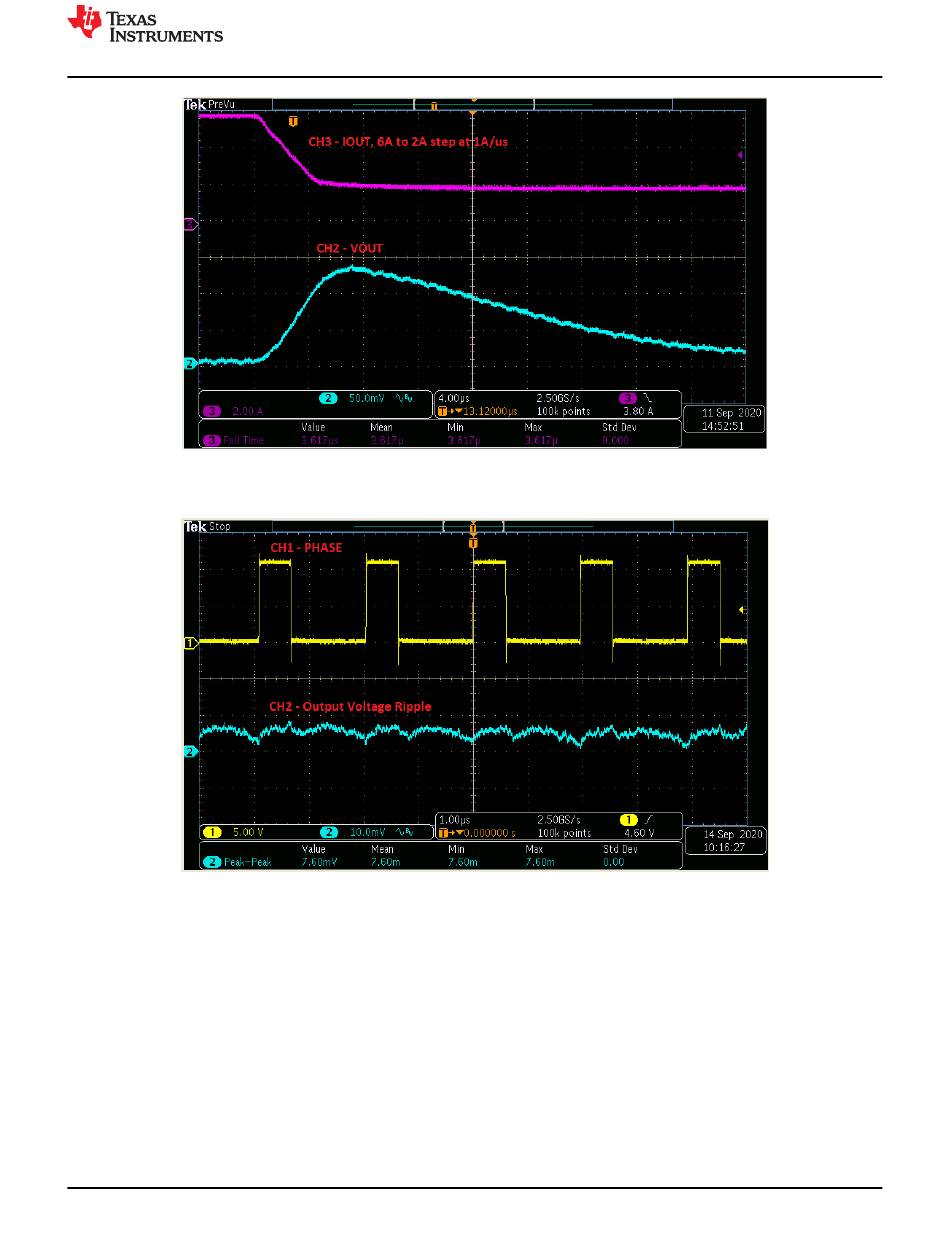

Figure 7-11. PVIN=12 V, VOUT=3.3 V, FSW=500 kHz: Transient Response to current step from 6 A to 2 A
at 1 A/us

Figure 7-12. PVIN=12 V, VOUT=3.3 V, IOUT= 6 A, FSW=500 kHz: Output Voltage Ripple
