www.ti.com

EVM User's Guide: TPS7H4011QEVM-CVAL

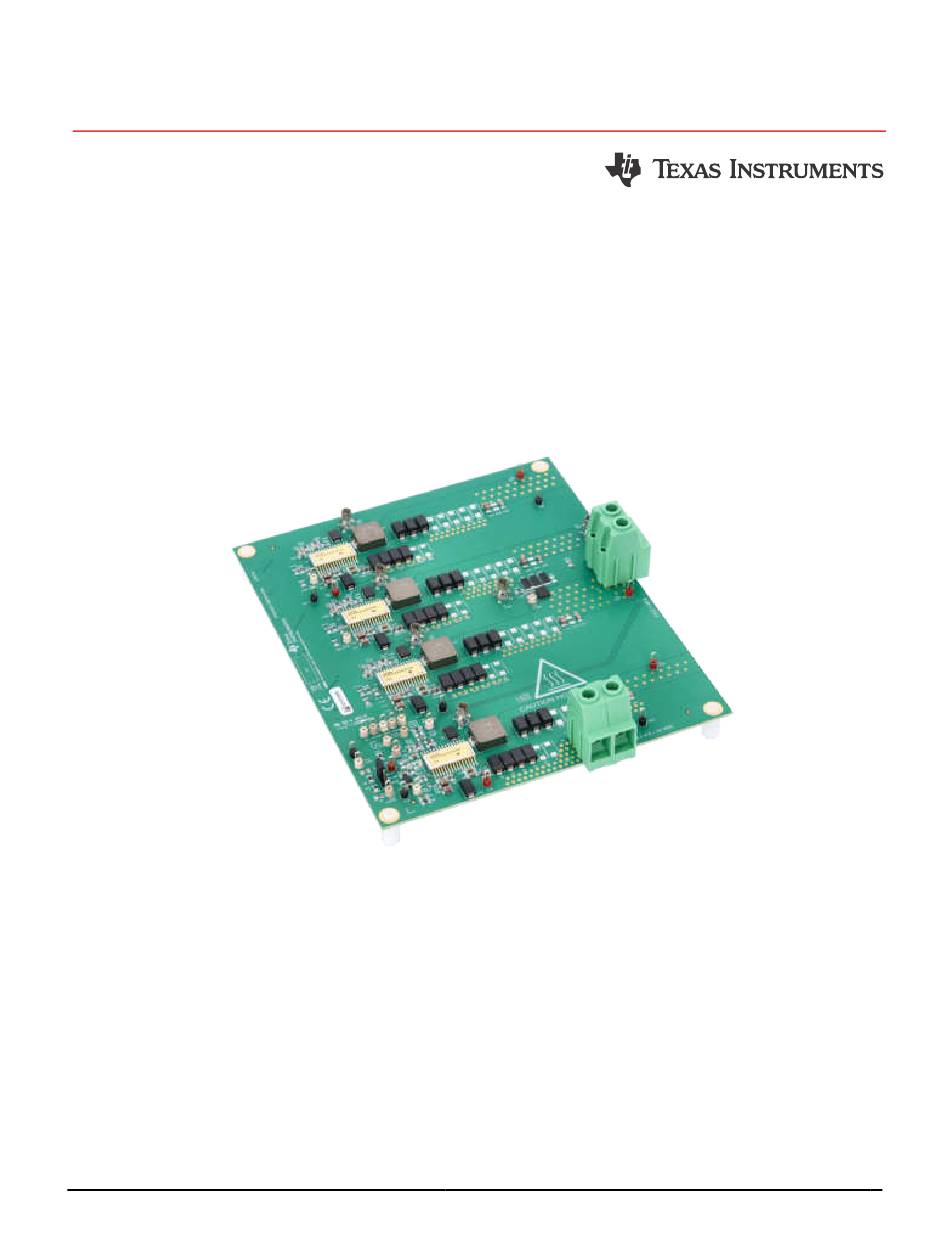

TPS7H4011QEVM-CVAL Evaluation Module

Description

The

TPS7H4011QEVM-CVAL

parallel, quadrature phase operation of four

TPS7H4011-SP

buck converters (ceramic package).

The EVM provides footprints that can be populated

with additional components to allow for testing of

customized configurations, as well as test points for

easy device configuration, performance validation,

and analysis.

SLVUD11 – MARCH 2025

Submit Document Feedback

demonstrates the

TPS7H4011QEVM-CVAL

Features

•

Four-channel operation for up to 48A output

current

•

Input voltage range from 4.5V to 14V

•

Selectable switching frequency

•

High-current transient test circuit

•

0.6V ±0.67% voltage reference over line,

temperature, and radiation

TPS7H4011QEVM-CVAL Evaluation Module

Description

Need help?

Do you have a question about the TPS7H4011QEVM-CVAL and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS7H4011QEVM-CVAL

Page 1 • 0.6V ±0.67% voltage reference over line, easy device configuration, performance validation, temperature, and radiation and analysis. TPS7H4011QEVM-CVAL SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 2 1 Evaluation Module Overview 1.1 Introduction The TPS7H4011QEVM-CVAL is the four channel version of the Evaluation Module (EVM) for the ceramic package option of the TPS7H4011 and provides a platform to evaluate multi-channel performance. The four- channel configuration provided by this EVM can source up to 48A of load current to a single output. This user’s guide provides details about the EVM, including the configuration, schematics, and BOM.
Page 3 Further information about the TPS7H4011-SP can be found in the TPS7H4011-SP and TPS7H4011-SEP 4.5V to 14V Input 12A Radiation Hardened Synchronous Buck Converter data sheet. SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 4 SP devices, the chip resistors are each rated for only 2W. When utilizing the transient circuit on the TPS7H4011QEVM-CVAL, the signal sent to the MOSFET gate through TP20 (TRANS) can be modulated to keep the average power through the load resistors below the 2W rating.
Page 5 Some components can reach high temperatures > 55°C when the board is powered on. Do not touch the board at any point during operation or immediately after operating, as high temperatures can be present. SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 6 Positive and Negative Load Steps Loop Frequency Response Board Efficiency Current Sharing Equality 3.1 Evaluation Setup The following tests were performed using the TPS7H4011QEVM-CVAL in the default configuration found in Table 3-1 unless otherwise noted. Table 3-1. Test Settings SPECIFICATION...
Page 7 Implementation Results 3.3 Output Voltage Ripple Figure 3-2. Output Voltage Ripple 3.4 Soft Start Figure 3-3. Soft Start SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 8 3.5 Load Steps Figure 3-4. Transient Response to Load Step 500mA to 24A Figure 3-5. Transient Response to Load Step 24A to 500mA TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 9 3.6 Bode Plot -120 Gain (dB) -160 Phase (degrees) -100 -200 1,000 10,000 100,000 1,000,000 Frequency (Hz) Figure 3-6. Frequency Response IOUT = 24A SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 10 Output Current (A) Figure 3-7. Efficiency FSW = 500kHz = 4.5V = 5V = 12V = 14V Output Current (A) Figure 3-8. Efficiency FSW = 200kHz TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 11 9.88 9.41 9.54 9.53 3.09% -1.91% -0.63% -0.55% 42.75 10.69 11.02 10.48 10.62 10.63 3.17% -2.06% -0.72% -0.38% 46.94 11.74 12.11 11.49 11.65 11.69 SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 12 4.99k VSNS+ VSNS+_S FB/NC Net-Tie VSNS- 120m 120m 120m 100nF 10µF VSNS- VSNS-_S Net-Tie 3.3µF Thermal_pad PWRGD PWRGD_S TPS7B8450QWDRBRQ1 Net-Tie Figure 4-1. EVM Schematic TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 13 C117 C118 C119 C120 C121 C122 C123 C124 C125 C126 330uF 330uF 330uF 330uF 330uF 330uF 330uF 330uF 22µF 22µF Figure 4-2. EVM Schematic SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 14 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 330uF 330uF 330uF 330uF 330uF 330uF 330uF 330uF 22µF 22µF Figure 4-3. EVM Schematic TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 15 C317 C318 C319 C320 C321 C322 C323 C324 C325 C326 330uF 330uF 330uF 330uF 330uF 330uF 330uF 330uF 22µF 22µF Figure 4-4. EVM Schematic SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 16 Hardware Design Files www.ti.com 4.2 PCB Layouts Figure 4-5. Top Overlay TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 18 Hardware Design Files www.ti.com Figure 4-7. Layer 1 (Top View) TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 26 Hardware Design Files www.ti.com Figure 4-15. Solder Mask (Bottom View) TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 28 Hardware Design Files www.ti.com 4.3 Bill of Materials (BOM) Table 4-1 lists the bill of materials for TPS7H4011QEVM-CVAL. Table 4-1. Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer C3, C4, C5, C6, C11, C103, C104, C105, C106, C111,...
Page 29 49.9 RES, 49.9, 0.1%, 0.125 W, 0805 0805 RT0805BRD0749R9L Yageo America 4.99k RES, 4.99 k, 0.1%, 0.125 W, 0805 0805 RG2012P-4991-B-T5 Susumu Co Ltd SLVUD11 – MARCH 2025 TPS7H4011QEVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 30 U1, U2, U3, U4 CFP30 TPS7H4011HLB/EM Texas Instruments Synchronous Buck Converter Linear Voltage Regulator IC Positive Fixed 1 VSON8 TPS7B8450QWDRBRQ1 Texas Instruments Output 150mA 8-SON (3x3) TPS7H4011QEVM-CVAL Evaluation Module SLVUD11 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
Page 31 Compliance Information 5 Compliance Information 5.1 Compliance and Certifications • Texas Instruments, TPS7H4011QEVM-CVAL EU RoHS Declaration of Conformity (DoC) 6 Additional Information 6.1 Trademarks All trademarks are the property of their respective owners. 7 Related Documentation 7.1 Supplemental Content •...
