User's Guide
TPS7H4002EVM-CVAL Evaluation Module
The TPS7H4002EVM-CVAL is the evaluation module (EVM) for the TPS7H4002-SP and provides a platform to
electrically evaluate its features. This user's guide provides details about the EVM, its configuration, schematics,
and BOM.
Overview...........................................................................................................................................3
2 TPS7H4002EVM-CVAL Default Configuration......................................................................................................................
3 TPS7H4002EVM-CVAL Initial Setup......................................................................................................................................
4 TPS7H4002EVM-CVAL Testing..............................................................................................................................................
5 TPS7H4002EVM-CVAL EVM Schematic..............................................................................................................................
6 TPS7H4002EVM-CVAL Bill of Materials (BOM)..................................................................................................................
Layout.........................................................................................................................................................................18
TPS7H4002EVM-CVAL.............................................................................................................................................1
Figure 4-1. Output Voltage Regulation........................................................................................................................................
Figure 4-2. Output Voltage Ripple VIN = 5 V, VOUT = 2.5 V, IOUT = 3 A...................................................................................
Figure 4-3. Output Soft Start Voltage, VIN = 5 V, VOUT = 2.5 V, IOUT = 3 A.............................................................................
Figure 4-4. Transient Response to Load Step 0 A to 3 A at 1 A/µs.............................................................................................
Figure 4-5. Transient Response to Load Step 3 A to 0 A at 1 A/µs.............................................................................................
Figure 4-8. Frequency Response Test Setup............................................................................................................................
Figure 4-9. Frequency Response IOUT = 3 A...........................................................................................................................
SLVUBI1 - MAY 2021
Submit Document Feedback
ABSTRACT

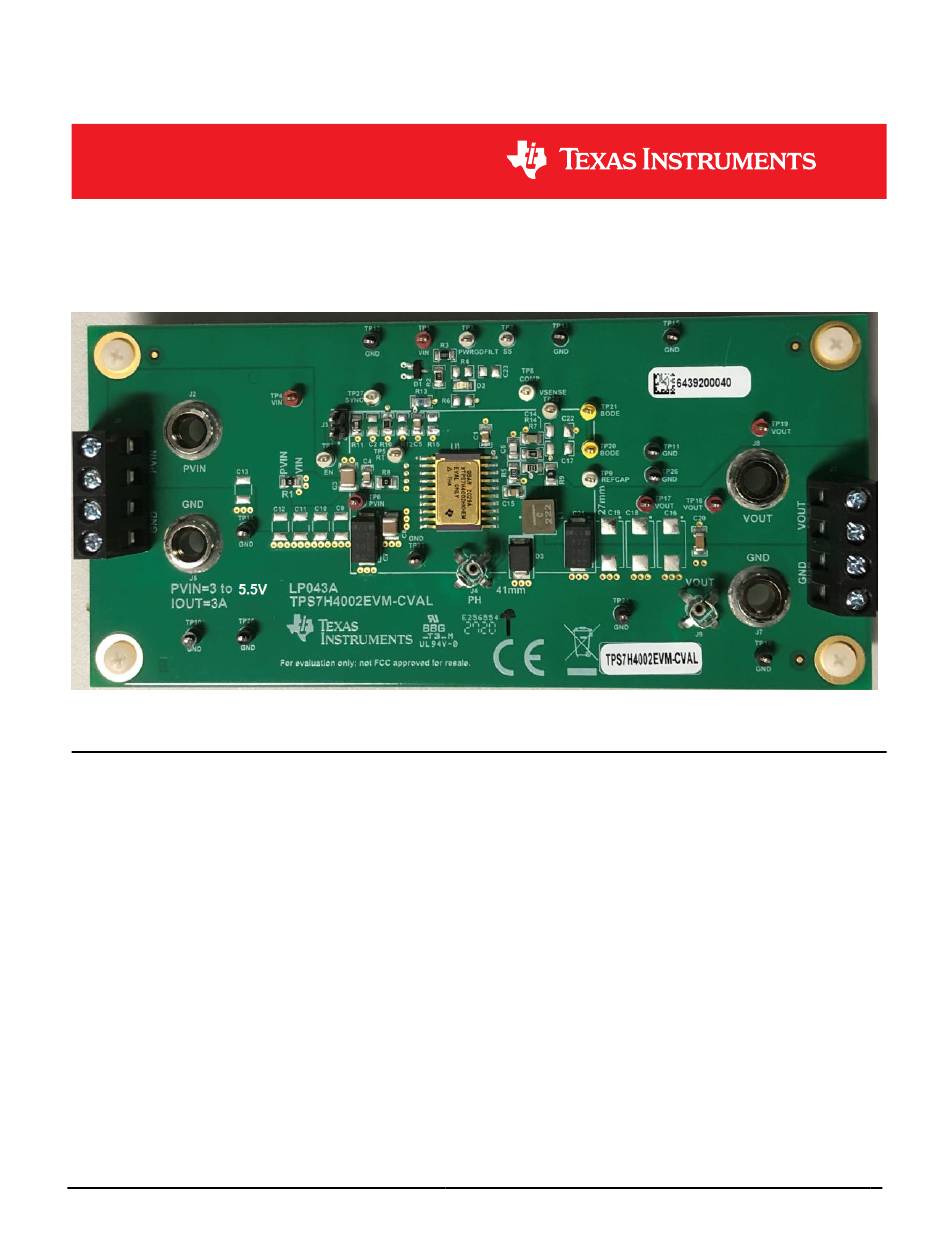

Figure 1-1. TPS7H4002EVM-CVAL

Table of Contents

List of Figures
A...................................................................................10
Response...............................................................................................11
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
TPS7H4002EVM-CVAL Evaluation Module
3
4
5
15
16
5
6
7
8
9
12
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS7H4002EVM-CVAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS7H4002EVM-CVAL

  • Page 1: Table Of Contents

    User’s Guide TPS7H4002EVM-CVAL Evaluation Module ABSTRACT The TPS7H4002EVM-CVAL is the evaluation module (EVM) for the TPS7H4002-SP and provides a platform to electrically evaluate its features. This user's guide provides details about the EVM, its configuration, schematics, and BOM. Figure 1-1. TPS7H4002EVM-CVAL...
  • Page 2 Figure 7-11. Board Dimensions..............................List of Tables Table 2-1. Default EVM Configuration............................Table 3-1. Summary of Connections............................4 Table 6-1. TPS7H4002EVM-CVAL Bill of Materials (BOM)....................... Trademarks All trademarks are the property of their respective owners. TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright ©...
  • Page 3: Tps7H4002Evm-Cval Overview

    • Space satellite payloads • Radiation hardened applications 2 TPS7H4002EVM-CVAL Default Configuration Table 2-1 describes the default configuration of the TPS7H4002EVM-CVAL listing the external components that define the converter design. Table 2-1. Default EVM Configuration Parameter Specifications Description Input power supply...
  • Page 4: Tps7H4002Evm-Cval Initial Setup

    VOUT scope probe test point (Scope CH-2) TP17 VOUT VOUT test point (e-load monitor) PVIN PVIN test point (Vsupply_sense) TP18, TP23 GND test points ( e-load monitor, Vsupply_sense) TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 5: Tps7H4002Evm-Cval Testing

    3-A maximum. The monitored output voltage at TP17 (VOUT) is at or near 2.5 V across the entire current load sweep as shown in Figure 4-1. Figure 4-1. Output Voltage Regulation SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 6: Figure 4-2. Output Voltage Ripple Vin = 5 V, Vout = 2.5 V, Iout = 3 A

    Figure 4-2. Figure 4-2. Output Voltage Ripple VIN = 5 V, VOUT = 2.5 V, IOUT = 3 A TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 7: Figure 4-3. Output Soft Start Voltage, Vin = 5 V, Vout = 2.5 V, Iout = 3 A

    Figure 4-3. Figure 4-3. Output Soft Start Voltage, VIN = 5 V, VOUT = 2.5 V, IOUT = 3 A SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 8: Figure 4-4. Transient Response To Load Step 0 A To 3 A At 1 A/Μs

    Change the trigger on CH3 to falling edge to capture the transient response of VOUT to negative current step from 3 A to 0 A as shown in Figure 4-5. Again, transient deviation is approximately 50 mV, ignoring peak envelope, or 2%. TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 9: Figure 4-5. Transient Response To Load Step 3 A To 0 A At 1 A/Μs

    TPS7H4002EVM-CVAL Testing Figure 4-5. Transient Response to Load Step 3 A to 0 A at 1 A/µs SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 10: Figure 4-6. Input Voltage Ripple, Vin = 5 V, Vout = 2.5 V, Iout

    4-6, the voltage ripple (ignoring the switching coupling to the input) is approximately 50 mV. Figure 4-6. Input Voltage Ripple, VIN = 5 V, VOUT = 2.5 V, IOUT = 3 A TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 11: Figure 4-7. Evm Modification To Measure Frequency

    SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 12: Figure 4-8. Frequency Response Test Setup

    TPS7H4002EVM-CVAL Testing www.ti.com Figure 4-8. Frequency Response Test Setup Figure 4-9. Frequency Response IOUT = 3 A TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 13: Figure 4-10. Frequency Response Iout = 0 A

    TPS7H4002EVM-CVAL Testing Figure 4-10. Frequency Response IOUT = 0 A SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 14: Figure 4-11. High-Side Current Limiting

    Once the fault is removed, and, only after the soft start pin re-establishes a voltage level equal to the VSENSE pin (VOUT), does the device start switching again. Figure 4-11. High-Side Current Limiting TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 15: Tps7H4002Evm-Cval Evm Schematic

    TPS7H4002EVM-CVAL EVM Schematic 5 TPS7H4002EVM-CVAL EVM Schematic Figure 5-1 shows the EVM schematic. Figure 5-1. TPS7H4002EVM-CVAL EVM Schematic SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 16: Tps7H4002Evm-Cval Bill Of Materials (Bom)

    TPS7H4002EVM-CVAL EVM Schematic www.ti.com 6 TPS7H4002EVM-CVAL Bill of Materials (BOM) Table 6-1 displays the EVM BOM. Table 6-1. TPS7H4002EVM-CVAL Bill of Materials (BOM) Designator Value Description Package Reference Part Number Manufacturer !PCB1 Printed Circuit Board LP043 0.01uF CAP, CERM, 0.01 uF, 50 V, ±10%, X7R, 0805...
  • Page 17 TPS7H4002EVM-CVAL EVM Schematic Table 6-1. TPS7H4002EVM-CVAL Bill of Materials (BOM) (continued) Designator Value Description Package Reference Part Number Manufacturer TP2, TP3, TP5, TP7, Test Point, Miniature, White, TH White Miniature Testpoint 5002 Keystone TP9, TP22, TP27 TP10, TP11, TP12,...
  • Page 18: Board Layout

    Board Layout www.ti.com 7 Board Layout Figure 7-1 through Figure 7-11 illustrate the layer stack of the TPS7H4002EVM-CVAL board. Figure 7-1. Top Overlay Figure 7-2. Top Solder TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 19: Figure 7-3. Layer 1 -Top Layer

    Board Layout Figure 7-3. Layer 1 -Top Layer Figure 7-4. Layer 2- GND SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 20: Figure 7-5. Layer Three - Signal

    Board Layout www.ti.com Figure 7-5. Layer Three - Signal Figure 7-6. Layer Four -Bottom Layer TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 21: Figure 7-7. Bottom Solder

    Board Layout Figure 7-7. Bottom Solder Figure 7-8. Bottom Overlay SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 22: Figure 7-9. Drill Drawing

    Board Layout www.ti.com Figure 7-9. Drill Drawing Figure 7-10. Drill Table TPS7H4002EVM-CVAL Evaluation Module SLVUBI1 – MAY 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 23: Figure 7-11. Board Dimensions

    Board Layout Figure 7-11. Board Dimensions SLVUBI1 – MAY 2021 TPS7H4002EVM-CVAL Evaluation Module Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 24 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 25 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 26 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 27 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 28 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
  • Page 29 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2021, Texas Instruments Incorporated...
