Summary of Contents for Omcan MS-IT-0350-H

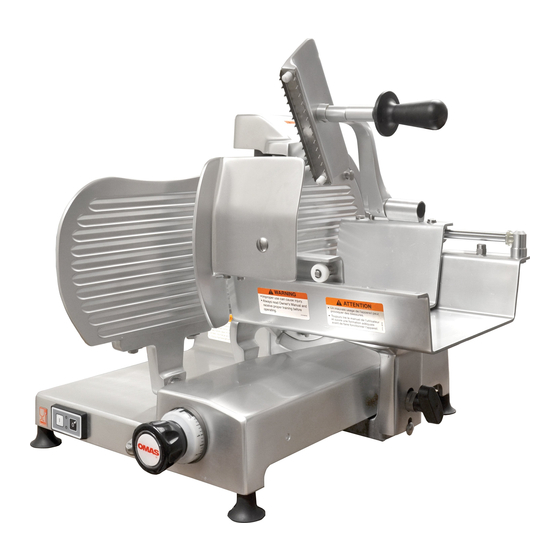

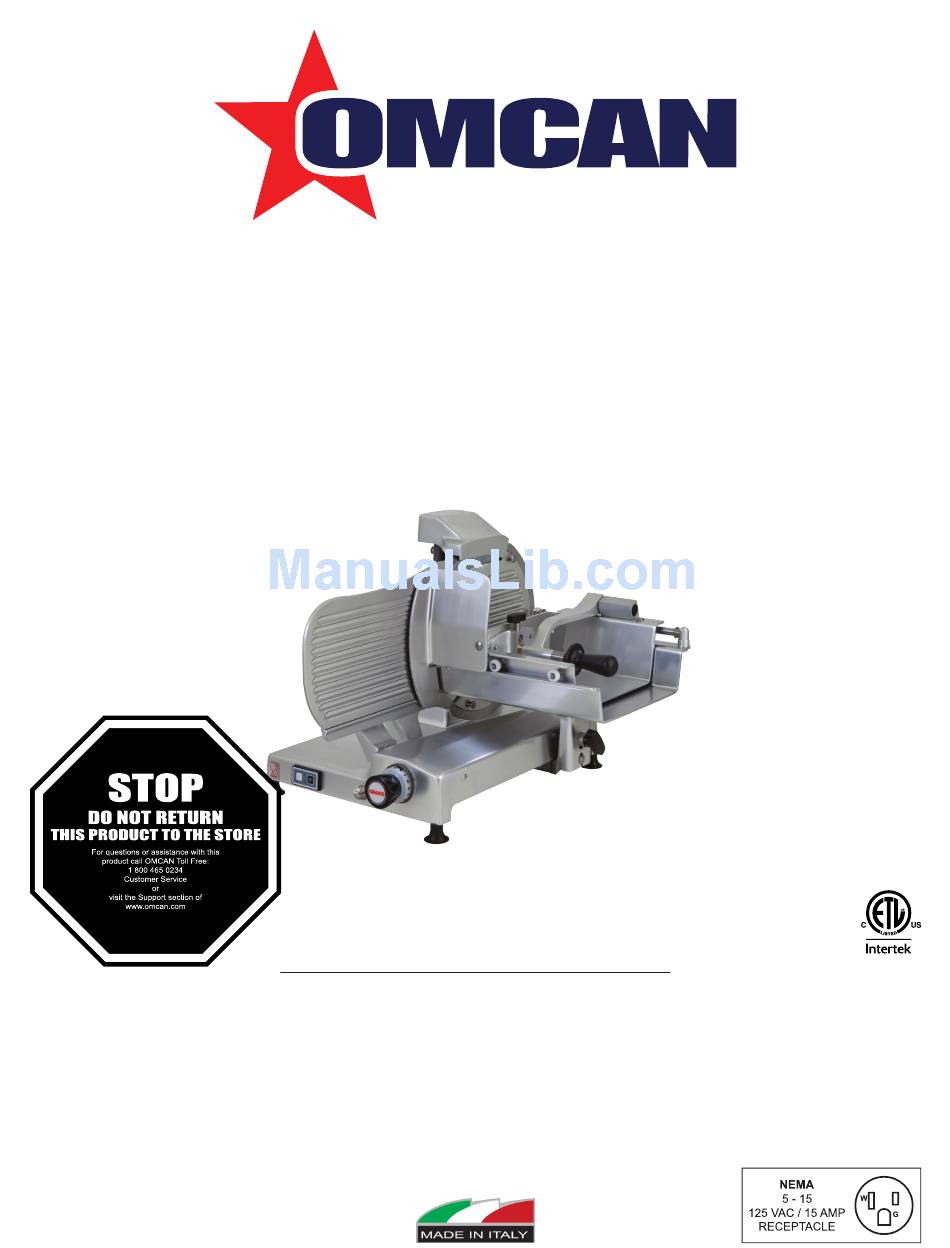

- Page 1 Gear-Driven Slicer Model MS-IT-0350-H Item 39631 Instruction Manual Revised - 08/02/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MS-IT-0350-H Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ----------------------------------------------------------------------------------- 8 - 10 Troubleshooting ----------------------------------------------------------------------------------- 11... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Do not remove the labels placed on the machine and replace them if damaged. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 6: Technical Specifications
Technical Specifications Model MS-IT-0350-H Blade Size 14” / 350mm Power 0.4 HP / 0.3 kW Cheese Slicing Slicing Volume* 8 hours or more Cutting Size 12.2” x 9.8” / 310 x 250mm Cut Thickness 0” - 1” / 0 - 25mm... -
Page 7: Installation
Installation SLICER FUNCTIONING AND USE The following products can be sliced: sausages, ham, cheese, bread. If large quantities of bread or cheese are usually cut it is advisable to mount a teflon coating. WARNING The following cannot be sliced: • Not-eatable products. -
Page 8: Maintenance
10mm less than the nominal diameter. For the replacement, ask the assistant service closest to you. WARNING The replacement of the blade is dangerous operation. Should the sharpening quality be not satisfactory, replace the stones by contacting Omcan. SHARPENING OPERATION DANGER The sharpening operation must be performed during the manual functioning. - Page 9 Maintenance MAINTENANCE All cleaning and maintenance operations must only be carried out with the machine disconnected and isolated from the mains supply and the slice thickness control on zero. CONTROL OF THE AIR GRATING An air grating for the motors ventilation is placed in the lower side of the machine. Keep the section-holes free and clean them with a brush at regular intervals.
-
Page 10: Maintenance
Maintenance BLADE COVER 1. Rotate the slice deflector and keep it away from the blade. 2. Loose the blade cover fastener handle by rotating it in a counterclockwise direction. 3. Push on the handle in the direction indicated by the arrow to lift the blade cover from the blade. 4. -
Page 11: Troubleshooting
The carriage and the last slice Lubricate the guide bars. device run with difficulty. REFERENCE Item Number Model Number Description Manufacturer Model Number Meat Slicer Gear Driven 14” / 350mm 39631 MS-IT-0350-H Blade with Fixed Ring Knife Guard H35S 0.4HP / 300W 110V/60/1 CSST... -
Page 12: Parts Breakdown
Parts Breakdown Model MS-IT-0350-H 39631... - Page 13 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 14 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 15 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 16 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 17 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 18 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 19 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 20 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 21 Parts Breakdown Model MS-IT-0350-H 39631...
- Page 22 Parts Breakdown Model MS-IT-0350-H 39631 Item No. Description Position Item No. Description Position Item No. Description Position 77583 Sharpener (Support+Stones) for H35S A1024 17312 Bushing 22x25x20 for H35S B6211 17335 Bear.2RS-6203 17x40x12 for H35S C8022 36532 Sharpener Assembly for H35S...
- Page 23 Parts Breakdown Model MS-IT-0350-H 39631 Item No. Description Position Item No. Description Position Item No. Description Position 77558 Eccentric for H35S E1471 19250 Spring 24.8x1.8x15 for H35S M7071 77511 Pin Deflector for H35S P3653 19564 Cam 25mm for H35S E1474 36746 Spring 7x0.8x23 Cam for H35S...
- Page 24 Parts Breakdown Model MS-IT-0350-H 39631 Item No. Description Position Item No. Description Position Item No. Description Position 36889 Washer 10.5x16x1 for H35S R6816 77571 Lock Pin Pusher Arm for H35S S7623 37018 Screw STTC U6113 M6x6 for H35S V6010 16969 Washer 18.2x25x0.5 for H35S...
-
Page 25: Parts Breakdown
Parts Breakdown Model MS-IT-0350-H 39631 Item No. Description Position Item No. Description Position Item No. Description Position Stainless Steel Screw TCEI U5931 37095 Screw for Rod 6x13 for H35S V7993A 77581 Special Screw M10x18 for H35S V8103 77545 V633115 M8x45 for H35S... -
Page 26: Electrical Schematics
Electrical Schematics Model MS-IT-0350-H 39631 Position Description Position Description Position Description Spina Capacitor 220uF Power Relay Transformer Capacitor 100uF Power Relay Fuse 500mA Capacitor 20uF Command Relay Straightener 1A Resistance 1k Command Relay Protective Diode Resistance 1k Stop Button LED Orange Line... -
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
