INSTALLATION & OPERATION
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au

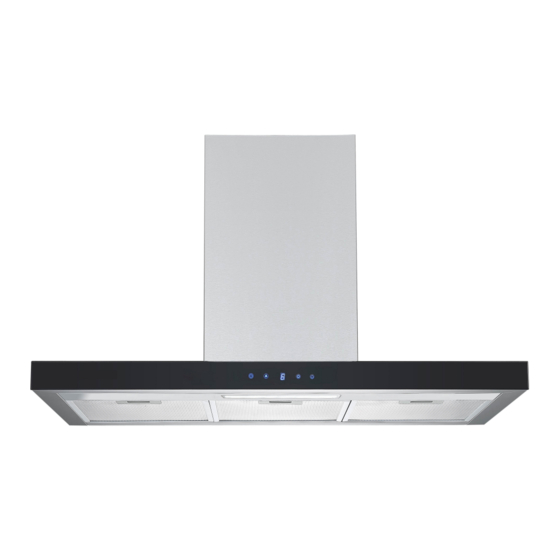

Model: BDRA603TBX2 FN510296, BDRA903TBX2 FN0186584 60cm/90cm Black Fascia Canopy Range hood
INSTRUCTIONS
60cm/90cm Black Fascia Canopy
Range hood Model No.
BDRA603TBX2
FINELINE: 0229596
BDRA603TBX2-F
BDRA903TBX2
FINELINE: 186584
BDRA903TBX2-F
FINELINE: 0220236
FINELINE: 0220233
V.4 Oct 20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini 0229596
Summary of Contents for Bellini 0229596

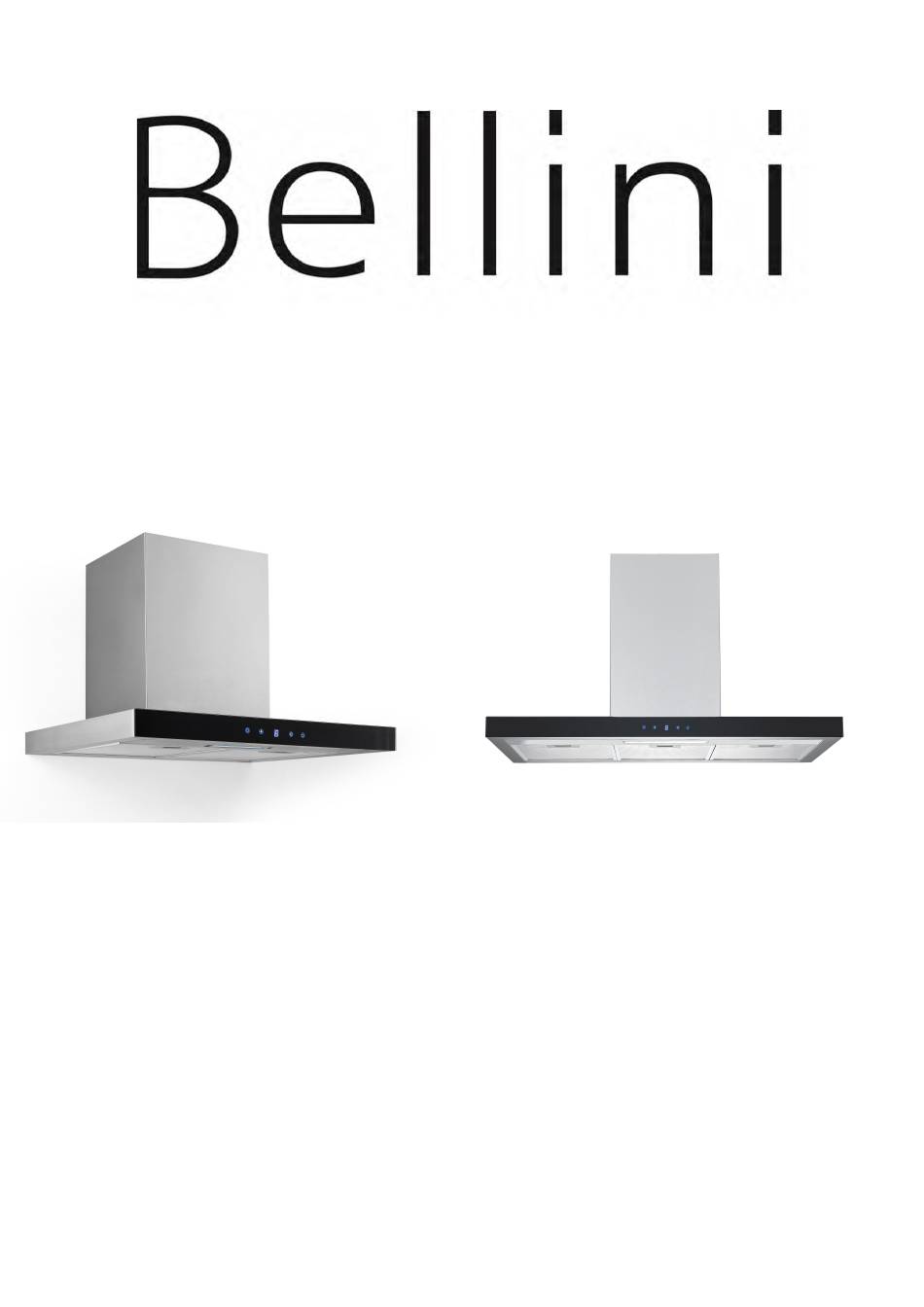

- Page 1 INSTALLATION & OPERATION INSTRUCTIONS 60cm/90cm Black Fascia Canopy Range hood Model No. BDRA603TBX2 FINELINE: 0229596 BDRA603TBX2-F FINELINE: 0220236 BDRA903TBX2 FINELINE: 186584 BDRA903TBX2-F FINELINE: 0220233 V.4 Oct 20 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au...
- Page 2 Thank you Thank you for choosing Bellini Appliances. Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room … The Kitchen All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt.
-
Page 3: Table Of Contents
Content Safety instructions----------------------------- 2 Product description---------------------------- 4 Installation----------------------------------------6 Start using your Range hood-----------------11 Maintenance and cleaning -------------------12 Warranty------------------------------------------ 13 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aus Or 0800 764 912 NZ www.belliniappliances.com.au Model: BDRA603TBX2 FN510296, BDRA903TBX2 FN0186584 60cm/90cm Black Fascia Canopy Range hood... -
Page 4: Safety Instructions
In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never to do:... - Page 5 Safety instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge stove of exhaust air are fulfilled.
-
Page 6: Product Description
BDRA603TBX2/-F, BDRA903TBX2/-F Component list: Technical data: 1. Upper decorative chimney bracket 2. Upper decorative chimney(Inner) 3. Lower decorative chimney bracket Power supply: 220 – 240v, 50Hz Lights: 1x1.5W LED Light 4. Flexible exhaust pipe Motor: 190W 5. Lower decorative chimney(outer) 6. - Page 7 Operation Mode Your range hood can be operated in two optional modes, choose the m ode suitable for your kitchen before installation. Air Extraction For air extraction mode, a ducting kit is re quired, the air To outside is drawn in and cleaned by the grease filters and directed outside.
-
Page 8: Installation
Installation Dimensions: BDRA603TBX2, BDRA603TBX2-F Width=600 BDRA903TBX2, BDRA903TBX2-F Width=900... - Page 9 Installation: Warning: Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating plate inside the range hood. When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.
- Page 10 1. Using a spirit level mark a vertical centre line on t h e wall where the hood is to be positioned, and a horizontal line where the hood base will be. NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm &...
- Page 11 Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry wall anchor plugs into holes. Use 2 x ST4x8mm screws to attach lower and upper chimney together, do not fasten screws too much, make sure upper decorative chimney can be telescopically adjusted after assembled 4.
- Page 12 7. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood completely slide into hooks. *Above photo is just for reference only, actual product could be varies… 8. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of rangehood. You can find out screw holes inside hood near the motor chamber.
-
Page 13: Start Using Your Range Hood
Start using your range hood BDRA603TBX2, BDRA603TBX2-F, BDRA903TBX2, BDRA903TBX2-F On/Off button - Speed increase/decrease Turn on/off unit, Light button - Turn on/off light Digital display 1 – Low fan speed; 2- Medium speed ; 3 - High speed. Timer - Range Hood Auto shut-off 1. -
Page 14: Maintenance And Cleaning
Maintenance and cleaning Caution: spray arm. Washing the filters in a dishwasher may • Before maintenance or cleaning is carried out, the cause discoloration of the aluminum inner mesh over range hood should be disconnected from the main time although it will not affect their performance. power supply. -
Page 15: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
