GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au
Model: BDRA603TBX2 FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2 FINELINE5102977: ,BDRA903TBX2-F FINELINE:0220233

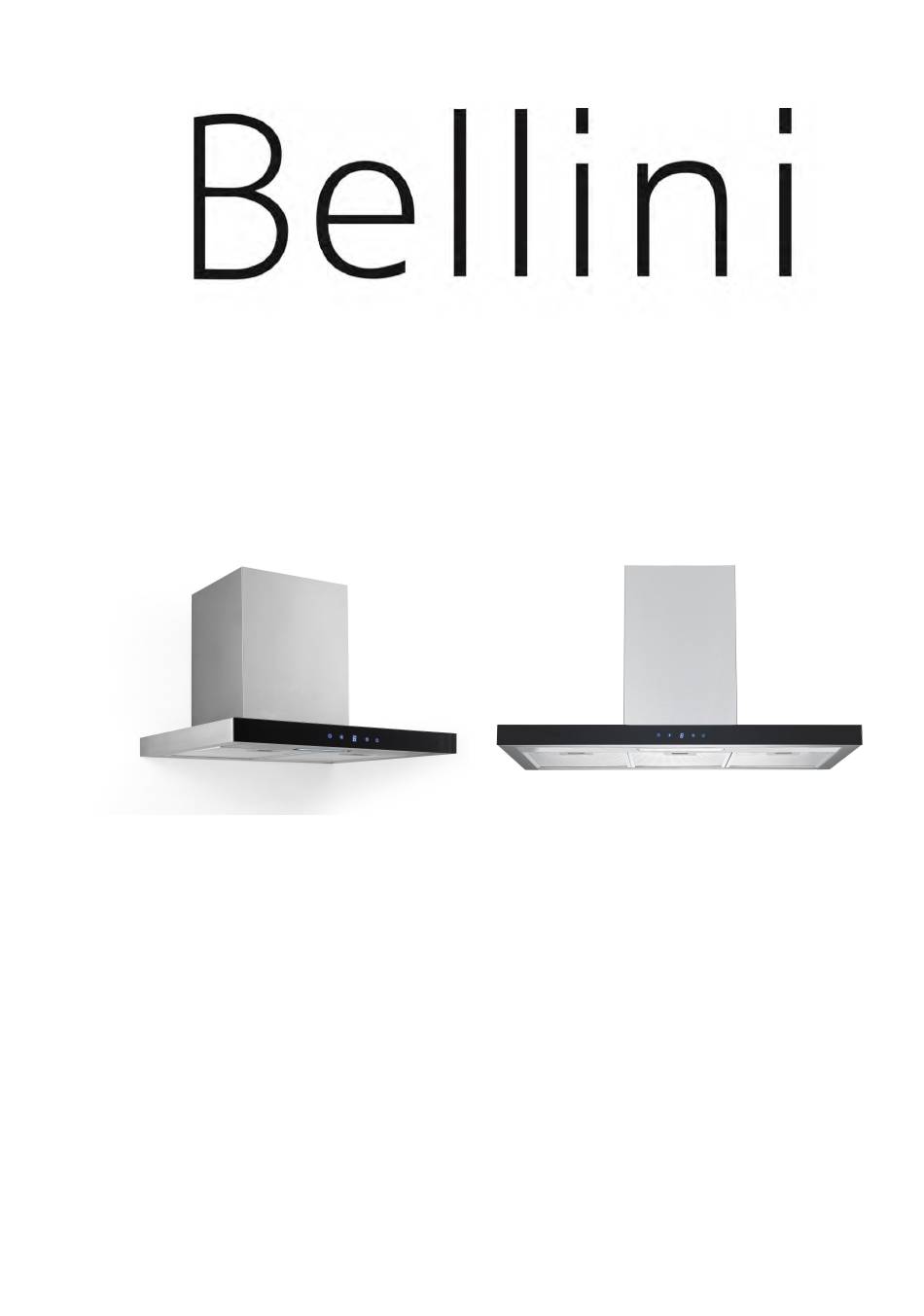

60cm/90cm Black Fascia Canopy Range hood
INSTALLATION & OPERATION
INSTRUCTIONS
60cm/90cm Black Fascia Canopy
Range hood Model No.
BDRA603TBX2
FINELINE: 5102976
BDRA603TBX2-F
BDRA903TBX2
FINELINE: 5102977
BDRA903TBX2-F
FINELINE: 0220236
FINELINE: 0220233
V3 Sep20

Advertisement

loading
Need help?

Need help?

Do you have a question about the BDRA603TBX2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bellini BDRA603TBX2

  • Page 1 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BDRA603TBX2 FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2 FINELINE5102977: ,BDRA903TBX2-F FINELINE:0220233 V3 Sep20 60cm/90cm Black Fascia Canopy Range hood...
  • Page 2 GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BDRA603TBX2 FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2 FINELINE5102977: ,BDRA903TBX2-F FINELINE:0220233 60cm/90cm Black Fascia Canopy Range hood...
  • Page 3: Table Of Contents

    GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ www.belliniappliances.com.au Model: BDRA603TBX2 FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2 FINELINE5102977: ,BDRA903TBX2-F FINELINE:0220233 60cm/90cm Black Fascia Canopy Range hood...
  • Page 4: Safety Instructions

    In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Never to do:...
  • Page 5 Safety instructions Never to do: Always to do: This range hood cannot be installed for outdoor use. Attention should be given to ensure that any It is prohibited to fit the range hood over a solid fuel applicable regulations concerning discharge stove of exhaust air are fulfilled.
  • Page 6: Product Description

    6. Hood mount bracket Length of power cord: 1.5m Air 7. Main body outlet diameter: 150mm 8. Grease mesh filter* * for BDRA603TBX2, BDRA603TBX2-F, 2 filters; for BDRA903TBX2, BDRA903TBX2-F, 3 filters * Maximum extension of upper and lower chimney is 780mm...
  • Page 7 Operation Mode Your range hood can be operated in two optional modes, choose the m ode suitable for your kitchen before installation. Air Extraction For air extraction mode, a ducting kit is re quired, the air To outside is drawn in and cleaned by the grease filters and directed outside.
  • Page 8: Installation

    Installation Dimensions: BDRA603TBX2, BDRA603TBX2-F Width=600 BDRA903TBX2, BDRA903TBX2-F Width=900...
  • Page 9 Installation: Warning: Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating plate inside the range hood. When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.
  • Page 10 1. Using a spirit level mark a vertical centre line on t h e wall where the hood is to be positioned, and a horizontal line where the hood base will be. NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm &...
  • Page 11 Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry wall anchor plugs into holes. Use 2 x ST4x8mm screws to attach lower and upper chimney together, do not fasten screws too much, make sure upper decorative chimney can be telescopically adjusted after assembled 4.
  • Page 12 7. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood completely slide into hooks. *Above photo is just for reference only, actual product could be varies… 8. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of rangehood. You can find out screw holes inside hood near the motor chamber.
  • Page 13: Start Using Your Range Hood

    Start using your range hood BDRA603TBX2, BDRA603TBX2-F, BDRA903TBX2, BDRA903TBX2-F On/Off button - Speed increase/decrease Turn on/off unit, Light button - Turn on/off light Digital display 1 – Low fan speed; 2- Medium speed ; 3 - High speed. Timer - Range Hood Auto shut-off 1.
  • Page 14: Maintenance And Cleaning

    Maintenance and cleaning Caution: spray arm. Washing the filters in a dishwasher may • Before maintenance or cleaning is carried out, the cause discoloration of the aluminum inner mesh over range hood should be disconnected from the main time although it will not affect their performance. power supply.
  • Page 15: Warranty

    Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
  • Page 16 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
