WARNING: Important! Read and understand these instructions
before installing or using the Positioning Belt. If the
Positioning Belt is not properly installed, personal injury and
damage to the Positioning Belt could result.
WARNING: If components are damaged or missing, contact
your GF authorized distributor immediately. DO NOT use
substitute parts. Use only Everest & Jennings replacement
parts. Non-Everest & Jennings replacement parts could cause
personal injury and damage to the Positioning Belt.
WARNING: Cancer and Reproductive Harm -
www.p65warnings.ca.gov.
WARNING: GF Health Products, Inc. assumes no responsibility
for any damage or injury caused by improper assembly,
installation or use of this product.
INTENDED USE
This product is intended as a positioning belt only.
WARNING: This product is not intended for use as a transport
safety device.
INSTALLATION (SEE PICTURES AT RIGHT)
To mount the Positioning Belt, loosen and remove the rear seat
upholstery screw on each side. With belt positioned so that buckle is
upward when fastened, slide belt between seat upholstery and seat
rail, centering grommets on screw holes. Replace screws and tighten.
Length Adjustment
Adjust belt length by loosening or tightening the unsecured belt
end on each side of the buckle; both sides of the belt should be of
equal length. The fit must be snug, but not so tight that comfort or
breathing is compromised. You should be able to slide your open
hand between the belt and the wheelchair user.
WARNING: Ensure Positioning belt is properly adjusted, and
Positioning Belt and mounting screws are securely installed,
before use.
OPERATION (SEE PICTURES AT RIGHT)
To lock the belt, press the push button and slide the latch into the
buckle until it clicks into place. To unlock the belt, press the push
button and slide the latch out from the buckle.
MAINTENANCE AND CLEANING
WARNING: If signs of wear appear, replace the Positioning
Belt.
WARNING: Check the Positioning Belt mounting screws
monthly and tighten as needed.
s NOTICE: Do not use corrosive cleansers to clean this product.
Clean the Positioning Belt as needed with a mild soap and water
solution.
300-505-INS-LAB-RevB18

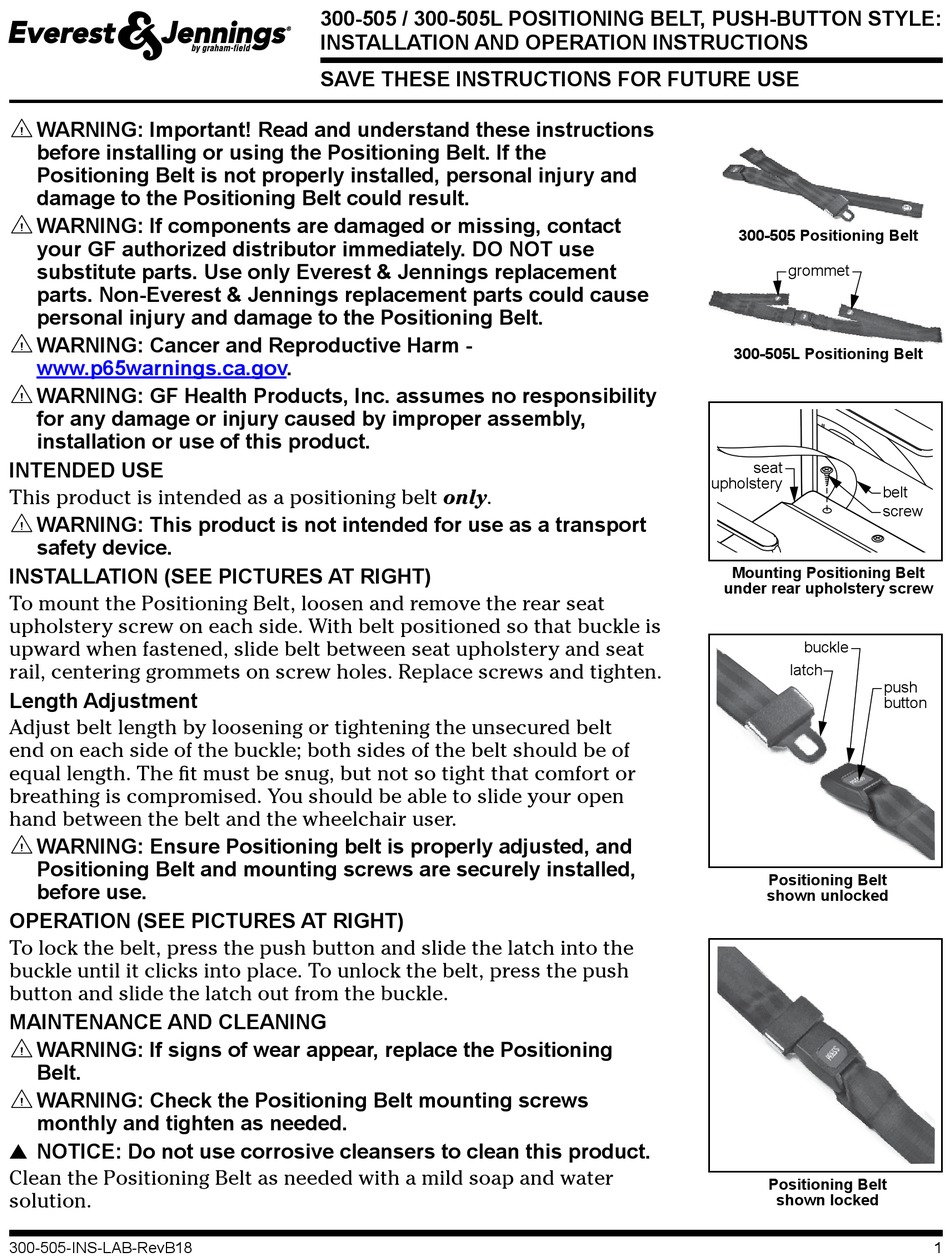

300-505 / 300-505L POSITIONING BELT, PUSH-BUTTON STYLE:
INSTALLATION AND OPERATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE

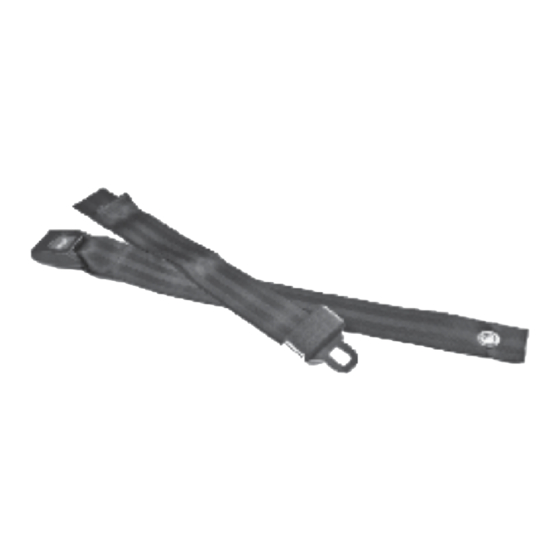

300-505 Positioning Belt
grommet
300-505L Positioning Belt
seat
upholstery
belt
screw
Mounting Positioning Belt
under rear upholstery screw
buckle
latch
push
button
Positioning Belt
shown unlocked
Positioning Belt
shown locked
1
