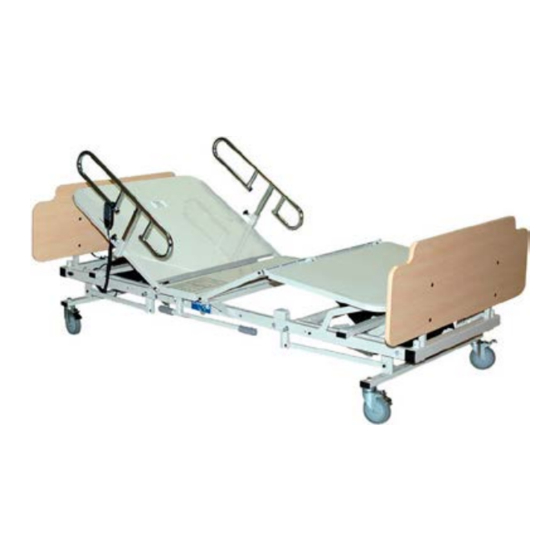

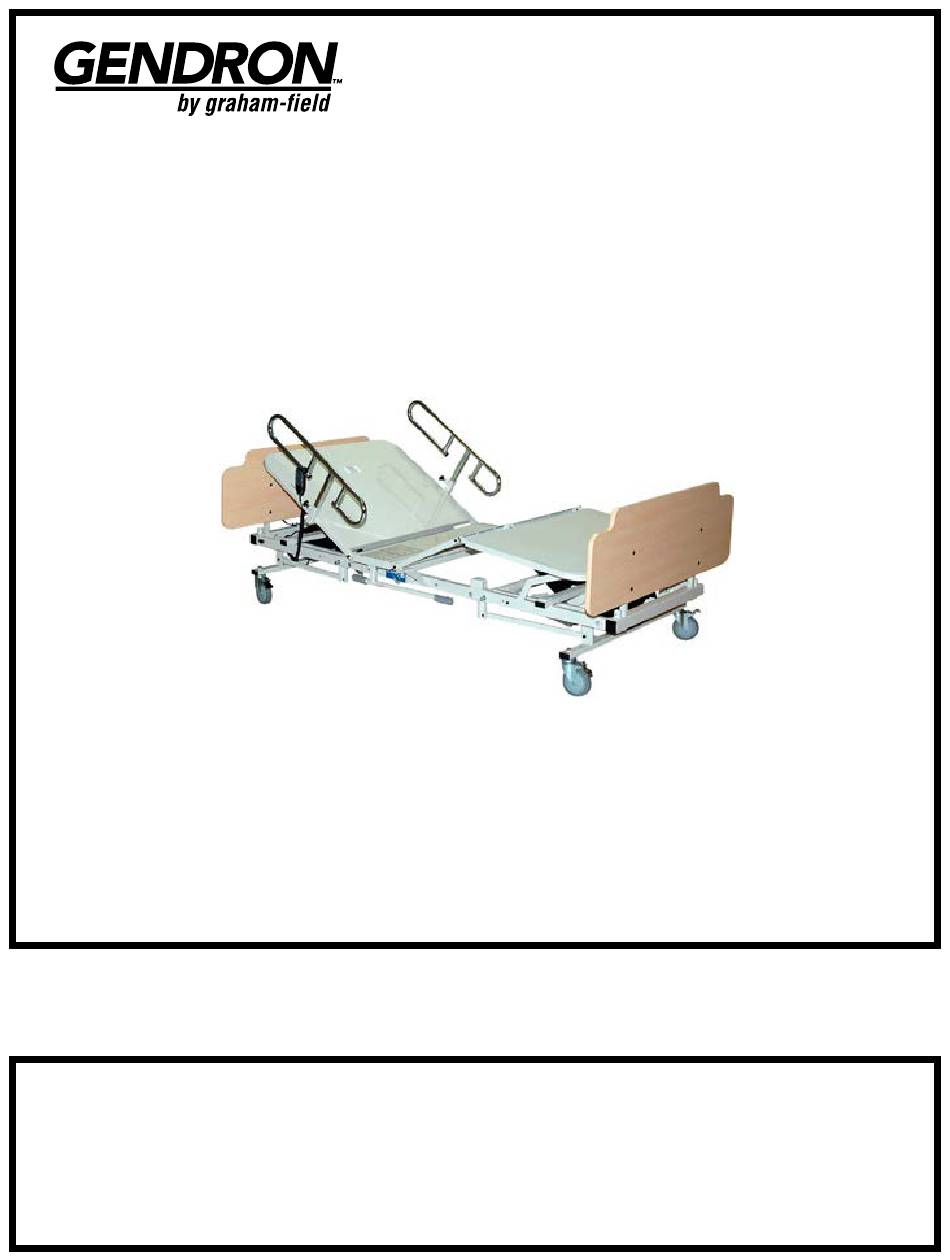

- Page 1 3648 SERIES BARIATRIC BED USER MANUAL GD_3648-INS-LAB-RevA20 Read this manual before operating your 3648 Bariatric Bed. Save this manual for future use. The most current version of this manual can be found online at gendroninc.com.
-
Page 2: Table Of Contents
CONTENTS 1 INTRODUCTION ..........................3 INSTALLATION AND SETUP ......................3 INTENDED USE ..........................3 2 IMPORTANT SAFETY INSTRUCTIONS ..................4 SIGNIFICANCE OF SAFETY STATEMENTS ................. 4 DANGER / WARNING / CAUTION / NOTICE SUMMARY .............. 5 ELECTROMAGNETIC COMPATIBILITY ..................7 3 HANDLING PROCEDURES ...................... -
Page 3: Introduction
1 INTRODUCTION INSTALLATION AND SETUP The original installation and setup of this bed and any options or accessories (rails, extension kits, trapeze, etc.) must be performed by a GF authorized distributor or qualified service personnel. INTENDED USE The 3648 Bariatric Bed is designed for bariatric patients. The bed is ideal for long term use in the home or nursing care centers. -
Page 4: Important Safety Instructions
2 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Before using the 3648 Bariatric Bed, read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to the 3648 Bariatric Bed. Always consult your healthcare professional to determine safe methods most suitable for your individual abilities. -
Page 5: Danger / Warning / Caution / Notice Summary
DANGER / WARNING / CAUTION / NOTICE SUMMARY DANGER: To Reduce the Risk of Electric Shock: DANGER: Always unplug the bed from the electrical outlet before cleaning. WARNING : To Reduce the Risk of Burns, Fire, Electric Shock, or Personal Injury: WARNING: Important! Read and understand these instructions before assembling or using the Gendron 3648 Bariatric Bed. - Page 6 WARNING: When assembling the bed, ensure the power cord has been properly cable- tied to the frame so that it cannot be pinched or caught on any part of the bed during normal operation of the bed. WARNING: Ensure the power cord and motor cords DO NOT get tangled around the bed, bed rails, or legs during normal operation of the bed.
-
Page 7: Electromagnetic Compatibility
ELECTROMAGNETIC COMPATIBILITY Medical electrical equipment needs special precautions regarding electromagnetic compatibility (EMC) and needs to be installed and put into service according to the EMC information provided. 1. Portable and mobile radio frequency (RF) communications equipment can affect medical electrical equipment. This Product is intended for use in the electromagnetic environments specified. -
Page 8: Handling Procedures
3 HANDLING PROCEDURES SHIPPING AND TRANSPORTATION INSTRUCTIONS The bed frame is disassembled into two sections for handling. If the 3648 Bariatric Bed is to be reshipped by common carrier, it should be packed in the same carton in which it was received. Unpacking 1. -
Page 9: Assembly And Setup Instructions
4 ASSEMBLY AND SETUP INSTRUCTIONS FEATURES AND COMPONENTS Side Rail Head Board Back Rest Leg Lift Foot Board Brake Caster Side Rail Release Pin Lift Handle IV Socket Steer Caster GD_3648-INS-LAB-RevA20... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Install the headboard posts in the square sockets at the head end with the board closest to the mattress as shown at above left. 2. Install the footboard posts in the square sockets at the foot end with the board away from the mattress as shown at above right. -
Page 11: Setup Instructions
SETUP INSTRUCTIONS 1. Lock head and foot end casters parallel to frame and oriented as shown at right. Step 1 2. Move bed into position as shown at right and hook the foot end frame over the round bar on the head end frame. 3. -
Page 12: Disassembly For Storage Or Transport
DISASSEMBLY FOR STORAGE OR TRANSPORT 1. Completely lower bed and all bed sections. 2. Lock head and foot end casters parallel to frame and oriented as shown at right. Steps 1 and 2 3. Disconnect both actuator cables from foot end of frame to head end of frame. -
Page 13: Operation Instructions
5 OPERATION INSTRUCTIONS WARNING: Ensure that the bed is secure and assembled properly per instructions in this manual before operating. WARNING: Power Requirements: Electrical hazard may occur if this device is plugged into inadequate power supply. A power source of 100-240 VAC, 50/60 Hertz with a capacity of at least 3.9 Amperes must be available to operate the bed. -
Page 14: Function And Basic Operation
FUNCTION AND BASIC OPERATION ACTUATORS, CONTROL MODULE, AND HANDSET Mounting Bracket Actuator Bottom View of Bed Control Module Power Cord w/ Green Ground Wire Green Power-on Light Glows when Power Cord Is plugged into 120V outlet Linear Actuators The bed is equipped with 24V DC Linear Actuators designed with built in travel limit switches. -
Page 15: Handset Operation
HANDSET OPERATION head up / head down foot and leg up / foot and leg down deck up / deck down 3-Function Handset The 3-Function Handset, shown above, has electric drive actuators to operate the following: 1) Raise and lower head section; 2) Raise and lower foot and leg section;... -
Page 16: Caster Operation
CASTER OPERATION Side Rail Head Board Back Rest Leg Lift Foot Board Brake Caster Side Rail Release Pin Lift Handle IV Socket Steer Caster Steering the Bed Step here to lock The Bed can be steered in two modes, with the steering locked or with all four casters able to move independently. -
Page 17: Bed Rails
BED RAILS Side Rail Adjustment Release Knob Side rails are located on each side of the bed. Side rails have a three-position vertical adjustment. To raise or lower a side rail, grasp the top section of rail with one hand while pulling the Release Knob (shown above) with the other hand. -
Page 18: Care And Maintenance
6 CARE AND MAINTENANCE Proper care and maintenance are essential to keeping the Gendron 3648 Bariatric Bed in a safe operating condition. When you believe a component or part is not functioning properly, immediately contact your GF authorized distributor, as a potentially hazardous condition could exist. -
Page 19: Periodic Inspection And Maintenance
PERIODIC INSPECTION AND MAINTENANCE Perform the following as needed or between patient placements, whichever happens sooner. INTERVAL EVERY 3 EVERY 6 EVERY 12 INSPECTION ITEM MONTHS MONTHS MONTHS Ensure all nuts and bolts are tight Inspect bushings and lubricate all pivots with FDA- approved lubricant Ensure release pins spring back to locked position Ensure retaining pins are properly installed in clevis pins... -
Page 20: Troubleshooting
7 TROUBLESHOOTING WARNING: Service and repair of the Gendron 3648 Bariatric Bed should be performed only by a GF authorized distributor. GF is not responsible for any consequence resulting from any unauthorized service or repair. The following list of encountered problems and their solutions will assist you in determining what may be causing your 3648 Bariatric Bed not to function as designed. -
Page 21: Specifications
8 SPECIFICATIONS Info: All dimensions are given in inches unless otherwise specified. All dimensions are approximate. SPECIFICATION (unless otherwise noted, applies to all models) Product name Gendron 3648 Bariatric Bed Environmental Conditions Operation Temperature 40°F to 105°F (5°C to 40°C) Relative 20% to 90% @ 85°F (30°C) humidity... -
Page 22: Limited Warranty
9 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 23: Index
10 INDEX Specifications 21 Actuators 14 Steering lock function 16 Actuators, linear 14 Steering the bed 16 Assembly and setup instructions 9 Storage 8 Assembly instructions 10 Troubleshooting 20 Bed rails 17 Bed rail safety 17 Unpacking 8 Upright back position (Fowler) 15 Care and maintenance 18 Caster, 4-caster free function 16 Warnings 5... - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. grahamfield.com / gendroninc.com © 2020, GF Health Products, Inc. All Rights Reserved. Gendron is a trademark of GF Health Products, Inc. GF Health Products, Inc.
