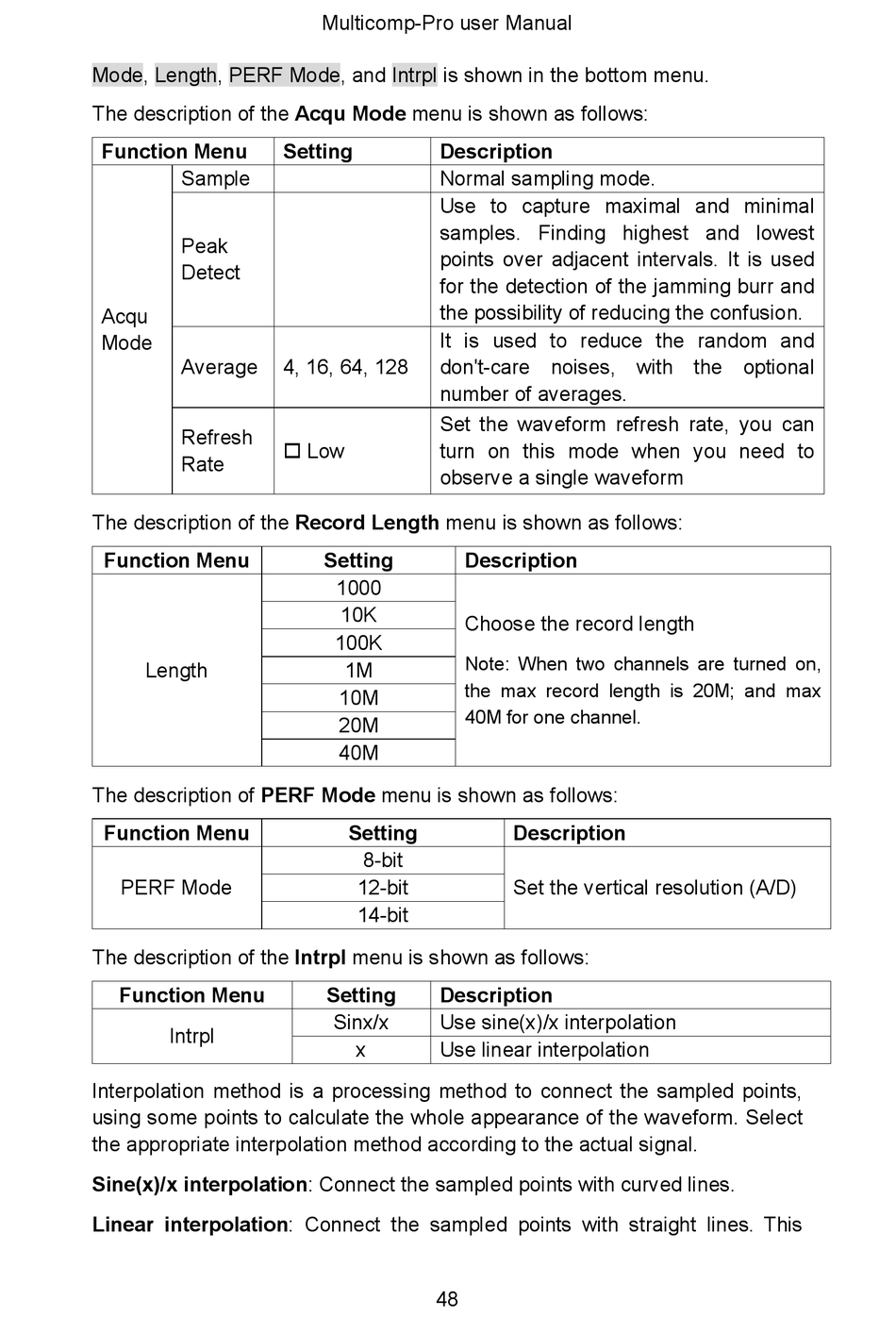

Mode, Length, PERF Mode, and Intrpl is shown in the bottom menu.
The description of the Acqu Mode menu is shown as follows:
Function Menu
Sample
Peak
Detect
Acqu
Mode
Average
Refresh
Rate
The description of the Record Length menu is shown as follows:
Function Menu
Length
The description of PERF Mode menu is shown as follows:
Function Menu
PERF Mode
The description of the Intrpl menu is shown as follows:
Function Menu
Intrpl
Interpolation method is a processing method to connect the sampled points,
using some points to calculate the whole appearance of the waveform. Select
the appropriate interpolation method according to the actual signal.
Sine(x)/x interpolation: Connect the sampled points with curved lines.
Linear interpolation: Connect the sampled points with straight lines. This
Multicomp-Pro user Manual
Setting Description
Normal sampling mode.
Use to capture maximal and minimal
samples. Finding highest and lowest
points over adjacent intervals. It is used
for the detection of the jamming burr and
the possibility of reducing the confusion.
It is used to reduce the random and
4, 16, 64, 128 don't-care noises, with the optional
number of averages.
Set the waveform refresh rate, you can
 Low turn on this mode when you need to
observe a single waveform
Setting
1000
10K
100K
1M
10M
20M
40M
Setting
8-bit
12-bit
14-bit
Setting Description
Sinx/x Use sine(x)/x interpolation
x Use linear interpolation
48
Description
Choose the record length
Note: When two channels are turned on,
the max record length is 20M; and max
40M for one channel.
Description
Set the vertical resolution (A/D)
