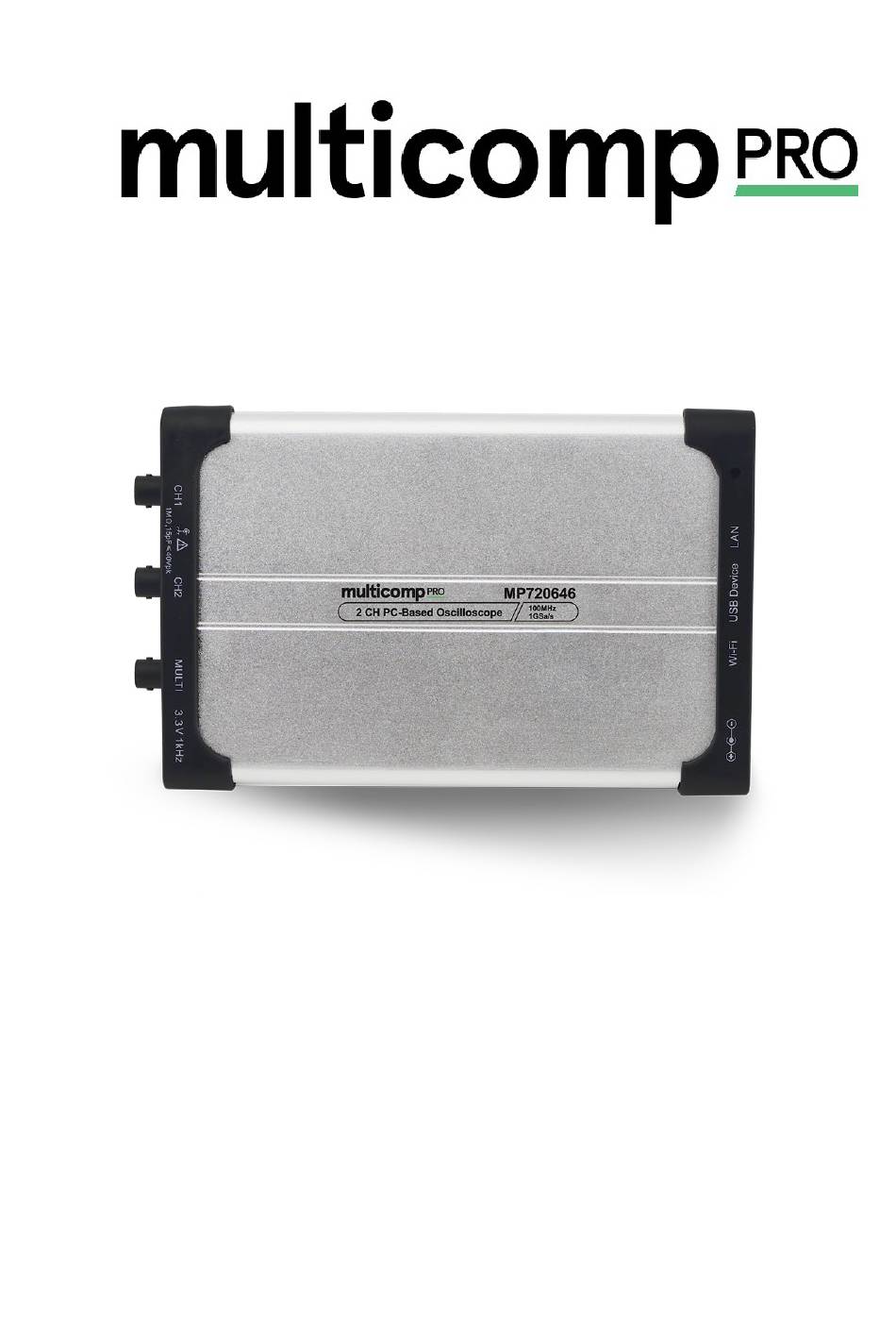

  • Page 1 MP720646 Two-Channel Series PC Based Oscilloscope Quick Guide...
  • Page 2: Table Of Contents

    Table of Contents 1. General Safety Requirements ....................- 1 - 2. Safety Terms and Signs ......................- 2 - 3. Communication Interface Introduction ..................- 5 - 4. Device General Checking ......................- 6 - 5. How to Communicate Device with PC ..................- 7 - i.
  • Page 3: General Safety Requirements

    1. General Safety Requirements Before first use, please read the following safety precautions to avoid any possible personal injury and prevent this product or any other products connected to it from damage. Safety Warnings Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
  • Page 4: Safety Terms And Signs

    Safety Terms and Signs Safety Terms Terms in this quick guide. It covers, Warning which indicates the condition or the operation that may cause human body injury or permanent life loss. Caution indicates the conditions or practices that could result in damage to this product or other connected devices.
  • Page 5 To avoid possible human injury, and / or device damage, and / or its accessory or communicating facility damage, before working the device, we strongly recommend to read the following safety information. Warning To avoid any potential short circuit or electric shock, Use only the PSU supplied or one of identical specification.
  • Page 6 Warning When the device input is connected to a voltage larger than 42 Vp-p (30Vrms), or on circuit of 4800+VA, to avoid any potential short circuit or electric shock - i. Always use the probes that came with the device. ii.
  • Page 7: Communication Interface Introduction

    3. Communication Interface Introduction Figure 3-1. Communication Interface of the Device i. power input: for AC-DC adapter ii. USB host: for extension iii. USB device (type-C): for PC communication Note: when the device powered by PC USB connection cable (via USB communication interface of PC, with PC powered by AC power source), without adapter connection, the input current should reach 1.5A or above.
  • Page 8: Device General Checking

    4. Device General Checking After you get a new instrument, it is recommended that you should make checks as follows: 1.Check whether there is any damage caused during transportation. If it is found that the outer carton or internal packaging has suffered serious damage, do not dispose of it until the complete device and its accessories have been thoroughly tested.
  • Page 9: How To Communicate Device With Pc

    5. How to Communicate Device with PC to communicate the device with PC the software must be installed first. i. software installation method i). full installation Target user(s): general PC oscilloscope user(s), and programmer(s) secondary development needs Installation process - On the basis that NI-VISA driver or similar VISA driver is already installed on the PC, to install “PC_OSC_Software.exe”...
  • Page 10: To Install Ni-Visa Driver

    ii. to install NI-VISA driver To assure PC software runs smoothly, it is a necessary to install the NI-VISA driver first. Note: If the NI-VISA driver, or similar VISA driver is already installed onto the target PC, the next step ii could be skipped To run from accompanying CD which comes along with...
  • Page 11 click “Next”, to enter into NI Package Manager processing window, then this window displays, - 9 -...
  • Page 12 followed by additional installation window to select additional items you may wish to install, use scroll bar, to select more necessary options, from here. - 10...
  • Page 13 tick "I accept the above 2 license agreements", followed by "Next", until this window, tick "I accept the above 2 license agreements" for another time, followed by "Next", - 11...
  • Page 14 “Review” window is displayed click “Next”, NI-VISA installation runs, click “Next” again to choose options as required. - 12...
  • Page 15 press “Ok” to finish the whole process, this window indicates the successful installation, to reboot the PC by click “Reboot Now” After PC restarts, the NI-VISA driver been installed onto target PC successfully. - 13...
  • Page 16: To Install Pc Software

    iii. to install PC Software Run “PC_OSC_Software.exe” from accompanying CD included with the device to install the software. iv. to work PC Software Via short-cut to PC software from the desktop of target PC, double-click “PC DSO” to start the software.
  • Page 17: Device Function Checking

    6. Device Function Checking To verify whether the device is in normal working status, do a fast function check. After communicating device with PC successfully, please follow up following steps to do a fast function check - i. From PC software operation interface, mouse-click to restore the device to factory settings.
  • Page 18: Probe Compensation

    7. Probe Compensation Before working the probe with either of input channels (Channel 1 / Channel 2), it’s advisable to adjust its compensation, to assure ideal measurement effect. Since the probe in non-compensated, or improperly compensated (overcompensated / under-compensated) status may cause possible errors to the measurement result.
  • Page 19: How To Use The Probe Safely

    9. How to Use the Probe Safely The safety guard ring around the probe body protects the operator from any electric shock, its location as Figure 8-1. Figure 8-1 Finger Guard Location Warning: To avoid possible electric shock, when working the probe, always keep your fingers behind the safety guard ring.
  • Page 20: Appendix

    10. Appendix Appendix I. Device Accessory List Accessories - 2 x passive probe 1 x type-C cable 1 x hard copy quick guide 1 x AC-DC adapter 1 x BNC/Q9 cable 1 x PC software / user manual CD - 18...
  • Page 21: Appendix Ii. Device Maintenance

    Appendix II. Device Maintenance Storage Do not store or leave the instrument where it will be exposed to direct sunlight for long periods of time. Caution: To avoid any damage to the instrument or probe, do not expose to any corrosive liquids or solvents.
