TPS16630-32EVM: Evaluation Module for TPS1663x
This user's guide describes the evaluation module (EVM) for the Texas instruments TPS1663 family of
eFuse devices, TPS16630 and TPS16632. The document provides EVM configuration information and
test setup details for evaluating TPS1663 eFuse devices with the EVM. The EVM schematic, board layout
and bill of materials (BOM) are also included.
...................................................................................................................
1
Introduction
....................................................................................................................
2
Description
3
General Configurations
4
EVM Board Assembly Drawings and Layout
..................................................................................................................
5
Schematics
6
Bill of Materials
1
EVM Test Setup
2
Output Voltage Start-Up Waveform
3
Output Short-Circuit Protection
4
Top Side Placement
...................................................................................................................
5
Top Layer
6
Bottom Layer
7
TPS16630-32EVM Schematic
1
SVHC Summary
2
TPS16630-32EVM Options and Setting
3
Input and Output Connector Functionality
4
Test Points Description
5
Jumper and LED Descriptions
6
Power Supply Setting for the TPS16630-32EVM
7
Default Jumper Setting for the TPS16630-32EVM
8
TPS16630-32EVM DMM Readings at Different Test Points
9
TPS16630-32EVM Oscilloscope Setting for the Output Voltage Start-Up Test
10
TPS16630-32EVM Jumper Setting for Current Limits
11
TPS16630-32EVM Output Short-Circuit Protection Test
12
TPS16630-32EVM Bill of Materials
Trademarks
All trademarks are the property of their respective owners.
1
Introduction

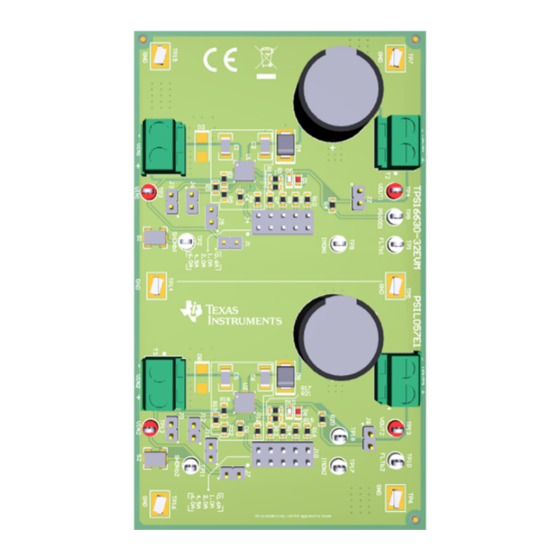

The TPS16630-32EVM allows reference circuit evaluation of TI's TPS1663x eFuse devices. The
TPS1663x are 4.5-V to 60-V, 0.6-A to 6-A industrial eFuses with integrated 31-mΩ FET, programmable
undervoltage, overvoltage, overcurrent, inrush current protection, and output current monitoring features.
SLVUBI9A – October 2018 – Revised March 2019
Submit Documentation Feedback
.....................................................................................................
.............................................................................................................
.............................................................................................................
......................................................................................
............................................................................................
.......................................................................................................
................................................................................................................
............................................................................................
.............................................................................................................
..................................................................................
.....................................................................................................
.............................................................................................
......................................................................................
Copyright © 2018–2019, Texas Instruments Incorporated
SLVUBI9A – October 2018 – Revised March 2019
Contents
...........................................................................
List of Figures
List of Tables
................................................................................
........................................................................
......................................................................
...........................................................
..................................................................
...............................................................
TPS16630-32EVM: Evaluation Module for TPS1663x
User's Guide
.....................................
1
2
3
10
12
13
5
7
9
10
11
11
12
2
2
3
3
3
6
6
6
7
8
9
13
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS16630-32EVM
Summary of Contents for Texas Instruments TPS16630-32EVM
- Page 1 SLVUBI9A – October 2018 – Revised March 2019 TPS16630-32EVM: Evaluation Module for TPS1663x This user’s guide describes the evaluation module (EVM) for the Texas instruments TPS1663 family of eFuse devices, TPS16630 and TPS16632. The document provides EVM configuration information and test setup details for evaluating TPS1663 eFuse devices with the EVM.
- Page 2 In compliance with the Article 33 provision of the EU REACH regulation, we are notifying you that this EVM includes a component containing at least one substance of very high concern (SVHC) above 0.1%. These uses from Texas Instruments do not exceed 1 ton per year. The SVHC summary is listed in Table 1 Table 1.
- Page 3 General Configurations www.ti.com General Configurations Physical Access Table 3 lists the TPS16630-32EVM input and output connector functionality, Table 4 describes the test point availability, and Table 5 describes the jumper functionality. Table 3. Input and Output Connector Functionality Connector Label Description VIN1(+), GND(–)
- Page 4 A resistive load is recommended for testing. If an electronic load is used, ensure that the output load is set in the constant resistance (CR) mode, not in the constant current (CC) mode. TPS16630-32EVM: Evaluation Module for TPS1663x SLVUBI9A – October 2018 – Revised March 2019 Submit Documentation Feedback...
- Page 5 General Configurations www.ti.com Test Setup Figure 1 shows the typical test setup for the TPS16630-32EVM. Connect T1/T3 to the power supply and T2/T4 to the load. Figure 1. EVM Test Setup SLVUBI9A – October 2018 – Revised March 2019 TPS16630-32EVM: Evaluation Module for TPS1663x Submit Documentation Feedback Copyright ©...
- Page 6 24 V 2. Turn on the load and set the load resistance to 24-Ω ±1 Ω. 3. Disable the power supply, load and hook up the TPS16630-32EVM assembly as shown in Figure 1 4. Make sure the default evaluation board jumper settings are as shown in Table Table 7.
- Page 7 3. Enable the load. 4. Enable the power supply and verify that the output voltage startup waveform is as shown in Figure Table 9. TPS16630-32EVM Oscilloscope Setting for the Output Voltage Start-Up Test Oscilloscope Setting CH1 Probe Points CH2 Probe Points...
- Page 8 1. Set the current limit to 6 A by installing the J4/J10 jumper in position 1-2. 2. The jumper setting for different current limits is shown in Table Table 10. TPS16630-32EVM Jumper Setting for Current Limits CH1, CH2 Jumper Positions (J4, J10) Load Current Limit (A) 9-10 3.
- Page 9 Output Short-Circuit Protection Test Follow the instructions to verify the output short-circuit protection feature of the device: 1. Set up the oscilloscope as listed in Table Table 11. TPS16630-32EVM Output Short-Circuit Protection Test Oscilloscope Setting CH1 Probe Points CH2 Probe Points...
- Page 10 Figure 4 through Figure 6 show component placement and layout of the EVM. Figure 4. Top Side Placement TPS16630-32EVM: Evaluation Module for TPS1663x SLVUBI9A – October 2018 – Revised March 2019 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated...
- Page 11 EVM Board Assembly Drawings and Layout www.ti.com Figure 5. Top Layer Figure 6. Bottom Layer SLVUBI9A – October 2018 – Revised March 2019 TPS16630-32EVM: Evaluation Module for TPS1663x Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated...
- Page 12 TP17 MODE 61.9k IMON2 SHDN TPS16632RGER TP14 TP15 TP16 TP11 3.0k 4.02k 9.09k SHDNb2 Figure 7. TPS16630-32EVM Schematic TPS16630-32EVM: Evaluation Module for TPS1663x SLVUBI9A – October 2018 – Revised March 2019 Submit Documentation Feedback Copyright © 2018–2019, Texas Instruments Incorporated...
- Page 13 Bill of Materials www.ti.com Bill of Materials Table 12 lists the TPS16630-32EVM BOM. Table 12. TPS16630-32EVM Bill of Materials Item# Designator Quantity Value Description PackageReference PartNumber Manufacturer PCB1 Printed Circuit Board PSIL057 C1, C2, C5, C6 1 uF CAP, CERM, 1 uF, 100...
- Page 14 Bill of Materials www.ti.com Table 12. TPS16630-32EVM Bill of Materials (continued) Item# Designator Quantity Value Description PackageReference PartNumber Manufacturer R7, R13 4.02 k RES, 4.02 k, 1%, 0.1 W, 0603 CRCW06034K02FKEA Vishay-Dale AEC-Q200 Grade 0, 0603 R8, R14 9.09 k RES, 9.09 k, 1%, 0.1 W,...
- Page 15 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 16 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 17 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 18 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
- Page 20 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2019, Texas Instruments Incorporated...
