www.ti.com

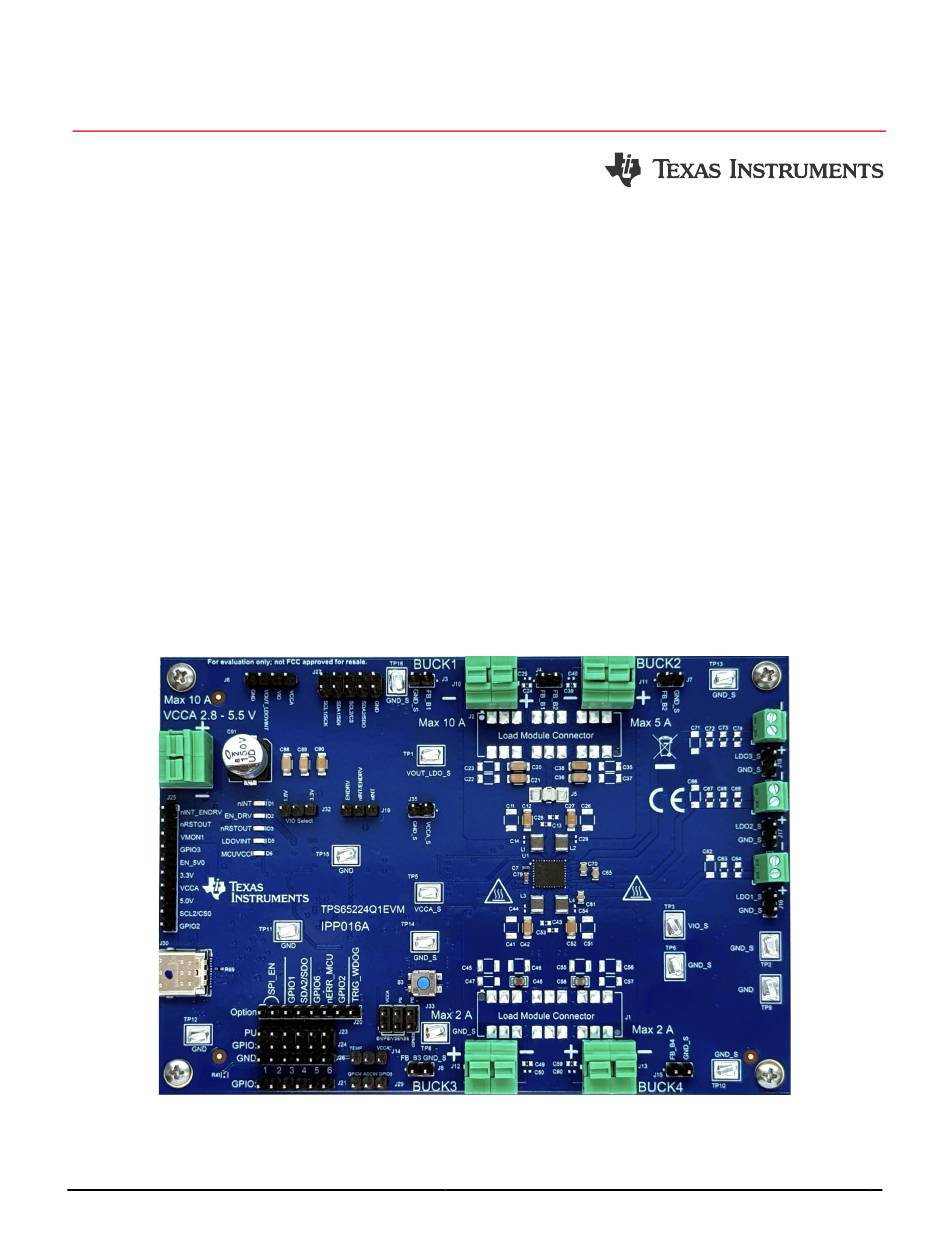

EVM User's Guide: TPS65224Q1EVM
TPS6522x Evaluation Module
Description
The TPS6522x power management integrated circuit
(PMIC) family is extremely flexible providing multiple
outputs in a single package helping to optimize space
usage in a system. TPS6522x PMIC includes four
step-down converters (buck regulators) and three
low-dropout (LDO) regulators. Two of these buck
regulators can be used in multi-phase mode to
provide up to 10 A source. The PMIC also has a
built-in analog-to-digital converter (ADC) which can
be used to monitor the core temperature or external
signals which helps to reduce the required system

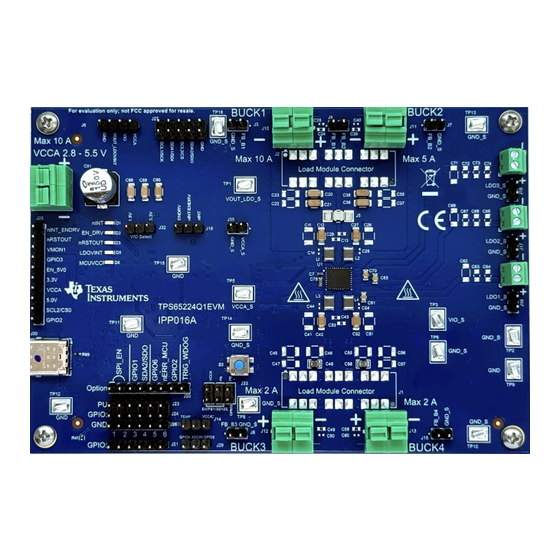

space further. The TPS6522x evaluation module
(EVM) is both an evaluation and development tool.
With the EVM both device level and system level
configurability is available through an easy to use
graphical user interface (GUI) tool.
Get Started
1. Order the EVM here.
SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024
Submit Document Feedback
2. Download the
evaluation.
3. Download the supporting documents here.
4. Get additional material in
design
Features
Input voltage range from 3V to 5.5V
Evaluation module can be powered with a bench
power supply or USB-C
On-board MSP432 to communicate with PMIC
using the GUI via USB-C cable
Board can be reworked to support other TPS6522x
devices
Applications
Automotive infotainment and digital cluster,
navigation systems, telematics, body electronics
and lighting
Advanced driver assistance system (ADAS)
Industrial control and automation
Copyright © 2024 Texas Instruments Incorporated
GUI
for configuration and
functional safety
secure resources.
TPS6522x Evaluation Module
Description
and
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPS6522 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS6522 Series

  • Page 1 Get Started • Advanced driver assistance system (ADAS) • Industrial control and automation 1. Order the EVM here. SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2 1.2 V LDO1 1.8 V 300 mA LDO2 3.3 V 400 mA LDO3 0.85 V 400 mA VSENSE 3.3 V TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3 "TPS6522x" the whole device family is referenced including both industrial and automotive devices. When referencing to a feature or capability of a specific device the full product number is used, for example TPS6522430-Q1. SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 To ensure proper functionality of the TPS6522x VCCA must be between 3 V and 5.5 V although the label next to terminal J9 states lowest voltage of 2.8 V. TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 LDO output voltage sense points. Unused regulator can also be used J16, J17, J18 LDO1, LDO2, LDO3 as voltage monitor for an external rail. SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Trigger signal for trigger mode watchdog. GPIO2 of the PMIC must be in the Closed alternative function to support the trigger mode watchdog signal. TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Additional configuration for the functionality of the EN/PB/VSENSE pin is available with the DIP switch S2. See Section 2.2.5 for more information. SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 V (the MCU IO is always be 3.3 V). In addition to the level shifters, the TS3A5018RSVR (U8) switch is used to TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 GPIO2 to SCL2/CS0 on J25. These jumpers connect the CS and SDO signals from the MCU to the GPIO pins of the TPS6522x through a level shifter. Figure 2-3. Interface Settings for SPI Communication SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 It is possible to use the unused feedback of the secondary buck for voltage monitoring. 0 ohm resistor R2 connecting the FB pin to GND must be opened in this case. TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 ACCtrl COM port, which can be found from the device manager of the operating system. The COM port can be changed from the GUI from Options - Device Settings. SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 0.5% VOUT_LDOVINT 1.2k blue ldoint led VCCA VOUT3 VOUT3 EN_PB_VSENSE VOUT4 VOUT4 GPIO3 PB_P Figure 4-1. Schematic Page 1 TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 1.0k MCUVCC blue SPI_EN SPI_EN PGND TLV73318PQDRVRQ1 PGND C135 C136 PGND 0.1uF 2.2µF PGND TPS60110PWPR Figure 4-2. Schematic Page 2 SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com 4.2 PCB Layouts Figure 4-3. Layout Top, Layer 1 TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 Hardware Design Files Figure 4-4. Layout Ground, Layer 2 SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Hardware Design Files www.ti.com Figure 4-5. Layout Signal, Layer 3 TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 Hardware Design Files Figure 4-6. Layout Signal, Layer 4 SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Hardware Design Files www.ti.com Figure 4-7. Layout Ground, Layer 5 TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 Hardware Design Files Figure 4-8. Layout Bottom SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 Header, 100mil, 2x1, Gold, TH TSW-102-07-G-S Samtec J18, J35 JUMPER TIN SMD S1911-46R Harwin Header, 100mil, 4x1, Gold, TH TSW-104-07-G-S Samtec TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 CRCW06033M92FKEA Vishay-Dale AEC-Q200 Grade 0, 0603 High Precision-High Stability RT0603BRD0750KL Yageo Chip Resistor Thin Film 0603 50kOhm 0.1% Paper T/R SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 VOLTAGE TRANSLATOR, PW0020A (TSSOP-20) Low-Capacitance 6-Channel TPD6E004RSER Texas Instruments +/-15 kV ESD Protection Array for High-Speed Data Interfaces, RSE0008A (UQFN-8) TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 C72, C73, C74, C112 10%, X7R, 0805 C102 3300pF CAP, CERM, 3300 pF, 50 V, C0603C332K5RACTU Kemet +/- 10%, X7R, 0603 SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 TPS6522x Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24 RES, 1.2 k, 5%, 0.063 W, CRCW04021K20JNED Vishay-Dale AEC-Q200 Grade 0, 0402 1.0Meg RES, 1.0 M, 5%, 0.063 W, CRCW04021M00JNED Vishay-Dale AEC-Q200 Grade 0, 0402 TPS6522x Evaluation Module SLVUCU6A – NOVEMBER 2023 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 Additional Information 5 Additional Information Trademarks Sitara ™ is a trademark of Texas Instruments. USB Type-C ® is a registered trademark of USB Implementers Forum. All trademarks are the property of their respective owners. 6 Related Documentation • Scalable PMIC's GUI User’s Guide •...
  • Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 27 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 28 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 29 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 30 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 31 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
