Mocka Vigo Entertainment Unit Assembly Instructions Manual

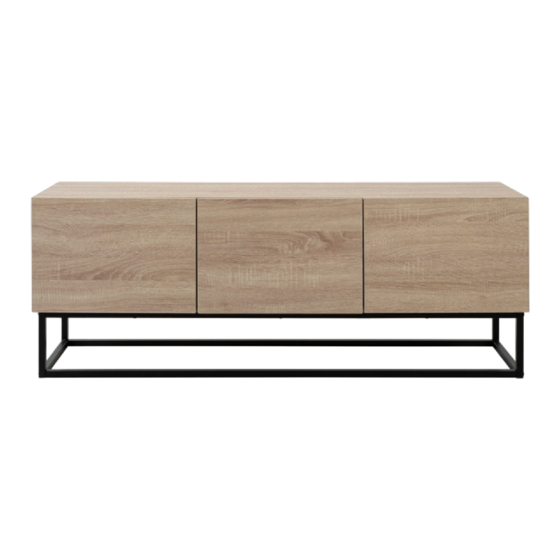

Vigo Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B
bolt & 30mm screw 12mm screw
locking nut x18
x16
G H
12mm screw hinge bracket
x3 x6
N O
bracket pin
x4 x4
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C D E
dowel 18mm screw
x16 x16 x8
I J K
washer brace socket
x8 x3 x3 x3
P
feet
x4
Hardware Supplied
F
14mm screw
x48
L M
WARNING:
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
pin
recommend these are used to prevent your product tipping. The
x4
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
F
14mm screw
x2
Any furniture that is not anchored to a wall has the
Q R
25mm screw wall plug
x2 x2
Wall Strap
S
wall strap
x2
1
