Vigo Tallboy
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt &
30mm
screw x16
nut x54
E
E3
E4
E1
E2
slide
rail x12
I
J
25mm
14mm
screw x2
screw x2

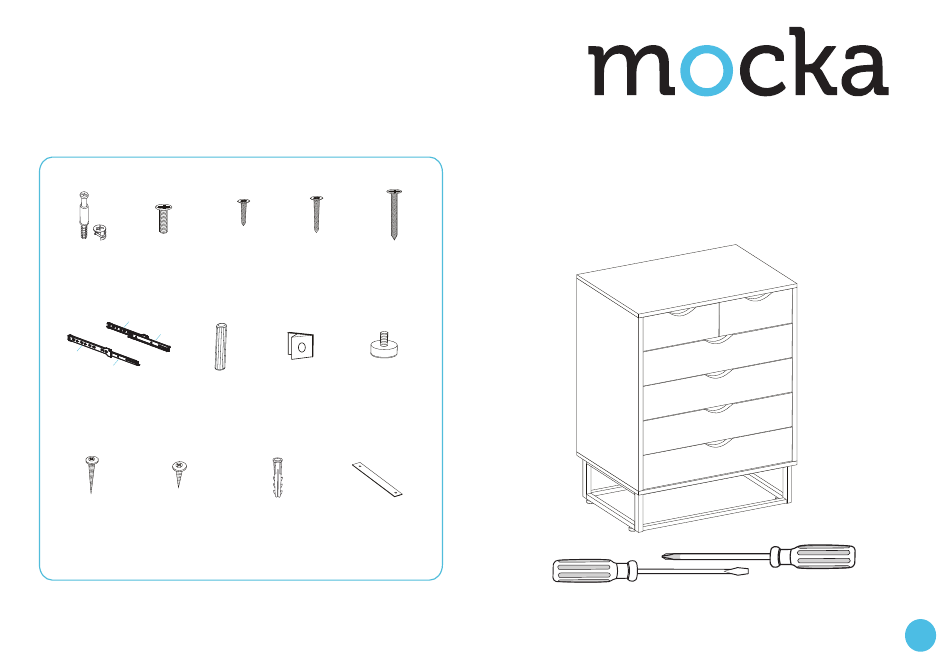

Hardware Supplied
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C1
C2
18mm
50mm
12mm
screw x30
screw x48
screw x10
F
G
H
dowel
wedge
feet
x10
x10
x4
L
K
wall
wall
anchor x2
strap x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
D
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are used to prevent your
product tipping. The fixing device provided should fit most wall types, but please note that
different wall materials may require different fixing devices from those supplied.
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
Advertisement
Related Manuals for Mocka Vigo Tallboy
Summary of Contents for Mocka Vigo Tallboy
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. use of a power drill on a low-speed setting. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Attach 4x feet (H) to the ends of the side leg panels. Attach the middle leg panels and side leg panels together as shown using 8x 30mm screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach 4x bolts (A) and 5x slide rail (E1) to panel [3] using 10x 12mm with a screwdriver. screws (C1). Attach 4x bolts (A) and 5x slide rail (E3) to panel [4] using 10x 12mm screws (C1). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 (C1). Attach 1x slide rail (E3) to the other side of panel [14] using 2x panel [13] to panels [3] and [4] using 4x locking nuts (A). Tighten with a 12mm screws (C1). Tighten with a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Attach panels [3] and [4] to panel [2] using 4x dowels (F) and 4x 50mm Attach 6x bolts (A) to the underside of panel [1]. screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Insert panel [5] down along the grooves between panels [3] and [4] to dowels (F) and 2x locking nuts (A). Tighten with a screwdriver. form the back of the unit. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 (D). Tighten with a screwdriver. nuts (A). Attach 1x slide rail (E2) to panel [7] and 1x slide rail (E4) to panel [8] with 4x 12mm screws (C1). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 [7] and [8] using 4x bolts & locking nuts (A). Attach 1x slide rail (E2) to panel [7] and 1x slide rail (E4) to panel [8] with 4x 12mm screws (C1). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 9 (L) to the back sides of panel [1] and secure with 2x 14mm screws not drag. (J). Fasten to wall using 2x wall anchors (K) and 2x wall screws (I). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
