Mocka Vibe Desk Assembly Instructions Manual

Vibe/Olsen Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C D
bolt locking dowel long
screw
x20 nut x20 x16
x20
I
J K
CL CR DL
runner runner runners
tracks x3 tracks x3 x3

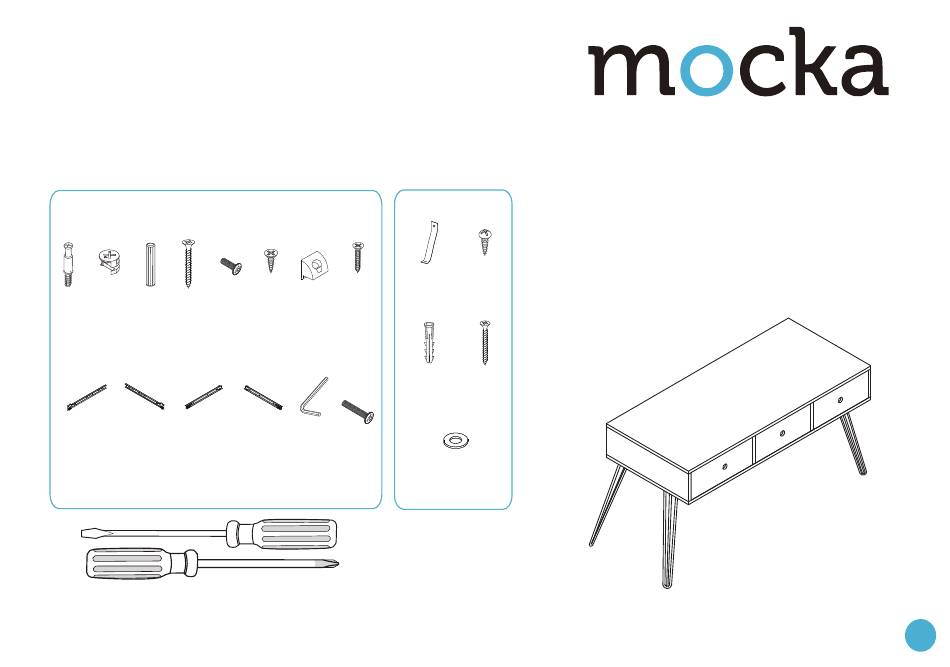

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
E F G H
bolt small wedge screw
x12 screw x4 x4
x30
L M N
DR
allen long
runners key bolt
x3 x1 x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
V W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
safety screw
materials may require different fixing devices from those supplied.
x1
strap x1
X Y
wall wall
anchor screw
x1
x1
Z
washer
x2
Wall Strap
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
