Mocka Vigo Shelf - Slim Assembly Instructions

Vigo Shelf - Slim

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

50mm

screw x32

screw x2

wall

safety

plug x2

strap x2

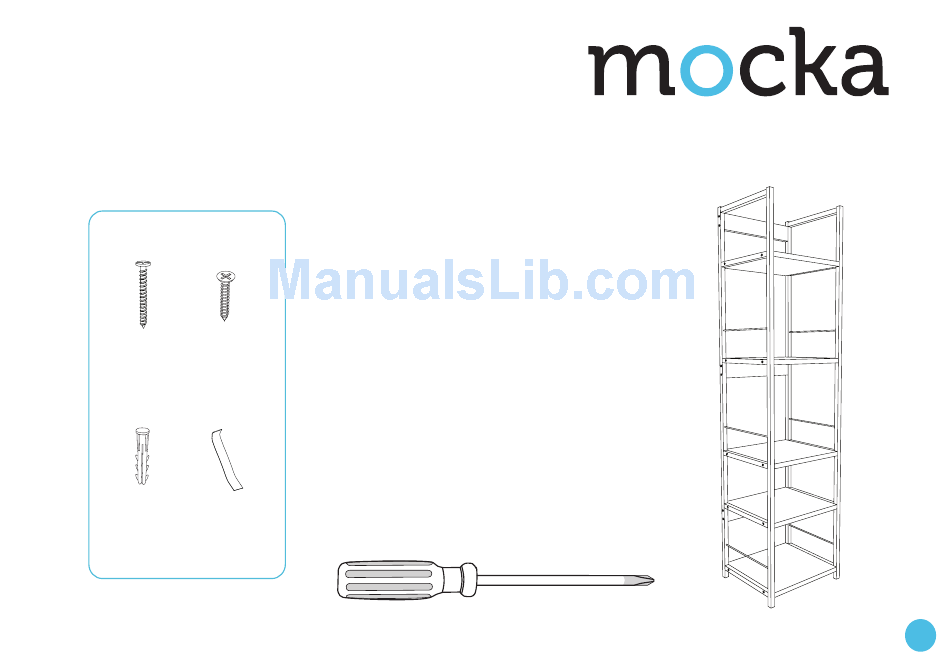

Hardware Supplied

mocka.co.nz | mocka.com.au

WARNING:

potential to tip over in certain circumstances, i.e. if a child

attempts to climb up on the furniture or in the event of an

earthquake. Accordingly, we recommend that all furniture is

anchored to a wall. We supply a free safety wall anchor with all

furniture sold and we recommend these are used to prevent

your product tipping. The fixing device provided should fit most

wall types, but please note that different wall materials may

require different fixing devices from those supplied.

25mm

To ensure longevity of the

wood please use a damp

cloth only for cleaning.

Avoid use of household

cleaners.

Any furniture that is not anchored to a wall has the

Phillips screwdriver required

Table of Contents

Do you have a question about the Vigo Shelf - Slim and is the answer not in the manual?

Page 1 Vigo Shelf - Slim Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Page 2 Vigo Shelf - Slim Assembly Instructions A x16 A x8 Bring together the legs of the shelf and attach the two lower back Attach the lowest shelf [1] and third shelf [1] using 4x screws (A) each. supports [2] with 4x screws (A) using a screwdriver. On the same level as the supports, attach a shelf [1] using 4x screws each.
Page 3 Vigo Shelf - Slim Assembly Instructions A x8 Attach the top shelf and the remaining support to the top with the last 8x Secure the other end of the safety strap (D) to the wall using 2x wall screws (A), using 2x of them to secure the wall strap (D) as shown. Check plugs (C) and 2x 25mm screws (B).
