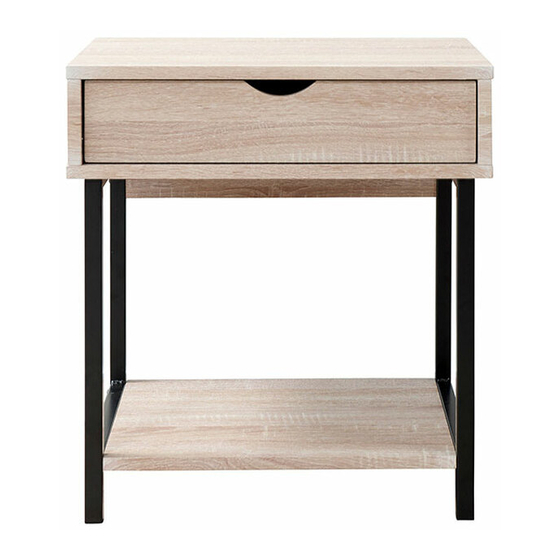

Vigo Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
25mm
bolt &
screw x4
nut set x18
G
F
25mm
dowel
screw x2
x8

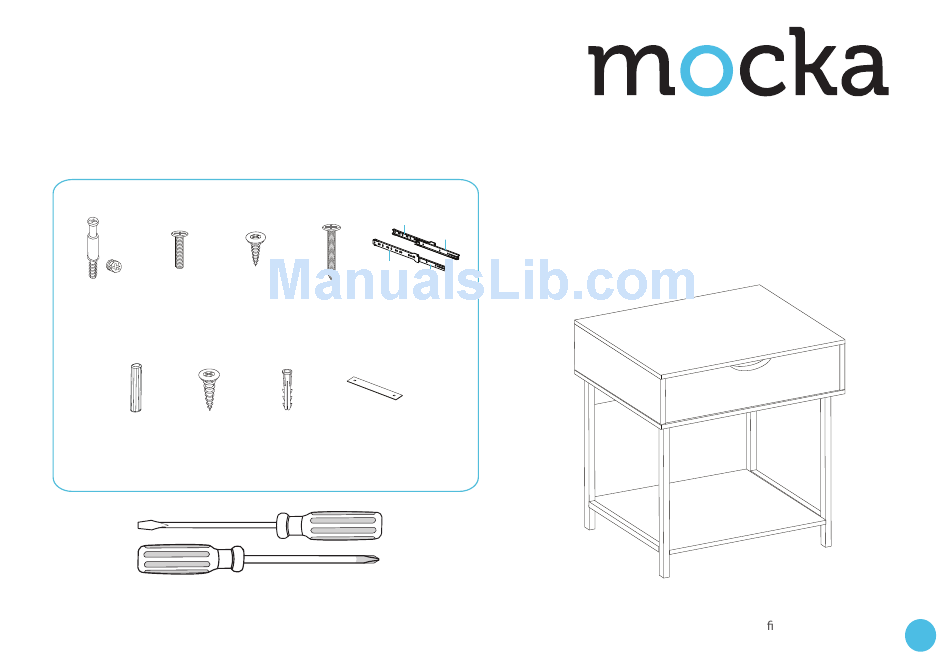

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
C
E3
E1
12mm
slide rail
50mm
screw x8
screw x16
H
I
wall
safety
anchor x2
strap x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
E
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
E4
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
E2
x2
*We recommend using a Flathead screwdriver to tighten
all locking nuts 100% before rst use.
1
Advertisement
Related Manuals for Mocka Vigo Bedside Table
Summary of Contents for Mocka Vigo Bedside Table
- Page 1 Vigo Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Vigo Bedside Table Assembly Instructions Attach 1x slide rail (E1) to panel [3] using 2x 12mm screws (C). Attach Attach panels [3], [4] and [5] together using 4x bolts (A) and secure using 1x slide rail (E3) to panel [4] using 2x 12mm screws (C). Tighten with a 4x locking nuts (A).
- Page 3 Vigo Bedside Table Assembly Instructions Attach panels [3], [4] and [5] to panel [2] using 4x dowels (F) and 2x Attach panel [1] to panels [3], [4] and [5] using 4x dowels (F) and 6x bolts bolts (A). Secure the bolts with 2x locking nuts (A) and 4x 50mm (A).
- Page 4 Vigo Bedside Table Assembly Instructions Attach panels [6] and [7] to the legs using 8x 50mm screws (D), while Attach panel [2] to the legs using 2x bolts (A) and secure with 2x locking securing the 2x safety straps (I) to the top as shown. Tighten with a nuts (A) and 4x 25mm screws (B).
- Page 5 Vigo Bedside Table Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawer Attach panels [9], [10] and [11] together using 4x 50mm screws (D). Attach 1x slide rail (E2) to panel [9] and secure with 2x 12mm screws Slide panel [12] along the grooves between the side panels to form the (C).
- Page 6 Vigo Bedside Table Assembly Instructions Insert the completed drawer as shown, ensuring it slides smoothly and Lift the furniture into the desired position, do not drag. Attach the other easily along the rails. end of the safety straps (I) to the wall using 2x wall plugs (H) and 2x 25mm screws (G).
