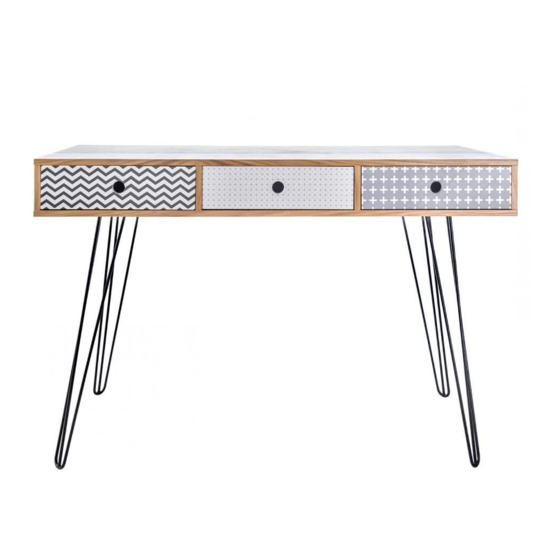

Vibe Desk
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
locking
dowel
bolt
nut x20
x16
x20
F
G
stopper
small
x3
screw x3

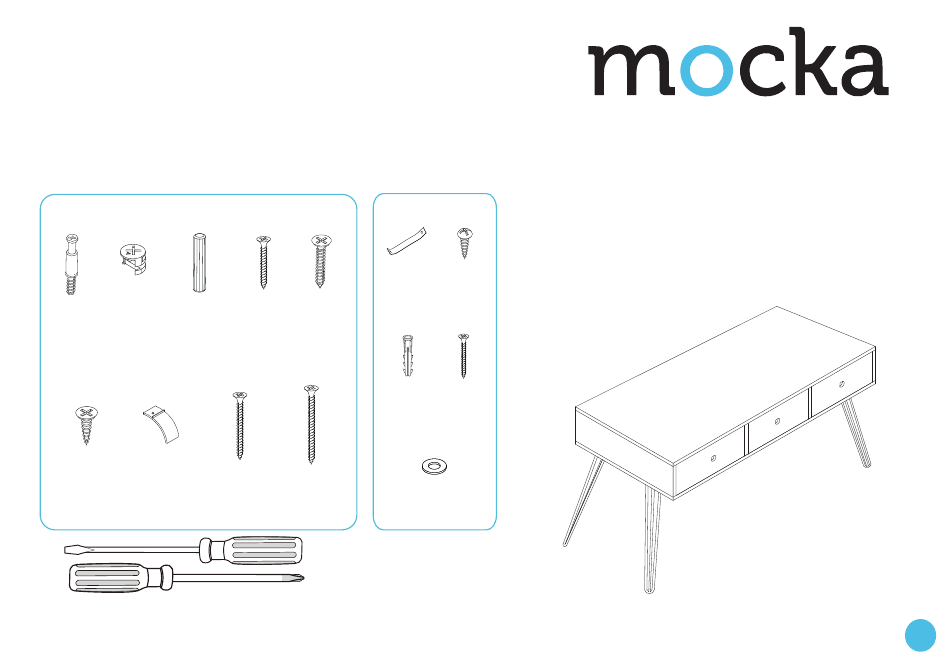

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
safety
strap x1
screw
screw
x12
x20
H
I
wall
anchor
screw
screw
x8
x11
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
V
W
in certain circumstances, i.e. if a child attempts to climb up on the furniture or in
the event of an earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all furniture sold and
we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials
screw
may require different fixing devices from those supplied.
x1
X
Y
wall
screw
x1
x1
Z
x2
washer
Wall Strap
Any furniture that is not anchored to a wall has the potential to tip over
1
Advertisement
Table of Contents
Related Manuals for Mocka Vibe Desk
Summary of Contents for Mocka Vibe Desk
- Page 1 Vibe Desk Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Vibe Desk Assembly Instructions Insert 8x bolts (A) and 8x dowels (C) into panel [1]. Attach panels [2], [3], [4] and [5] to panel [1] and secure with 8x locking nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 3 Vibe Desk Assembly Instructions Slide panel [7] between the grooves of panel [2] and [3]. Attach 3x Attach brace [13] to panel [6] and secure with 11x screws (I). Tighten stoppers (G) to the underside of panel [6] with 3x small screws (F).
- Page 4 Vibe Desk Assembly Instructions Drawers x3 Attach each leg [12] to panel [6] using 20x screws (E). Tighten with a Attach panels [8] and [14] to panel [11] using 4x bolts (A) and secure with screwdriver. 4x locking nuts (B). Tighten with a screwdriver.
- Page 5 Vibe Desk Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Slide panel [10] into place between the grooves of side panels [8] and Insert all completed drawers into the main unit. [14]. Attach rear panel [9] to the side panels and secure with 4x long screws (D).
- Page 6 Vibe Desk Assembly Instructions Wall Strap Strap Washer wall anchor wall screw strap Attach the safety strap (V) to the top of the back side of the unit using Lift the furniture into the desired location, do not drag. Attach the other 1x screw (W) and 1 x washer (Z).
