Vigo Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B2
A
B1
bolt & nut
30mm
12mm
set x32
screw x20
screw x16
F
G
H
I
dowel
hinge
wedge
feet
x24
x4
x8
x4
O
P
25mm
14mm
screw x2
plug x2
screw x2
Wall Strap
mocka.co.nz | mocka.com.au
C1
C2
18mm
14mm
screw x56
screw x8
screw x16
J
K
L
washer
stopper
bracket
x2
x2
x2

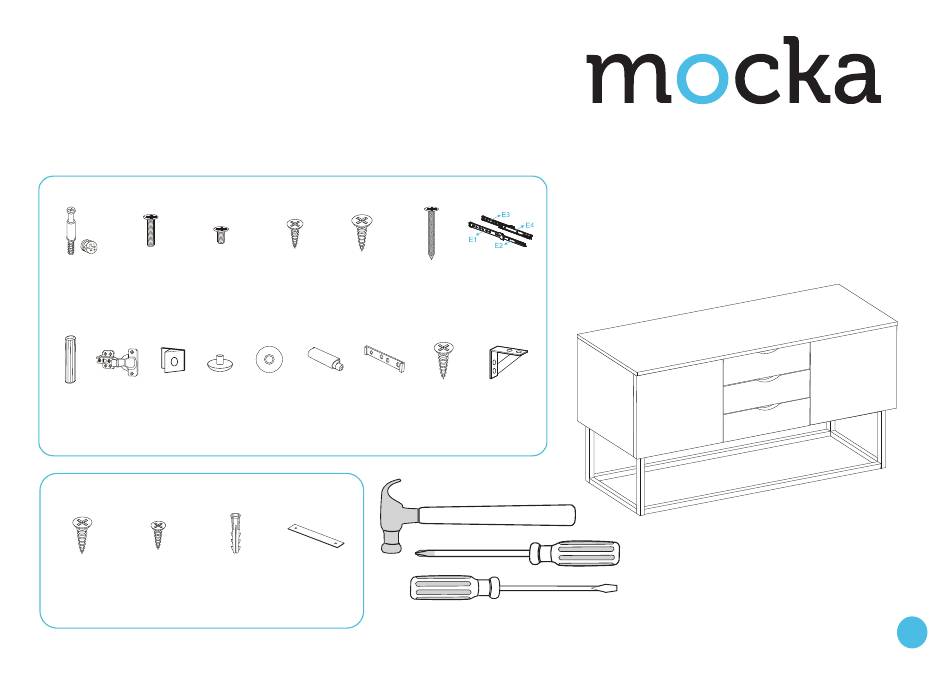

Hardware Supplied
Q
R
wall
wall
strap x2
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
D
E
over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
50mm
slide
rail x3
M
N
12mm
bracket
screw x2
x4
Any furniture that is not anchored to a wall has the potential to tip
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
Advertisement
Related Manuals for Mocka Vigo Buffet
Summary of Contents for Mocka Vigo Buffet
- Page 1 Vigo Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Vigo Buffet Assembly Instructions Insert 4x feet (I) into the leg side panels as shown. Attach the leg panels together as shown using 8x 30mm screws (B1). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 3 Vigo Buffet Assembly Instructions Attach 4x brackets (N) into the corners of the legs and secure using Attach 3x slide rails (E1) to panel [5] using 6x 14mm screws (C1). Attach 16x 12mm screws (B2). Tighten with a screwdriver. 3x slide rails (E3) to panel [6] using 6x 14mm screws (C1). Tighten with a screwdriver.
- Page 4 Vigo Buffet Assembly Instructions Insert 4x bolts (A) into panels [5] and [6]. Attach 1x bracket (L) to panel Attach panels [5] and [6] to panel [2] using 4x dowels (F) and 4x 50mm [5] and secure with 4x 14mm screws (C1). Attach 1x bracket (L) to screws (D).
- Page 5 Vigo Buffet Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [7] to panel [5] using 2x dowels (F) and 2x locking nuts (A) Insert 4x bolts (A) into panel [3] and panel [4]. as shown. Attach panel [7] to panel [6] using 2x dowels (F) and 2x locking nuts (A) as shown.Tighten with a screwdriver.
- Page 6 Vigo Buffet Assembly Instructions Attach panel [3] to panel [7] using 4x dowels (F) and 4x locking nuts (A). Slide panel [8] down along the grooves between panels [3] and [4]. Attach panel [4] to panel [7] using 4x dowels (F) and 4x locking nuts (A).
- Page 7 Vigo Buffet Assembly Instructions Insert 8x bolts (A) to panel [1]. Attach panel [1] to panels [3], [5], [6] and [4] using 8x dowels (F) and secure with 8x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 8 Vigo Buffet Assembly Instructions Attach 8x wedges (H) to the sides of panel [8] as shown, and secure Attach base panel [2] to the legs using 12x 20mm screws (B1). Tighten with 8x 18mm screws (C2). Tighten with a screwdriver.
- Page 9 Vigo Buffet Assembly Instructions NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting flush. Attach 1x washer (J) to panel [9] and secure with 1x 12mm screw (M).
- Page 10 Vigo Buffet Assembly Instructions Drawers x3 insert 4x bolts (A) into panel [11], then attach side panels [12] and [13] Attach panel [14] as shown using 4x screws (D). Attach 1x slide rail (E2) using 4x locking nuts (A). Slide panel [15] along the grooves between to panel [12] and 1x slide rail (E4) to panel [14].
- Page 11 Vigo Buffet Assembly Instructions Insert the completed drawers as shown, ensuring they slide smoothly and easily along the rails. Attach 2x safety straps (R) to the back side of the unit using 2x 25mm screws (P). Lift the furniture into the desired position, do not drag. Attach the other end of the safety straps to the wall using 2x wall plugs (Q) and 2x 25mm screws (O).
