Upgrading the MERLIN LEGEND MAIL System
6. Unplug the voice-port card by sliding it out all of the way.
7. Install the upgrade voice-port card by sliding the card into the card slots,
and seating it in the MERLIN LEGEND MAIL module (Figure 3-1). Do not
push on the two handles; instead, push on the center of the plastic cover.

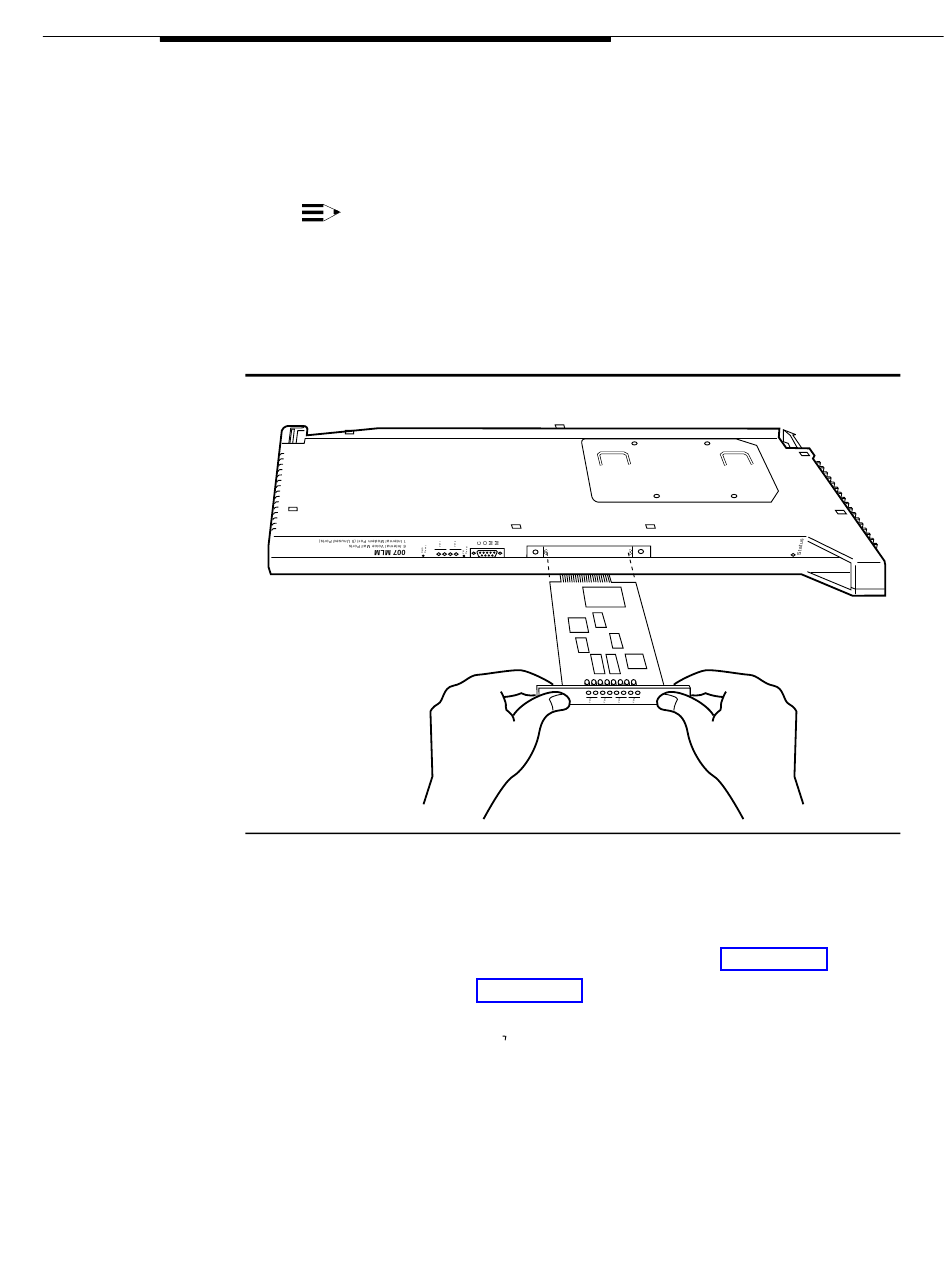

Figure 3-1. Sliding Voice-Port Card into Module
8. After the voice-port card is seated correctly, push down on the two plastic
handles. You should hear a click when each handle is in place.
9. Reinstall the MERLIN LEGEND MAIL module. See Appendix C.
10. Restore the slot. See Appendix B.
11. Administer the new ports on the MERLIN LEGEND system. Refer to
Chapter 4 of the MERLIN MAIL® Voice Messaging System Release 3
Planning, Installation, and Use (AT&T 585-320-142) .
NOTE:
The voice-port card must be correctly oriented to be installed
properly. If the card stops about 3/8 of an inch prior to being seated,
it is not installed properly. (It is probably installed upside down.) If
this occurs, remove the voice-port card, rotate it, and then try to
install the voice-port card again.
