Introduction
Description of the Six-Port MERLIN LEGEND
MAIL System
The six-port MERLIN LEGEND MAIL system includes the base module, hard
disk, which provides 21 hours of message storage, and voice ports. The four-
port expansion voice-port card required for this system is shown in Figure 1-3.

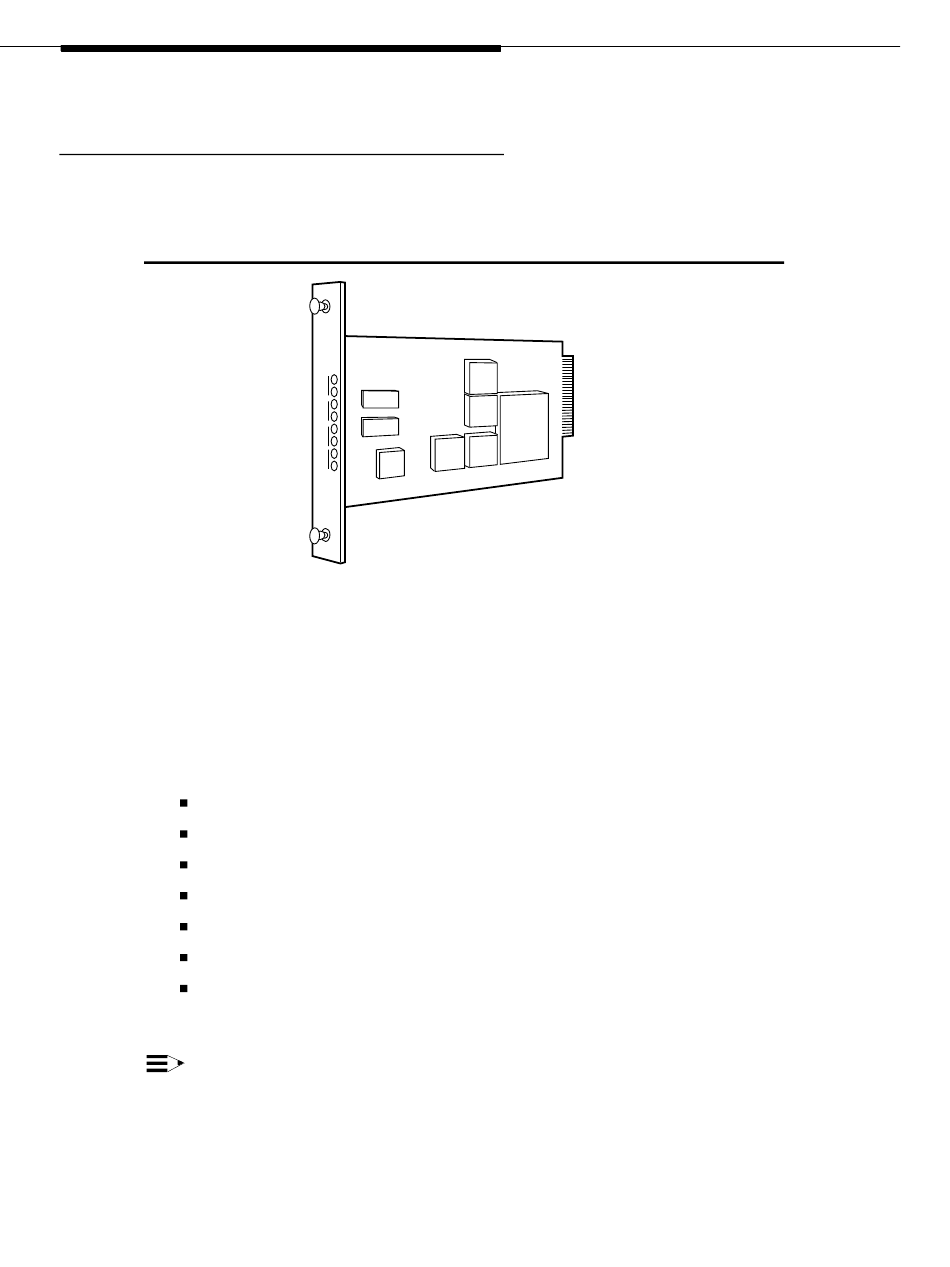

Figure 1-3. Four-Port Voice-Port Expansion Card
Port Assignments
The ports on the six-port MERLIN LEGEND MAIL system are assigned as
follows:
port 1 - voice mail
port 2 - voice mail
port 3 - voice mail
port 4 - voice mail
port 5 - voice mail
port 6 - voice mail
port 7 - remote maintenance device
Ports 8 through 12 are not installed.
NOTE:
The ports on a MERLIN LEGEND MAIL module are numbered from top to
bottom (that is, port 1 is the top-most port on the module).
1-6
VM3
VM4
VM5
VM 6
