CHAPTER 9: PARTS REPLACEMENT GUIDE
9.10 FLY WHEEL SET REPLACEMENT - CONTINUED

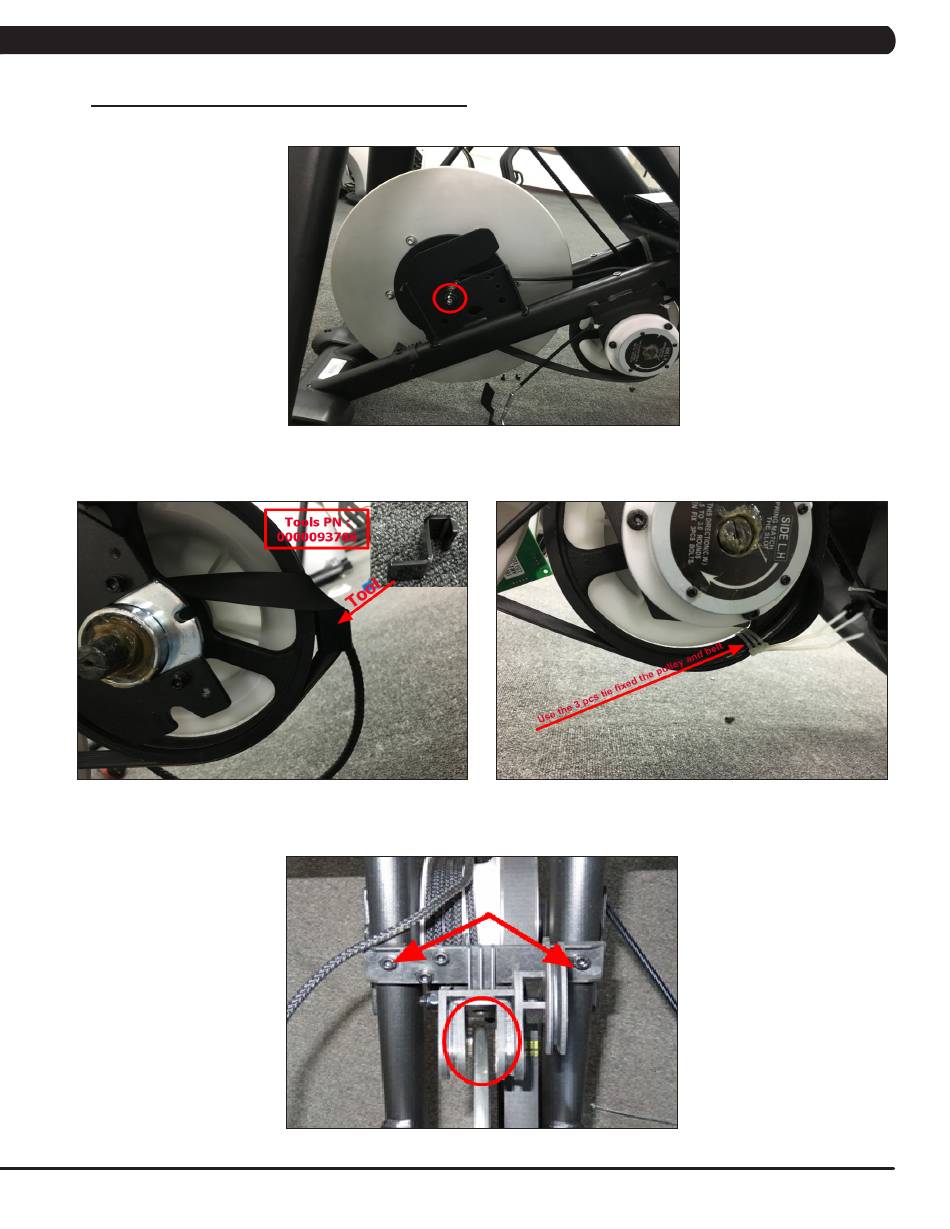

6) Tighten the fly wheel screws to 400kgf-cm (Figure E).
FIGURE E
7) When the belt pulley set is fixed, put the belt installation tool on the pulley, turn the pulley until the belt is installed (Figure F & G).
Note: Please refer to 9.9 for installation steps.
FIGURE F
FIGURE G
8) Install the ECB set as outlined in Section 9.6 (Figure H).
FIGURE H
