Matrix VS-S72 Seated Leg Curl Owner's Manual

Versa single-station strength
Hide thumbs Also See for VS-S72 Seated Leg Curl:

Advertisement

Table of Contents

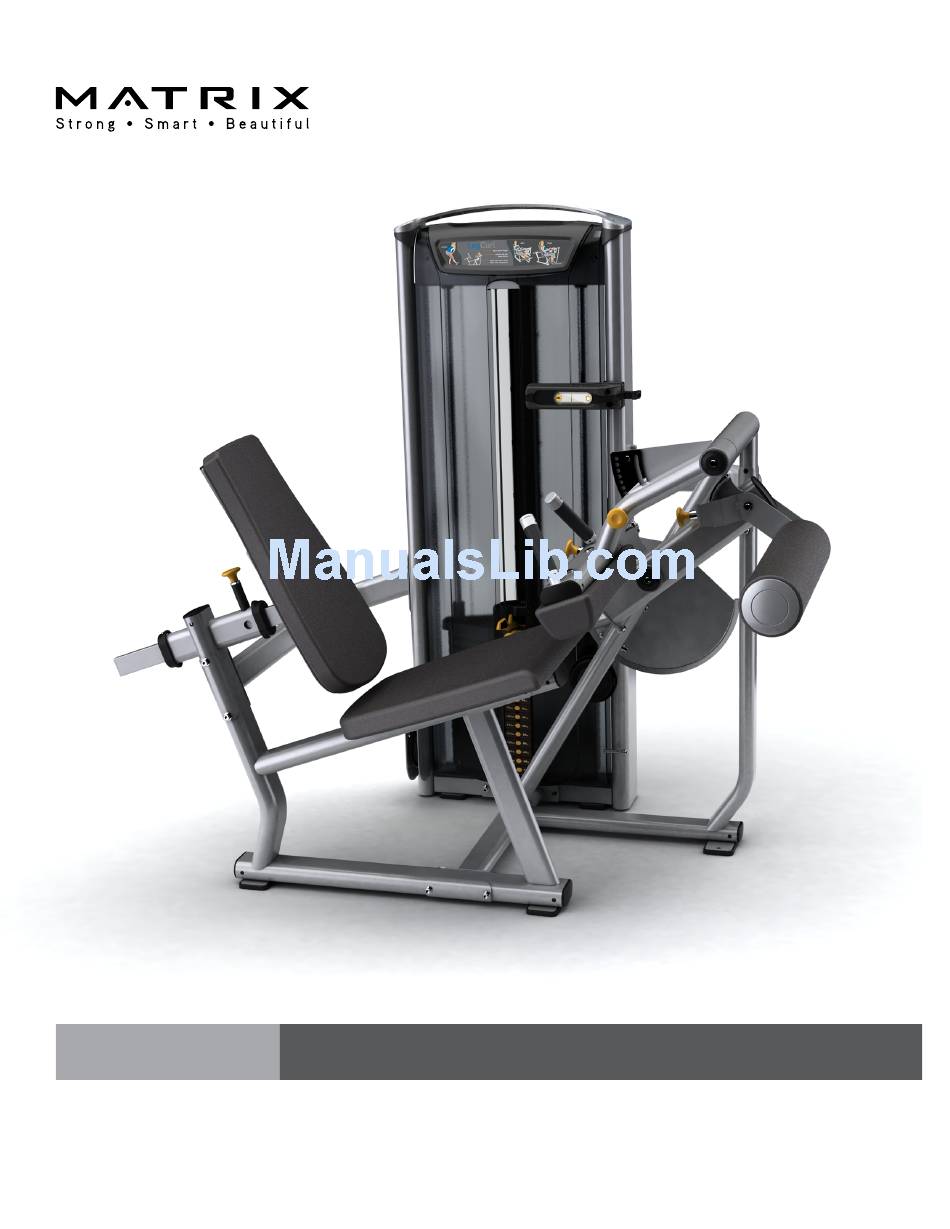

OWNERS MANUAL
Versa Single-Station Strength
VS-S72 Seated Leg Curl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S72 Seated Leg Curl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix VS-S72 Seated Leg Curl

Summary of Contents for Matrix VS-S72 Seated Leg Curl

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S72 Seated Leg Curl...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ..........5 Assembly Information ................6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 User Frame Assembly ............10 Part 2 CAM Assembly ..............12 Part 3 Weight Stack to User Frame Assembly ......

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis- ing personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 71”L X 45”W X 66”H Light Stack = 556 lbs (253 kg), Heavy Stack = 606 lbs (275 Weight Shipping weight 406 lbs (184 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION Inner User Frame M10 Nylock Nut M10 Flat Washer Outer User Frame Wide Cupped Flange M10 X 125L Socket Head Cap Screw Middle Connecting Tube M10 X 80L Socket Head Cap Screw M10 X 15L Socket Head Cap Screw M10 Large Flat Washer (Ø42 mm) Key (8 x 10mm) Wave Washer...
  • Page 9 Parts List DESCRIPTION Back Pad Adjustment Tube Plug Thigh Pad Adjustment Assembly Thigh Pad Black Pivot Cover Front Shroud Rear Shroud M8 X 25L SHC Large M8 Flat Washer (Ø20 mm) Top Cap Top Cap Cover PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Pull Grip...

  • Page 10: Part 1 User Frame Assembly

    ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 1 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Inner User Frame M10 Nylock Nut M10 Flat Washer Outer User Frame Wide Cupped Flange M10 X 125L SHC Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 2 | USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Nylock Nut M10 Flat Washer Wide Cupped Flange M10 X 125L SHC Mid Connecting Tube M10 X 80L SHC Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .

  • Page 12: Part 2 Cam Assembly

    ASSEMBLY PART 2: CAM ASSEMBLY STEP 1 | CAM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 15L SHC Ø M10 Flat Washer ( 42 mm) Key (8 X 10 mm) Wave (Spring) Washer Ø Ø Flat Washer ( 45 mm OD/ 30 mm ID) Axle/ROM Assembly 10 11...

  • Page 13: Part 3 Weight Stack To User Frame Assembly

    ASSEMBLY PART 3: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC 3 16 Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 14 ASSEMBLY PART 3: STACK & USER FRAME ASSEMBLY STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Nylock Nut M10 Flat Washer M10 X 125L SHC Wide Cupped Flange M10 X 20L SHC Rear Connecting Tube Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 15 ASSEMBLY PART 3: STACK & USER FRAME ASSEMBLY STEP 3 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Nylock Nut M10 Washer M10 X 20L SHC Narrow Cupped Flange M10 X 100L SHC Install the user frame hardware as shown. Torque all M10 Frame Hardware on pages 9 through 14 to: 77 N-m/57 ft/lbs.

  • Page 16: Part 4 Cable Assembly

    ASSEMBLY PART 4: CABLE ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES View A Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 17: Part 5 Ankle Pad Assembly

    ASSEMBLY PART 5: EXERCISE ARM ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Ø M10 Flat Washer ( 42 mm) M10 X 20L SHC Exercise Arm Orange Pivot Indicator Counter Weight Ø M8 Flat Washer ( 15.5 mm) M8 X 15L SHC 20 10...
  • Page 18 ASSEMBLY PART 5: EXERCISE ARM ASSEMBLY STEP 2 | ANKLE ARM & PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Nylock Nut M10 Flat Washer M10 X 100L SHC M8 X 15L SHC Axle Ankle Pad Weldment Ankle Pad Ø M8 Washer ( 60 mm) End Cap...

  • Page 19: Part 6 Pad Assembly

    ASSEMBLY PART 6: PAD ASSEMBLY STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
  • Page 20 ASSEMBLY PART 6: PAD ASSEMBLY STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 80L SHC Back Pad Back Pad Mounting Tube M10 X 75L SHC Back Pad Adjustment Tube Assemble Back Pad to Mount- ing Tube, Torque hardware to 57 N-m/41 ft-lbs.
  • Page 21 ASSEMBLY PART 6: PAD ASSEMBLY STEP 3 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES 3. Remove Limit Pin. 4. Raise Pull Pin to assemble entire Back Pad assembly. 5. Re-assemble Limit Pin.

  • Page 22: Part 7 Thich Pad Assembly

    ASSEMBLY PART 7: THIGH PAD ASSEMBLY STEP 1 | THIGH PAD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L Plug Thigh Pad Adjustment Assembly Thigh Pad Torque hardware to 57 N-m/41 ft-lbs.
  • Page 23 ASSEMBLY PART 7: PAD ASSEMBLY STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Ø M10 Flat Washer ( 42 mm) M10 X 20L SHC Black Pivot Cover...

  • Page 24: Part 8 Plastics Assembly

    ASSEMBLY PART 8: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
  • Page 25 ASSEMBLY PART 8: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs.
  • Page 26 ASSEMBLY PART 8: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 27: Part 9 Premium Kit Assembly

    ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter.
  • Page 28 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 29 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
  • Page 30 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 31 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39 N-m (29 ft-lbs.).
  • Page 32 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.
  • Page 33 ASSEMBLY PART 9: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the four pull pins using an adjustable wrench, and replace with the Premium pull pins making sure that the pull pin lengths are correct for each application. (5P).
  • Page 36 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Seated Leg Curl Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
