Summary of Contents for Matrix RXP

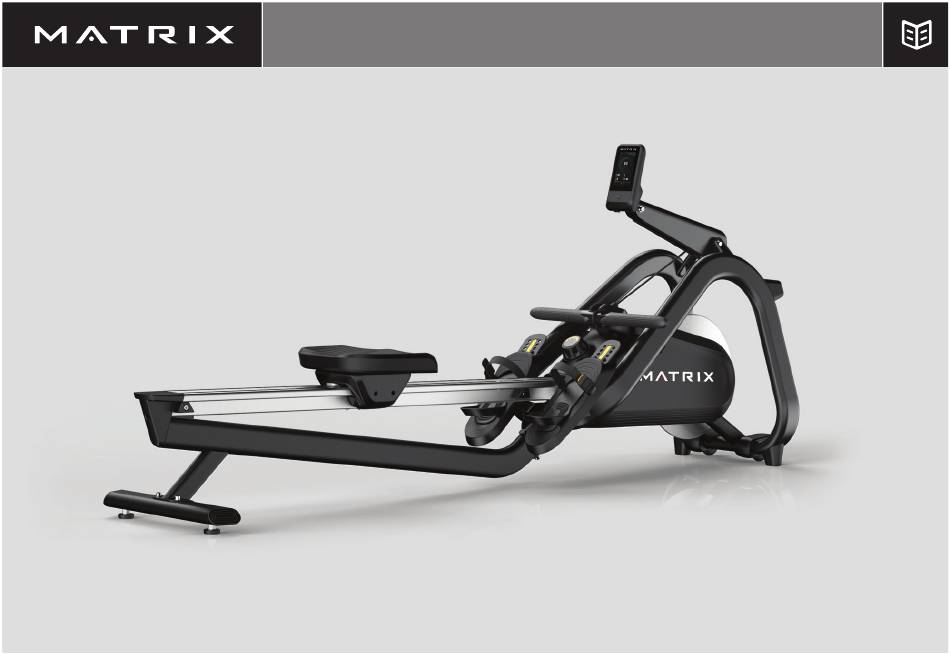

  • Page 1 R XP R XP-WF R XP-WFRF...

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS It is the sole responsibility of the purchaser of Matrix Fitness Systems products to instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. See “Product Specifications” (next page) for product specific features. The Matrix Rower is intended for commercial use.

  • Page 4: Daily Maintenance

    Monorail Aluminum * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. Product specifications are subject to change without notice.
  • Page 5 CONSOLE ABRASION-RESISTANT CORD FRONT FRAME CONSOLE BRACKET ARM ERGO HANDLE STORAGE FEET RESISTANCE KNOB FLYWHEEL WIDE COMFORT SEAT TRANSPORT WHEELS MONORAIL FRONT FOOT REAR STABILIZER SIDE SHROUD FOOT STRETCHER ADJUSTABLE HEEL CUP REAR FRAME LEVELING FEET...
  • Page 6 UNPACKING STORAGE Thank you for purchasing a MATRIX Fitness product. It is inspected before it is CAUTION packaged. It is shipped in multiple pieces to facilitate the compact packaging Caution should be used when storing rowers in an upright of the machine. Prior to assembly, confirm all the components by matching storage position.
  • Page 7 Black Hardware Pack Orange Hardware Pack Description Description Bolt Flat Washer Bolt Arc Washer Note: Tighten hardware from step 2 using the Torque Value: 24.5 Nm / 18 ft-lb Rotate console mast up 30 degrees...
  • Page 8 Red Hardware Pack Description Bolt Flat Washer Arc Washer Note: Tighten hardware from step 4 using the Torque Value: 39.2 Nm / 29 ft-lb...
  • Page 9 White Hardware Pack Pre-installed Hardware Note: Tighten hardware from step 6 Description Description using the Torque Value: Bolt Flat Washer 24.5 Nm / 18 ft-lb Stopper Left Note: Stopper Right Bushing Tighten hardware from step 5 Bolt using the Torque Value: 24.5 Nm / 18 ft-lb ASSEMBLY COMPLETE!

  • Page 10: Home Screen

    HOME SCREEN DEFAULT SCREEN (500M SPLIT)

  • Page 11: Console Operation

    CONSOLE OPERATION The RXP has a fully integrated touch screen display. All information required for SIGN IN (RXP-WF, RXP-WFRF) workouts is explained on screen. Exploration of the interface is highly encouraged. 1) Enter your XID and touch A) POWER BUTTON: Press to wake display/power on. Press and hold for 3 seconds 2) Enter your PASSCODE and touch to put display to sleep.

  • Page 12: Led Lights

    LIGHTS OFF. The color indicators are: BLUE = below target, GREEN = on target, RED = above target. MANAGER MODE To enter manager mode, press and hold the MATRIX logo in the center of the screen for 10 seconds. Then enter 1001 and touch POWER ACCURACY This rower displays power on the console.

  • Page 13: Proper Usage

    GETTING STARTED Heart rate monitoring systems may be inaccurate. Over exercising may result Read the Owner’s Manual before setting up the Matrix Rower. Place the unit in serious injury or death. If you feel faint, stop exercising immediately. where it will be used before beginning the setup procedure.
  • Page 16 RXP RXP-WF RXP-WFRF Part # 1000411970 © 2018 Johnson Health Tech Rev 1.0 A...
