Table 27: AC Power Cord Specifications

Country
Australia
China
Europe (except Denmark,
Italy, Switzerland, and
United Kingdom)
Italy
Japan
North America
United Kingdom
232
All manuals and user guides at all-guides.com
Table 27 on page 232 provides specifications and Figure 96 on page 232 depicts the plug
on the AC power cord provided for each country or region.
Model Number
CBL-M-PWR-RA-AU
CBL-M-PWR-RA-CH
CBL-M-PWR-RA-EU
CBL-M-PWR-RA-IT
CBL-PWR-RA-JP15
CBL-M-PWR-RA-JP
CBL-PWR-RA-US15
CBL-M-PWR-RA-TWLK-US
CBL-M-PWR-RA-UK

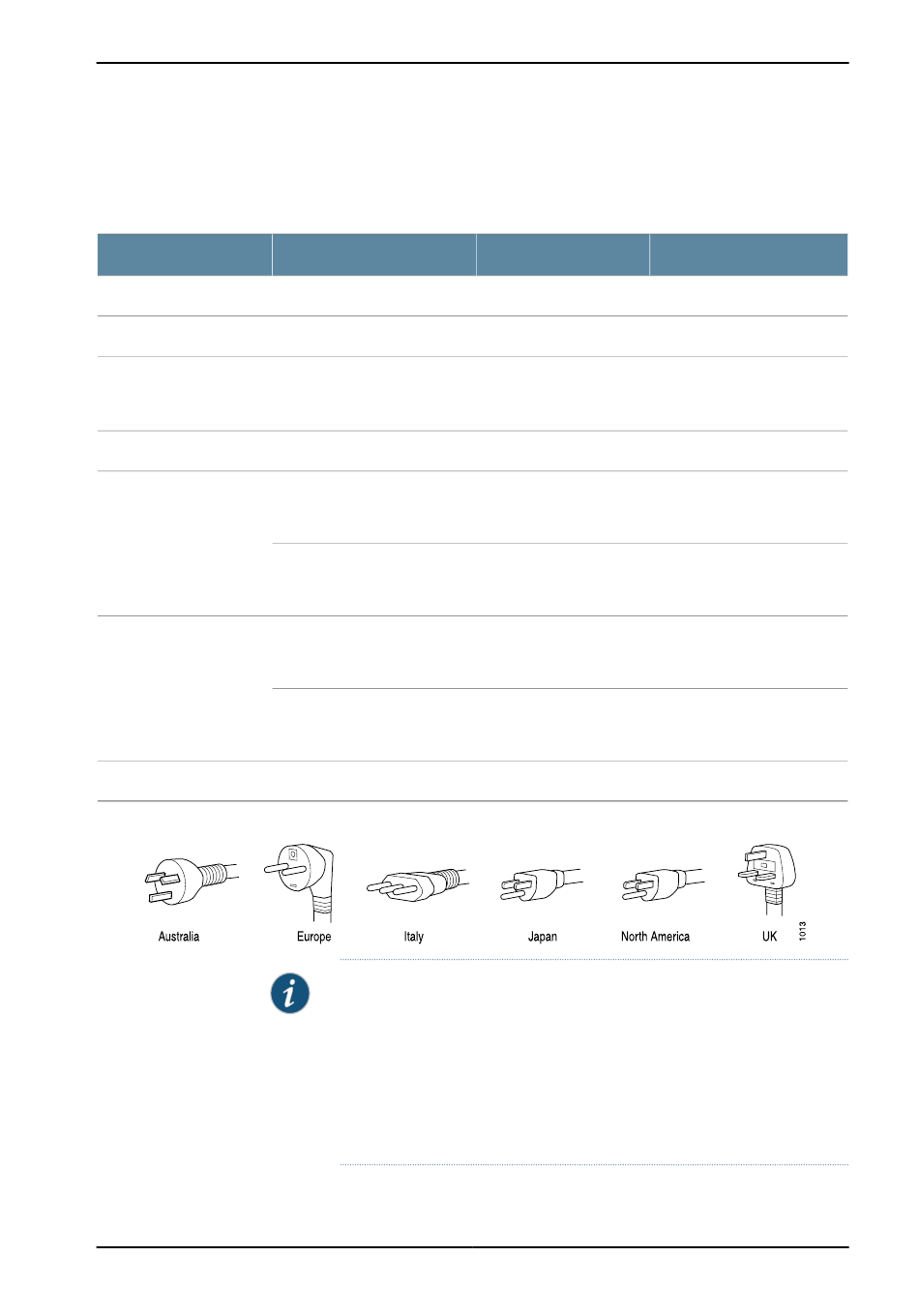

Figure 96: M120 AC Plug Types

NOTE: If you plan to operate a maximally configured AC-powered router, we
recommend that you provision at least 33 A @ 240 VAC (11 A per inlet) for
the system, or at least 11 A maximum @ 240 VAC for each power supply. Use
a facility circuit breaker rated for 20 A, 125/250 VAC minimum for each AC
power supply. Doing so enables you to operate the router in any configuration
without upgrading the power infrastructure.
In North America and Japan, use both inlets for 125 VAC.
Electrical Specification Plug Type
240 VAC, 50 Hz AC SAA/3
220 VAC, 50 Hz AC PSB-10
220 or 230 VAC, 50 Hz AC CEE 7/7
230 VAC, 50 Hz AC CEI 23-16/VII
125 VAC, 50 or 60 Hz AC JIS 8303
Two required
220 VAC, 50 or 60 Hz AC NEMA L6-20P
One required
120 VAC, 60 Hz AC NEMA 5-15P
Two required
250 VAC, 60 Hz AC NEMA L6-20P
One required
240 VAC, 50 Hz AC BS89/13
