Copyright © 2010, Juniper Networks, Inc.
All manuals and user guides at all-guides.com

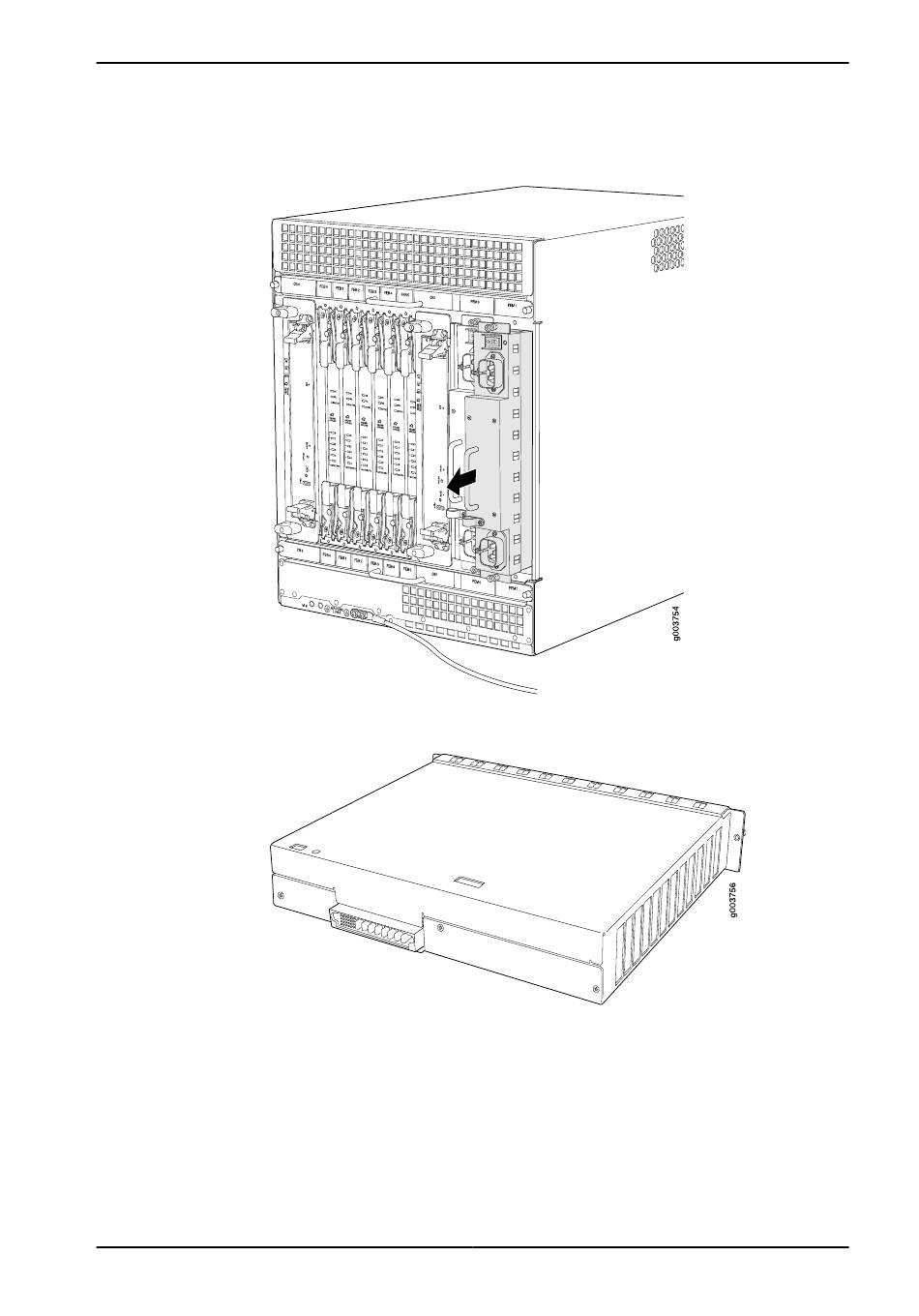

Figure 87: Removing an M120 AC Power Supply
Figure 88: Rear of the M120 Power Supply Showing Midplane Connector
Installing an M120 AC Power Supply
To install an AC power supply (see Figure 89 on page 177):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
1.
the strap to one of the ESD points on the chassis.
Move the power switch on the power supply faceplate to the standby position.
2.
Chapter 14: Replacing M120 Hardware Components
175
