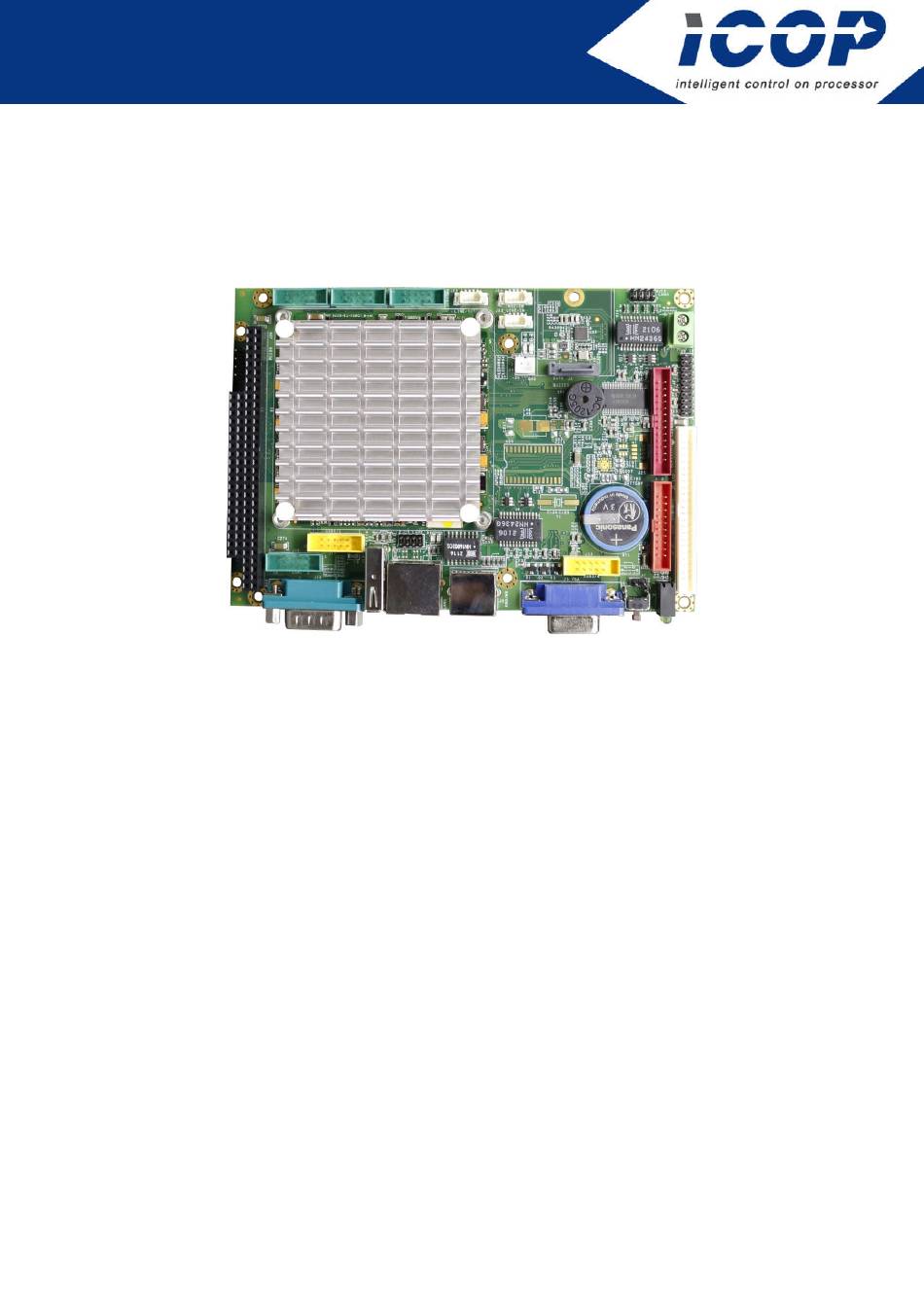

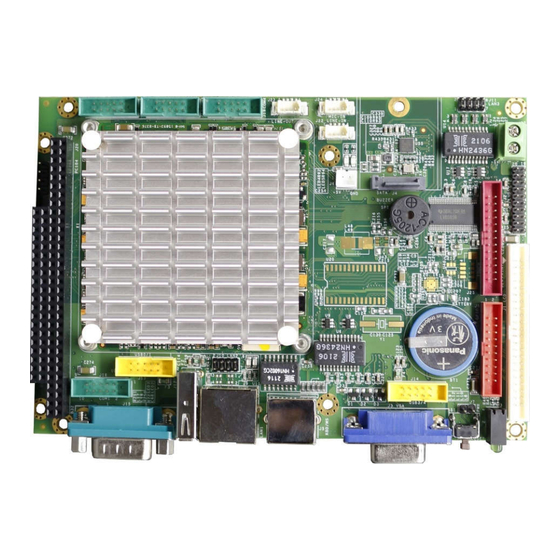

  • Page 1 User Manual VDX3-6726-V2 with DM&P Vortex86DX3 1GHz processor Version 3.0...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. Copyright ⓒ 2016 ICOP Technology Inc Trademarks Acknowledgement Vortex86DX3 is the registered trademark of DM&P Electronics Inc.
  • Page 3 Remark June 13, 2016 First version release June 8, 2017 New Add: Working temperature for Dual Core version Change P/N to VDX3-6726-V2 due to Audio codec August 30, 2022 changes to ALC888S and GbE controller changes RTL8111H ICOP Technology Inc.

  • Page 4: Table Of Contents

    J6: DC 5V output ........................... 10 J7: REST ............................10 J8: GPIO (Port 0/1) ........................10 J9: LAN 1 (RJ45) ..........................10 J10: LAN 2 ............................. 10 J11: LAN 3 ............................. 10 J12: USB2 ............................10 J13: USB0&1 ..........................11 ICOP Technology Inc.
  • Page 5 J26: Parallel ............................ 13 J27: Power Connector ........................13 System Mapping ..........................14 Software Resources ................... 17 3.1 ICOP Technical Resource Website ....................17 3.2 Vortex86 Processor Programming Guide ..................17 Technical support ....................18 4.1 LCD ............................18 Introduction ........................18 4.1.1...
  • Page 6 VDX3-6726-V2 User Manual 4.2.6 Advanced PCI/PnP Setting ....................25 4.2.7 ACPI Enable ........................26 4.2.8 LCD Panel Setting ........................ 27 Appendix ........................29 Stacking Solution for Daughter Board ....................29 Warranty ........................30 ICOP Technology Inc.

  • Page 7: General Information

    The VDX3-6726 is suitable for broad range of data-acquisition, industrial automation, process control, automotive controller, AVL, intelligent vehicle management device, medical device, human machine interface, robotics, machinery control and more 1.2 Block diagram ICOP Technology Inc.

  • Page 8: Specifications

    2-pin box header for DC 5V output x1 7-pin SATA connector for SATA DOM x1 RJ45 connector for GbE x1 15-pin D-Sub female connector for VGA x1 9-pin D-Sub male connector for RS232 x1 PS/2 connector for Keyboard/Mouse x1 ICOP Technology Inc.
  • Page 9 * If you are using Win CE compact 7, you will need to rebuild your image with new driver in order to make RTL8111H to work. ** Microsoft has stopped supporting Win CE 6.0 since 2013 so there is no driver support for RTL8111H. ICOP Technology Inc.

  • Page 10: Ordering Information

    Touch Dual Name onboard Onboard Function Core VDX3-6726-V2-1G VDX3-6726-V2-2G VDX3-6726-V2-2C-1G VDX3-6726-V2-2C-2G VDX3-6726-V2-1G-T VDX3-6726-V2-2G-T VDX3-6726-V2-2C-1G-T VDX3-6726-V2-2C-2G-T CABLE-SET-6726 1.4.2 Cable Set Product Name Contents NET4X2 (2.0) x2 PRINT(2.0) x1 CABLE-SET-6726 RS232(2.0) x4 Audio Line x2 GPIO(2.0) x1 USB(2.0) x2 ICOP Technology Inc.

  • Page 11: Sata Dom

    User Manual 1.4.3 SATA DOM Product Name 0℃ ~ +70℃ -40℃ ~ +85℃ SDM-SST-2G-H-M SDM-SST-4G-H-M ISATA-8G-H-M ISATA-16G-H-M ISATA-32G-H-M ISATA-4G-H-M-X ISATA-8G-H-M-X ISATA-16G-H-M-X ISATA-32G-H-M-X ISATA-1G-H-S ISATA-2G-H-S ISATA-4G-H-S ISATA-8G-H-S ISATA-16G-H-S SDM-SST-4G-H-S-X SDM-SST-8G-H-S-X ISATA-16G-H-S-X Demonstration of “SDM-SST” SATA DoM on VDX3-6726-V2 ICOP Technology Inc.

  • Page 12: Hardware Information

    VDX3-6726-V2 User Manual 2 Hardware Information 2.1 Dimension ICOP Technology Inc.

  • Page 13: Board Outline

    USB4 has no function by default. It only works under DOS when CH375 (DOS hot SWAP support IC) is equipped. Any other OS are not supported. PS/2 Mouse will be disabled when Touch function (optional) is selected. ICOP Technology Inc.

  • Page 14: Connector And Jumper Summary

    Wafer, 1.25mm, 4x1 Touch screen connector (Optional) Wafer, 1.25mm, 4x1 Parallel Box Header, 2.0mm, 13x2 Power Connector Terminal Block, 5.0mm, 2x1 PWER Power Active LED(Red) LED-SMD LED3 LAN Link/Active LED(Green) LED-SMD LED4 LAN Duplex LED(Yellow) LED-SMD Buzzer ICOP Technology Inc.

  • Page 15: Pin Assignments & Jumper Settings

    Pin# Signal Name Pin # Signal Name +3.3V +3.3V VCC3(3.3V) VCC3(3.3V) CLK- CLK+ J3: VGA Pin# Signal Name Pin # Signal Name R OUT G OUT B OUT LCLK LHSYNC DDCDAT LVSYNC HSYNC VSYNC LBACKL LVDDEN DDCLK ICOP Technology Inc.

  • Page 16: J4: Sata Dom

    J8: GPIO (Port 0/1) GRX+1 GTXC+1 GTXC-1 GRX-1 GRXD+1 GRXD-1 Pin# Signal Name Pin # Signal Name J12: USB2 GP00 GP10 GP01 GP11 Pin# Signal Name GP02 GP12 GP03 GP13 GP04 GP14 USB_DATA+ GP05 GP15 USB_DATA- GP06 GP16 GP07 GP17 ICOP Technology Inc.

  • Page 17: J13: Usb0&1

    USB4 only works under DOS when CH375 (DOS hot SWAP J18: COM4 support IC) is equipped. Any other OS are not supported. For more (RS232/485 or optional TTL/P7) detail, please contact ICOP sales. Pin# Signal Name Pin # Signal Name...

  • Page 18: J20A: Pc/104 Connector - 64 Pin

    SMEMR* DRQ5 SA18 IOW* DACK6* SA17 IOR* DRQ6 SD10 SA16 DACK3* DACK7 SD11 SA15 DRQ3 DRQ7 SD12 SA14 DACK1* SD13 SA13 DRQ1* MASTER* SD14 SA12 REFRESH* SD15 SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2* BALE ICOP Technology Inc.

  • Page 19: J21: Dc Power Output

    LOUTL SLIN- J24: MIC-in Pin# Signal Name MICVREF ACK- BUSY MIC-IN SLCT J25: Touch screen connector J27: Power Connector Pin# Signal Name Pin# Signal Name **Onboard SPI ROM (optional) won’t be available when Touch function is selected. ICOP Technology Inc.

  • Page 20: System Mapping

    000E0000 – 000EFFFF USB Legacy SCSI ROM space 000F0000 – 000FFFFF Motherboard BBIOS FEFDBC00 – FEFDBCFF Standard OpenHCD USB Host Controller FEFBB400 – FEFBB4FF Onboard Ethernet Adapter FEFDB800 – FEFDBFFF Standard Enhanced PCI to USB Host Controller ICOP Technology Inc.
  • Page 21 DMA High page register 0490h – 0499h Instruction counter register 04D0h – 04D1h 8259 Edge / level control register 0CF8h – 0CFFh PCI configuration port DE00h – DEFFh On board LAN FC00h – FC05h SPI Flash BIOS control register ICOP Technology Inc.
  • Page 22 Real Timer Clock IRQ9 ACPI IRQ10 Serial Port 3 IRQ11 Serial Port 4 IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Multimedia Device IRQ15 Hard Disk Controller #2 DMA Mapping Address Description Usage DMA0 DMA1 DMA2 DMA3 DMA4 DMA5 DMA6 DMA7 ICOP Technology Inc.

  • Page 23: Software Resources

    VDX3-6726-V2 User Manual 3 Software Resources 3.1 ICOP Technical Resource Website In the following website, you will find our latest user manuals, including OS support resources systems such as evaluation images for Windows Embedded Compact 7, Windows Embedded CE 6.0, Windows Embedded CE 5.0, and Windows XP Embedded (Win XPe).

  • Page 24: Technical Support

    1920 x 1080 (at 60MHz) connecting to LCD Flat Panel: 18-bit/24-bit TFT-LCD and 24-bit LVDS. 4.1.2 Pin Assignment of LVDS and TFT-LCD LVDS Pin Assignment LVDS Pin# Pin Name LVDS Pin# Pin Name VCC3(3.3V) VCC3(3.3V) CLK- CLK+ ICOP Technology Inc.
  • Page 25 LCD Pin# Vortex86DX3 Pin Name DIGITAL 18 bits RGB 24 bits LCDVCC (+3.3V) LCDVCC (+3.3V) FPD12 FPD13 FPD14 FPD15 FPD16 FPD17 FPD18 FPD19 FPD20 FPD21 FPD22 FPD23 PPD0 PPD1 PPD2 PPD3 PPD4 PPD5 PPD6 PPD7 PPD8 PPD9 PPD10 PPD11 ICOP Technology Inc.
  • Page 26 VDX3-6726-V2 User Manual FP1CLK XCLK XCLK FP1DE FP1HS HSYNC HSYNC FP1VS VSYNC VSYNC FPENBLT FPENVDD VDDEN VDDEN ICOP Technology Inc.

  • Page 27: Bios Introduction

    VGA display or monitor. The default access port is COM1 and disabled. If you would like to use this function, please go to the path below to enable Console Redirection. Path: Advanced >Remote Access Configuration >Remote Access [Enabled] ICOP Technology Inc.

  • Page 28: Serial Ports Switching

    Serial ports on VDX3-6726 are set RS232 as default. If you need RS485 to be your default serial ports, you can refer to the below instruction to change it according to your demands. Path: Advanced > Serial/Parallel Port Configuration ICOP Technology Inc.

  • Page 29: Ide Configuration

    If you would like to use Linux on VDX3-6726, please follow below instructions: Onboard IDE Operate Mode: [Native Mode] IDE Compatibility: [Enabled]. Path of Onboard IDE Operate Mode: Advanced > IDE Configuration > IDE Operate Mode [Native Mode] ICOP Technology Inc.
  • Page 30 VDX3-6726-V2 User Manual Path of IDE Compatibility: Advanced > IDE Compatibility [Enabled] IDE Configuration > ICOP Technology Inc.

  • Page 31: Advanced Pci/Pnp Setting

    Advanced PCI/PnP Setting Two statuses for IRQ setting: [Reserved]: IRQ will be free to be allocated by ISA device, not PCI device. [Available]: IRQ will be allocated by both ISA device and PCI device. Path: PCIPnP >IRQ ICOP Technology Inc.

  • Page 32: Acpi Enable

    VDX3-6726-V2 User Manual 4.2.7 ACPI Enable To install Windows 7 on ICOP computer boards, please enable ACPI as the following instruction. Path: Advanced > ACPI Configuration >ACPI Aware O/S ICOP Technology Inc.

  • Page 33: Lcd Panel Setting

    Resolution of the LCD Panel 640 x 480 800 x 480 800 x 600 1024 x 600 1024 x 768 Path of Boot Display Device setting: Chipset > NorthBridge Configuration > VGA Configuration > Boot Display Device [IPD] ICOP Technology Inc.
  • Page 34 VDX3-6726-V2 User Manual Path of LCD Panel Index setting: Chipset > NorthBridge Configuration > VGA Configuration > LCD Panel Index [ ICOP Technology Inc.

  • Page 35: Appendix

    PC104L64P PC104L40P 2. Put on the nuts, pillars, screws and PC104 connector (as the image below shown) 3. As the image below shown after stacking. Note: Please contact ICOP if the nuts, pillars and screws are required. ICOP Technology Inc.

  • Page 36: Warranty

    Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
