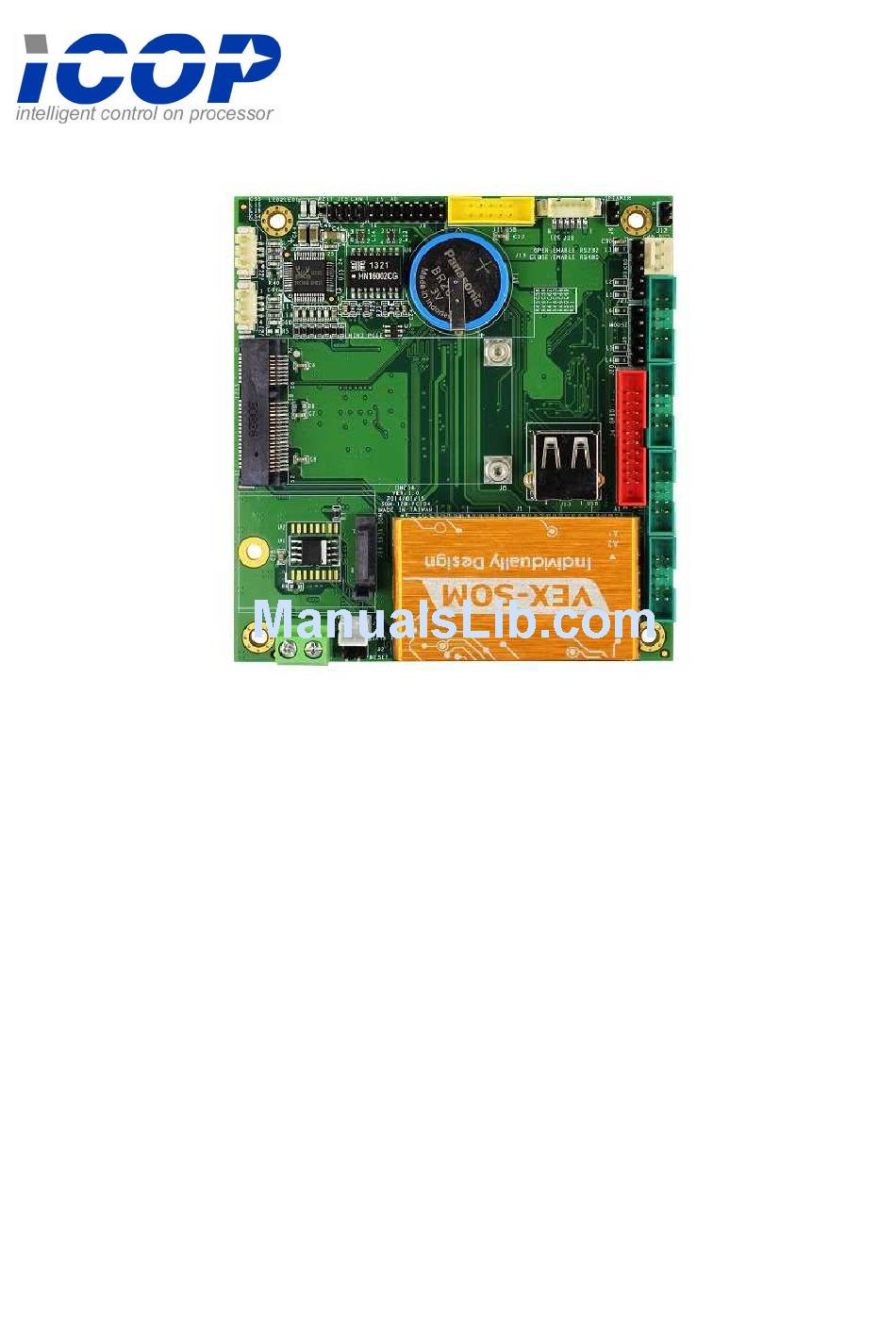

- Page 1 VEX-6254 DM&P Vortex86EX 400MHz CPU Module with 4S/2USB/AUDIO/LAN/GPIO/I²C/CAN BUS/ AUDIO/AD/eMMC or SD Card Slot 128MB DDR3 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2013 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Ordering Information .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
PS/2 Keyboard cable x 1 Screw Kit x 1 1.2 Ordering Information VEX-6254-S Vortex86EX CPU Module with 128MB DDR3 and SD Card slot VEX-6254-E Vortex86EX CPU Module with 128MB DDR3 and 512MB eMMC onboard MINIPCIE-9160 Mini PCI-E VGA Module for VEX CPU Module only... -
Page 6: Product Description
16-bit GPIO temperature range of -20°C to +70°C The Vortex86EX series is the newest member of ICOP family with compact size and ultra-low power consumption. It packs 16KB write through 4-way L1 cache, 128KB write through/write back 4-way L2 cache, 2.5Ghz PCI-E Bus, DDR3, ROM controller, I²C, SPI, Fast Ethernet, FIFO UART, USB2.0 Host, CAN, and SD/SATA controllers. -
Page 7: Specifications
Specifications Features VEX-6254 DM&P SoC CPU Vortex86EX- 400MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache 16K D-Cache, L2:256KB Cache BIOS Coreboot BIOS 128MB DDR3 Onboard System Memory Software programmable from 30.5µ sec.to 512 sec. x2 sets Watchdog Timer... -
Page 8: Board Dimension
Board Dimension VEX-6254 Vortex86EX™ CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Optional) VEX-6254 Vortex86EX™ CPU Module... -
Page 10: Connectors Location
Connectors Location VEX-6254 Vortex86EX™ CPU Module... -
Page 11: Connectors & Jumpers Summary
Box Header, 2.0∅, 5x2 J21 COM4(RS232 or TTL/P3) 10-pin Box Header, 2.0∅, 5x2 J22 MIC-IN 4-pin Wafer, 1.25∅, 4x1 J23 LINE-OUT 4-pin Wafer, 1.25∅, 4x1 LED 1 LAN Link/Active LED(Green) LED-SMD LED 2 LAN Duplex LED(Yellow ) LED-SMD VEX-6254 Vortex86EX™ CPU Module... -
Page 12: Pin Assignments & Jumper Settings
GP62 GP72 GP63 GP73 GP64 GP74 GP65 GP75 GP66 GP76 GP67 GP77 J5: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J6: Buzzer Pin # Signal Name Pin # Signal Name Buzzer VEX-6254 Vortex86EX™ CPU Module... - Page 13 AGND ADC_4 AGND ADC_5 AGND ADC_6 AGND ADC_7 AGND J8: Mini PCI-E (USBD3 Optional) Pin # Signal Name Pin # Signal Name VCC3 VCC3 PE0_CLK- PE0_CLK+ W_DIS PCIRST- PE0_RX- VCC3 PE0_RX+ PE0_TX- PE0_TX+ LUSBD3- LUSBD3+ VCC3 VEX-6254 Vortex86EX™ CPU Module...
- Page 14 Pin # Signal Name CAN_H CAN_L J13: USB2 (Optional: USBD2 will be occupied while been used) Pin # Signal Name Pin # Signal Name LUSBD4- LUSBD4+ J14: SATA DOM Pin # Signal Name Pin # Signal Name VEX-6254 Vortex86EX™ CPU Module...
- Page 15 J18: COM2 RS232 / 485 (Optional: TTL / GPIO-P1) Pin # Signal Name Pin # Signal Name DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 J19: COM2 RS232 / 485 Select Pin # Signal Name OPEN RS232 CLOSE RS485 VEX-6254 Vortex86EX™ CPU Module...
- Page 16 Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 J22: MIC-IN Pin # Signal Name Pin # Signal Name MIC_IN_R MIC_IN_L J23: LINE OUT Pin # Signal Name Pin # Signal Name LOUT_R LOUT_L VEX-6254 Vortex86EX™ CPU Module...
-
Page 17: System Mapping
D800:0000-DB00:FFFF SPI FLASH Emulation Floppy A Enable DC00:0000-DF00:FFFF Expansion ROM space E000:0000-E000:FFFF Motherboard BIOS F000:0000-F000:FFFF Motherboard BIOS I/O Mapping I/O Address Owner Usage 0000h - 000Fh DMA 8237-1 0010h - 0017h COM9 0018h - 001Fh Empty VEX-6254 Vortex86EX™ CPU Module... - Page 18 WatchDog1 reload counter 0068h - 006Dh WatchDog1 control register 006Eh - 006Fh Empty 0070h - 0071h CMOS RAM port 0072h - 0075h MTBF counter 0076h - 0077h Empty 0078h GPIO data port 0 0079h GPIO data port 1 VEX-6254 Vortex86EX™ CPU Module...
- Page 19 0101h GPIO data address Port 6 0102h GPIO data address Port 7 0103h GPIO data address Port 8 0104h GPIO data address Port 9 0105h GPIO data address Port A 0170h - 0177h IDE1 (IRQ 15) VEX-6254 Vortex86EX™ CPU Module...
- Page 20 SPI Flash BIOS control register External SPI BUS control register ( output pin FC08h - FC0Dh configurable GPIO3[0-3] ) IRQ Mapping IRQ# Description Usage IRQ0 System Timer IRQ1 Keyboard Controller IRQ2 Cascade for IRQ8 - 15 IRQ3 Serial Port 2 VEX-6254 Vortex86EX™ CPU Module...
- Page 21 Serial Port 3 IRQ11 Serial Port 4 IRQ12 PS2 Mouse IRQ13 Math Coprocessor IRQ14 Hard Disk Controller#1 IRQ15 Hard Disk Controller#2 / PIEDIRQ DMA Mapping DMA# Description Usage DMA0 DMA1 DMA2 Floppy Disk Controller DMA3 DMA5 DMA6 DMA7 VEX-6254 Vortex86EX™ CPU Module...
-
Page 22: Watchdog Timer
Here are registers information of GPIO Port 6 / 7 for your reference. Port 6 Port 7 Data Register: 101H Data Register: 102H Direction Register: 93H Direction Register: 94H We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech. VEX-6254 Vortex86EX™ CPU Module... -
Page 23: Spi Flash
2-bit voltage scaling sub-DAC for LSB. The input range is between 0 and VCCA (3.3V). Features 11-bit, 100kS/s SAR A/D Converter 8-channel input Input signal range: 0V~VCC33A(3.3V) Operating voltage range: 2.93V~3.63V Operating junction temperature range: -40°C~125°C VEX-6254 Vortex86EX™ CPU Module... -
Page 24: Chapter 3 Driver Installation
The Vortex86EX processor integrates an ALC 262 HD Audio controller. Operating system support The VEX-6254 CPU board supports embedded software: Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows CE 6.0, x-Linux, QNX, Vxworks and FreeBSD. For drivers, please visit DMP official website: http://dmp.com.tw/tech, and if you cannot locate them, please mail us at info@icop.com.tw. -
Page 25: Appendix
ROM image to fit their application, those examples can be seen in the following Application systems: Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for all ICOP customers who are using M6117D/ Vortex86/ Vortex86SX/ Vortex86DX/ Vortex86DX2/ Vortex86EX CPU. ICOP also provides the business version, software charge required, of DSock for those customers who are using other x86 CPUs. -
Page 26: Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VEX-6254 Vortex86EX™ CPU Module...
