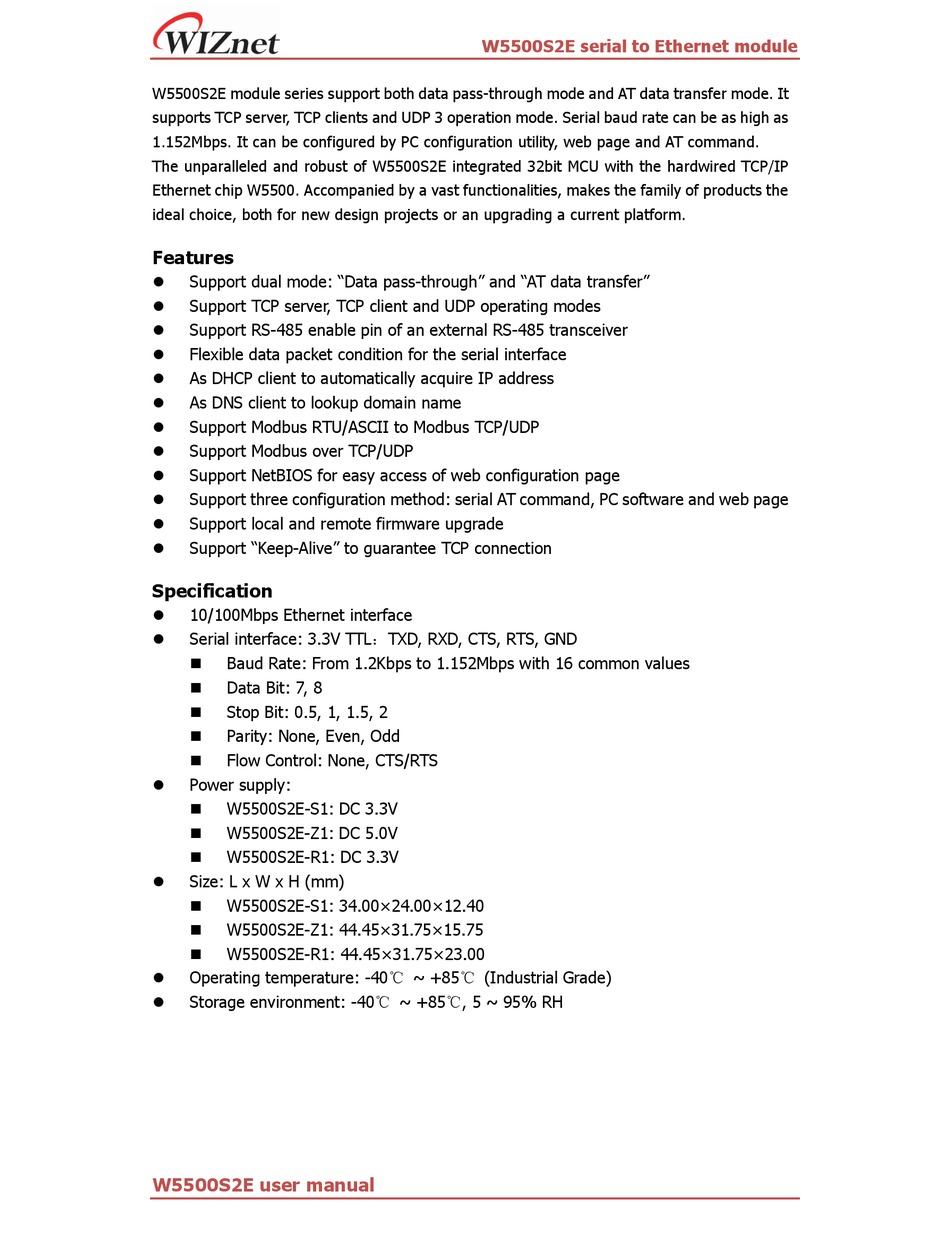

W5500S2E module series support both data pass-through mode and AT data transfer mode. It
supports TCP server, TCP clients and UDP 3 operation mode. Serial baud rate can be as high as
1.152Mbps. It can be configured by PC configuration utility, web page and AT command.
The unparalleled and robust of W5500S2E integrated 32bit MCU with the hardwired TCP/IP
Ethernet chip W5500. Accompanied by a vast functionalities, makes the family of products the
ideal choice, both for new design projects or an upgrading a current platform.
Features
Support dual mode: "Data pass-through" and "AT data transfer"
Support TCP server, TCP client and UDP operating modes
Support RS-485 enable pin of an external RS-485 transceiver
Flexible data packet condition for the serial interface
As DHCP client to automatically acquire IP address
As DNS client to lookup domain name
Support Modbus RTU/ASCII to Modbus TCP/UDP
Support Modbus over TCP/UDP
Support NetBIOS for easy access of web configuration page
Support three configuration method: serial AT command, PC software and web page
Support local and remote firmware upgrade
Support "Keep-Alive" to guarantee TCP connection
Specification
10/100Mbps Ethernet interface
Serial interface: 3.3V TTL : TXD, RXD, CTS, RTS, GND
Baud Rate: From 1.2Kbps to 1.152Mbps with 16 common values
Data Bit: 7, 8
Stop Bit: 0.5, 1, 1.5, 2
Parity: None, Even, Odd
Flow Control: None, CTS/RTS
Power supply:
W5500S2E-S1: DC 3.3V
W5500S2E-Z1: DC 5.0V
W5500S2E-R1: DC 3.3V
Size: L x W x H (mm)
W5500S2E-S1: 34.00×24.00×12.40
W5500S2E-Z1: 44.45×31.75×15.75
W5500S2E-R1: 44.45×31.75×23.00
Operating temperature: -40 ℃ ~ +85 ℃ (Industrial Grade)
Storage environment: -40 ℃ ~ +85 ℃ , 5 ~ 95% RH
W5500S2E user manual
W5500S2E serial to Ethernet module
