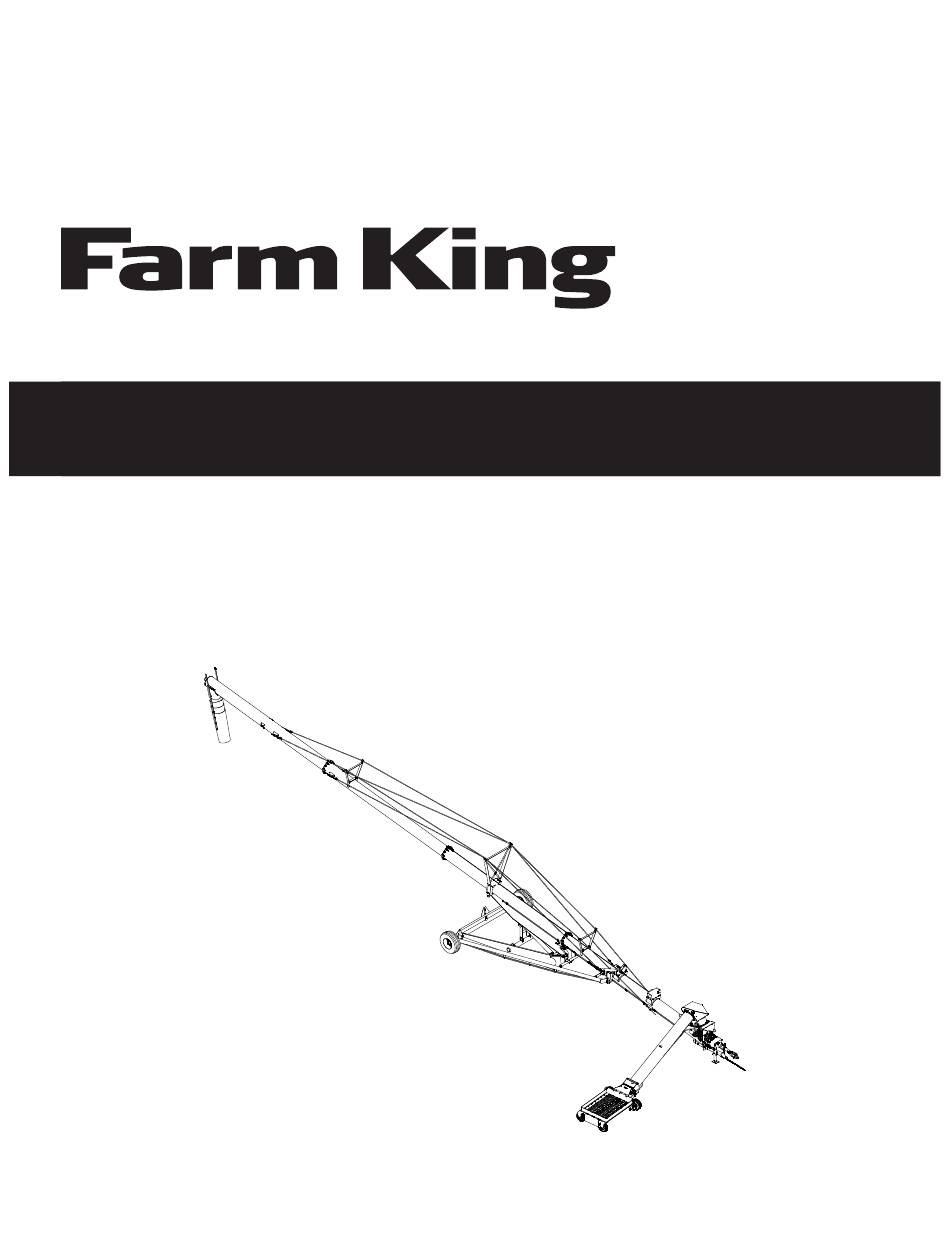

1684, 16104, 16124 Backsaver Auger TABLE OF CONTENTS Manufacturer’s Statement: For technical reasons, Farm King reserves the right to modify machinery design and specifications provided herein without any preliminary notice. Information provided herein is of descriptive nature. Performance quality may depend on soil fertility, applied agricultural techniques, weather conditions, and other factors.
Customer / Owner Signature: Remove this Warranty Registration Form from the Operator And Parts Manual. Make two copies of the form. Send original Warranty Registration Form to Farm King. Give one copy to the customer and the dealer will keep one copy.
Farm King equipment. READ AND UNDERSTAND THIS OPERATOR AND PARTS MANUAL BEFORE OPERATING YOUR FARM KING EQUIPMENT. If you have any questions, see your Farm King dealer. This manual may illustrate options and accessories not installed on your Farm King equipment.
Page 9
Introduction - 1684, 16104, 16124 Backsaver Auger OWNER’S INFORMATION Serial Number Location Please enter the model and serial number in the Thank you for your decision to purchase a Farm space provided for easy reference. King Backsaver Auger. To ensure maximum...
Safety - 1684, 16104, 16124 Backsaver Auger SAFETY SAFETY INSTRUCTIONS Safe Operation is The Operator’s Responsibility Safe Operation Needs A Qualified Operator Use Safety Rules Safety Rules For Power Take-Off (PTO) Driven Equipment Machine Requirements And Capabilities Transport Safety FIRE PREVENTION...
• The written instructions from Farm King include the minor or moderate injury. It may also be used to Warranty Registration, Dealer Inspection Report, alert against unsafe practices.
Safety - 1684, 16104, 16124 Backsaver Auger Use Safety Rules Safety Rules For Power Take-Off (PTO) Driven Equipment • Read and follow instructions in this manual and the tractor’s Operators Manual before operating. • Keep PTO shields and all guards in place. Replace damaged or missing shields and guards before •...
Safety - 1684, 16104, 16124 Backsaver Auger Machine Requirements And Capabilities Transport Safety • Stop the machine and engage the parking brake. • Do not exceed 20 mph (32 kph). Reduce speed on Install blocks in front of and behind the rear tires of rough roads and surfaces.
Fueling Operation • The Farm King machine must be in good operating condition before use. • Check all of the items listed on the service schedule under the 8 hour column before operation. (See Maintenance section) •...
Safety - 1684, 16104, 16124 Backsaver Auger OPERATING SAFETY ZONE Figure 3 Safety Zone Identification WARNING AVOID INJURY OR DEATH • Do allow small children, bystanders unauthorized persons in the work area during operation. • Never stand or work under the auger and undercarriage when in the raised position or during operation.
Safety - 1684, 16104, 16124 Backsaver Auger EQUIPMENT & SAFETY SIGNS Driveline Hazard, PN 904585 Follow the instructions on all the signs (decals) that are on the equipment. Replace any damaged signs (decals) and be sure they are in the correct locations.
Untrained operators and failure to follow instructions can cause injury or death. Farm King follows the general Safety Standards specified by the American Society of Agricultural and Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and / or maintaining the auger must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual.
Operation - 1684, 16104, 16124 Backsaver Auger OPERATION GENERAL INFORMATION Pre - Operation Checklist Break - In Checklist Tractor And Gas Engine Requirements Drawbar Adjustment ENTERING & LEAVING THE OPERATOR’S POSITION Entering The Operator’s Position Leaving The Operator’s Position CONNECTING TO TRACTOR...
Operation - 1684, 16104, 16124 Backsaver Auger GENERAL INFORMATION 3. Make sure that all guards and shields are in place, secured and functioning as designed. Pre - Operation Checklist WARNING Before operating the auger for the first time and each time thereafter, check the following items:...
Operation - 1684, 16104, 16124 Backsaver Auger Break - In Checklist Check the following mechanical items after 1 hour of operation and again after 10 hours of operation: Note: The break-in period is different from normal Re-torque wheel bolts to proper torque and check operating conditions.
Operation - 1684, 16104, 16124 Backsaver Auger ENTERING & LEAVING THE CONNECTING TO TRACTOR OPERATOR’S POSITION Attach the auger to the tractor whenever the equipment is moved around the yard or into Entering The Operator’s Position working position. Enter the operator’s position, start the engine, and Tow the equipment by truck when traveling long release the parking brake.
Page 31
Operation - 1684, 16104, 16124 Backsaver Auger Figure 6 Figure 7 Install the hitch pin (Item 1) and retaining pin to securely fasten the Backsaver Auger hitch to the tractor drawbar [Figure 7]. Attach the safety chain (Item 2) around the drawbar Turn the handle (Item 1) clockwise to raise the hitch [Figure 7].
Operation - 1684, 16104, 16124 Backsaver Auger Hitching 16124 Model Auger Figure 9 Make sure that bystanders, especially small children, are clear of the working area. Be sure that there is sufficient room and clearance to back up to the machine.
Page 33
Operation - 1684, 16104, 16124 Backsaver Auger Figure 11 Operate the proper tractor hydraulic control to adjust the auger hitch to align holes and install hitch locking pin (Item 1) in transport position [Figure 11]. WARNING Do NOT operate equipment without locking pins in place.
Operation - 1684, 16104, 16124 Backsaver Auger Connecting The P TO Driveline Figure 12 WARNING AVOID INJURY OR DEATH Warnings on the machine and in the manuals are for your safety. Failure to obey warnings can cause serious injury or death.
Operation - 1684, 16104, 16124 Backsaver Auger PTO Driveline Length Check PTO Driveline Bottoming Out Check Due to variations in distances between tractor PTO Stop the engine and leave the operator’s position shafts and implement input shafts, drivelines may (See “Leaving The...
Operation - 1684, 16104, 16124 Backsaver Auger Reducing The PTO Driveline Length Figure 14 Stop the engine and leave the operator’s position IMPLEMENT (See “Leaving The Operator’s Position” in the PTO SHAFT Operation section). Make sure the PTO driveline and all rotating components have come to a complete stop before leaving the operator’s...
(from Step 3), the PTO driveline does not have adequate engagement and should be replaced • Keep bystanders away. with a longer driveline. See your Farm King dealer for available PTO drivelines. • Keep hands, feet, clothing and long hair away.
Operation - 1684, 16104, 16124 Backsaver Auger Connecting Hydraulic Hoses To Connect: Figure 17 WARNING HIGH PRESSURE FLUID HAZARD To prevent serious injury or death from high pressure fluid: • Relieve pressure on system before repairing or adjusting. Pull back on the collar of the female coupler, push •...
Operation - 1684, 16104, 16124 Backsaver Auger AUGER OPERATION Adjusting Flow Control Valve Figure 19 Hopper Operation CAUTION Never operate the winch or hopper mover when the PTO is engaged. Enter the tractor and start the engine. Engage the hydraulic circuit for the hopper / winch control valve on the intake box.
Operation - 1684, 16104, 16124 Backsaver Auger Auger Placement IMPORTANT DANGER Do not raise the main auger higher than 35° before lowering the intake auger or interference between ELECTROCUTION HAZARD the intake auger and the intake box will occur. prevent...
Operation - 1684, 16104, 16124 Backsaver Auger With the main auger in the fully down position, Unloading Belly Dump Units move the auger towards the bin or barn. Position Figure 21 the auger as close as possible to the bin or barn.
Page 42
Operation - 1684, 16104, 16124 Backsaver Auger Figure 23 Figure 24 Move the belly dump unit forward until the rear compartment is directly over the hopper (Item 1) [Figure 23]. Move the belly dump unit back until the front WARNING compartment is directly over the hopper (Item 1) [Figure 24].
Operation - 1684, 16104, 16124 Backsaver Auger Unloading Rear And Side Dump Units With tractor running at a low idle, engage the tractor PTO slowly to start the auger. Increase Figure 25 engine RPM (do not exceed 1000 RPM speed).
Operation - 1684, 16104, 16124 Backsaver Auger TRANSPORTATION IMPORTANT Requirements DANGER Never exceed 20 mph (32 kph). Do not move or transport the auger unless the hopper and intake auger are in the raised / ELECTROCUTION HAZARD transport position and securely fastened before transporting.
Operation - 1684, 16104, 16124 Backsaver Auger Transporting Procedure Install the boom cable (Item 1) onto the hopper [Figure 27]. Remove all supports on the discharge end and Move the lever (Item 2) to the left (towards the anchorage from the intake end (if required).
Page 46
Operation - 1684, 16104, 16124 Backsaver Auger Stop the tractor and engage the parking brake. Figure 30 IMPORTANT Always lower the auger before transporting and allow the weight of the auger to rest on the undercarriage and not the hydraulic cylinders.
Page 47
Operation - 1684, 16104, 16124 Backsaver Auger Figure 32 Remove the hitch locking pin. Operate the proper tractor hydraulic control to adjust the auger hitch to align holes and install hitch locking pin (Item 1) in transport position [Figure 32].
NOTE: If a problem is encountered that is difficult to solve, even after having read through this troubleshooting section, please call your local Farm King dealer. Before you call, please have this Operator And Parts Manual and the serial number of your machine at hand.
Maintenance - 1684, 16104, 16124 Backsaver Auger SERVICE SCHEDULE Maintenance Intervals Maintenance work must be done at regular intervals. Failure to do so will result in excessive wear and early failures. The service schedule is a guide for correct maintenance of the equipment.
See local, 33]. state and federal regulations for the correct Figure 34 disposal. 1684 Model 1684: Apply three pumps of grease to the base end of the lift cylinder (Item 1) [Figure 34].
Page 54
1684 16104, 16124 Models 16104, 16124: Apply two pumps of grease Model 1684: Apply three pumps of grease to the to the cylinder base ends (Item 1) [Figure 37]. rod end of the lift cylinder (Item 1). Apply three pumps of grease to the connecting link (Item 2) Figure 38 [Figure 35].
Page 55
1684, 16104 Model 16104: Apply three pumps of grease to the Model 1684, 16104: Apply three pumps of grease two front upper lift arm pivots (Item 1) and lower to the RH and LH lower lift arm pivots (Item 1) link pivot (Item 2) [Figure 39].
Maintenance - 1684, 16104, 16124 Backsaver Auger Tube Locations Figure 45 Lubricate the following grease locations daily or EVERY 8 HOURS: Figure 43 Apply two pumps of grease to the intake tube flighting shaft bearings (Item 1) [Figure 45]. Apply three pumps of grease to the bearings (Item 1) at the end cap on the discharge tube of the auger [Figure 43].
Maintenance - 1684, 16104, 16124 Backsaver Auger Hopper Locations Figure 47 Lubricate the following grease locations daily or EVERY 8 HOURS: Figure 46 Apply two pumps of grease to the intake auger hanger mount (Item 1) [Figure 46]. Apply two pumps of grease to the CV joints (Item 1) [Figure 47].
Maintenance - 1684, 16104, 16124 Backsaver Auger Figure 48 PTO Locations Lubricate the following grease locations daily or EVERY 8 HOURS: NOTE: The PTO shaft is equipped with extended life bearings. Do not over-grease. Figure 49 Apply oil to the hopper dual chains (Item 1) [Figure 48].
Maintenance - 1684, 16104, 16124 Backsaver Auger GEARBOXES 4168 Lower Gearbox Figure 52 Check gearbox oil levels weekly or EVERY 50 HOURS: M2000 Helical Gearbox Figure 51 Remove the fill / drain plug (Item 1) from the gearbox. Oil level should be at the bottom of the plug hole [Figure 52].
Maintenance - 1684, 16104, 16124 Backsaver Auger 4168 Upper Gearbox Figure 53 Remove the fill / drain plug (Item 1) from the gearbox. Oil level should be at the bottom of the plug hole [Figure 53]. If the oil level is low, add SAE 75W-90 synthetic gear oil until the oil is at the bottom of the hole.
Maintenance - 1684, 16104, 16124 Backsaver Auger BRIDGING Cable Tension Adjustment Check cable tension weekly or EVERY 50 HOURS: Cable Inspection IMPORTANT IMPORTANT Completely unload auger before adjusting Always wear the proper hand and eye protection bridging cables. when serving the equipment.
Page 63
Maintenance - 1684, 16104, 16124 Backsaver Auger Top Cables - Models 1684, 16104 Figure 57 Figure 56 Top Tube Adjustment Bracket Bottom Tube Adjustment Bolt Make sure the bottom adjustment bolts (Item 1) are loosened [Figure 56]. Loosen all cable clamps along the cable being tightened.
Page 64
Maintenance - 1684, 16104, 16124 Backsaver Auger Side Cables - Model 16104 Figure 59 Figure 58 Top Tube Adjustment Bracket Bottom Tube Adjustment Bolt Make sure the bottom adjustment bolt (Item 1) is loosened [Figure 58]. Loosen all cable clamps along the cable being tightened.
Maintenance - 1684, 16104, 16124 Backsaver Auger Trusses Inspection Check trusses weekly or EVERY 50 HOURS: Figure 60 Regularly check the truss beams, truss support brackets and all cross braces for cracks or damage. Repair or replace if damaged [Figure 60].
Maintenance - 1684, 16104, 16124 Backsaver Auger STORAGE AND RETURN TO SERVICE Return To Service After the equipment has been in storage, it is Storage necessary to follow a list of items to return the Sometimes it may be necessary to store the equipment to service.
Parts Identification - 1684, 16104, 16124 Backsaver Auger GENERAL PARTS INFORMATION The parts identification section list descriptions, part numbers and quantities for all North America Base Model BS16 Series Augers. Contact your Farm King dealer for additional parts information. BS1684 BS16104...
Parts Identification - 1684, 16104, 16124 Backsaver Auger BRIDGING - 16104 DETAIL A DETAIL G DETAIL B 27 5 DETAIL C DETAIL F DETAIL D DETAIL E 914895...
Parts Identification - 1684, 16104, 16124 Backsaver Auger LIFT ARMS CYLINDERS - 16124 924956 ITEM PART NUMBER DESCRIPTION QTY. 865341 TEE-10MJIC X -10MJIC X -10 FJIC 906103 HOSE-8 X -8MORB X -10JIC 930167 HOSE-8 X -10MJIC X -10MJIC F2279 CYLINDER-6.5 X 58.5...
Parts Identification - 1684, 16104, 16124 Backsaver Auger LIGHT KIT - 16124 DETAIL F DETAIL A DETAIL C FIRST 4 HYD CONNECTIONS NEXT 8 CONNECTIONS ONLY HAVE DETAIL B ONE P-CLIP DETAIL E DETAIL D 929220...
Page 127
Parts Identification - 1684, 16104, 16124 Backsaver Auger ITEM PART NUMBER DESCRIPTION QTY. 812362 5/16" LOCK NUT (PL) 812365 3/4" LOCK NUT (PL) 81553 5/16" X 1 1/2" HEX BOLT (PL) 84467 3/4" X 2" HEX BOLT (PL) 909226 BLINKER MOUNT WELDT - RH...
Specifications - 1684, 16104, 16124 Backsaver Auger PERFORMANCE PERFORMANCE DESCRIPTION 1684 16104 16124 Maximum PTO Speed 1000 RPM Main Auger Tubes 16 in. Dia. Main Auger Size 15.25 in. OD Hopper 16 in. Multi Flighting 55.17 in. 55.17 in. 55.17 in.
Specifications - 1684, 16104, 16124 Backsaver Auger HYDRAULIC CONNECTION Port Seal (O-Ring Boss) Fitting SPECIFICATIONS Port Seal And O-ring Boss Tightening Torque O-Ring Fitting (Straight Thread) Tubeline O.D. Thread Size N•m (ft-lb) 1/4” 7/16” - 20 13 (18) Lubricate the O-ring before installing the fitting.
Warranty - 1684, 16104, 16124 Backsaver Auger WARRANTY FARM KING BASE LIMITED WARRANTY Repair Parts Limited Warranty What Is Not Covered Authorized Dealer And Labor Costs Warranty Requirements...
Page 155
If Farm King determines that it will pay labor costs for warranty work, it will do so by issuing a credit to the dealer’s or distributor’s account.
Page 156
Corrections of defects and improper workmanship in the manner, and for the applicable time periods, provided for herein shall constitute fulfillment of all responsibilities of Farm King to the purchaser, and Farm King shall not be liable in negligence, contract, or on any other basis with respect to the subject equipment.
