Vision™PLC+HMI

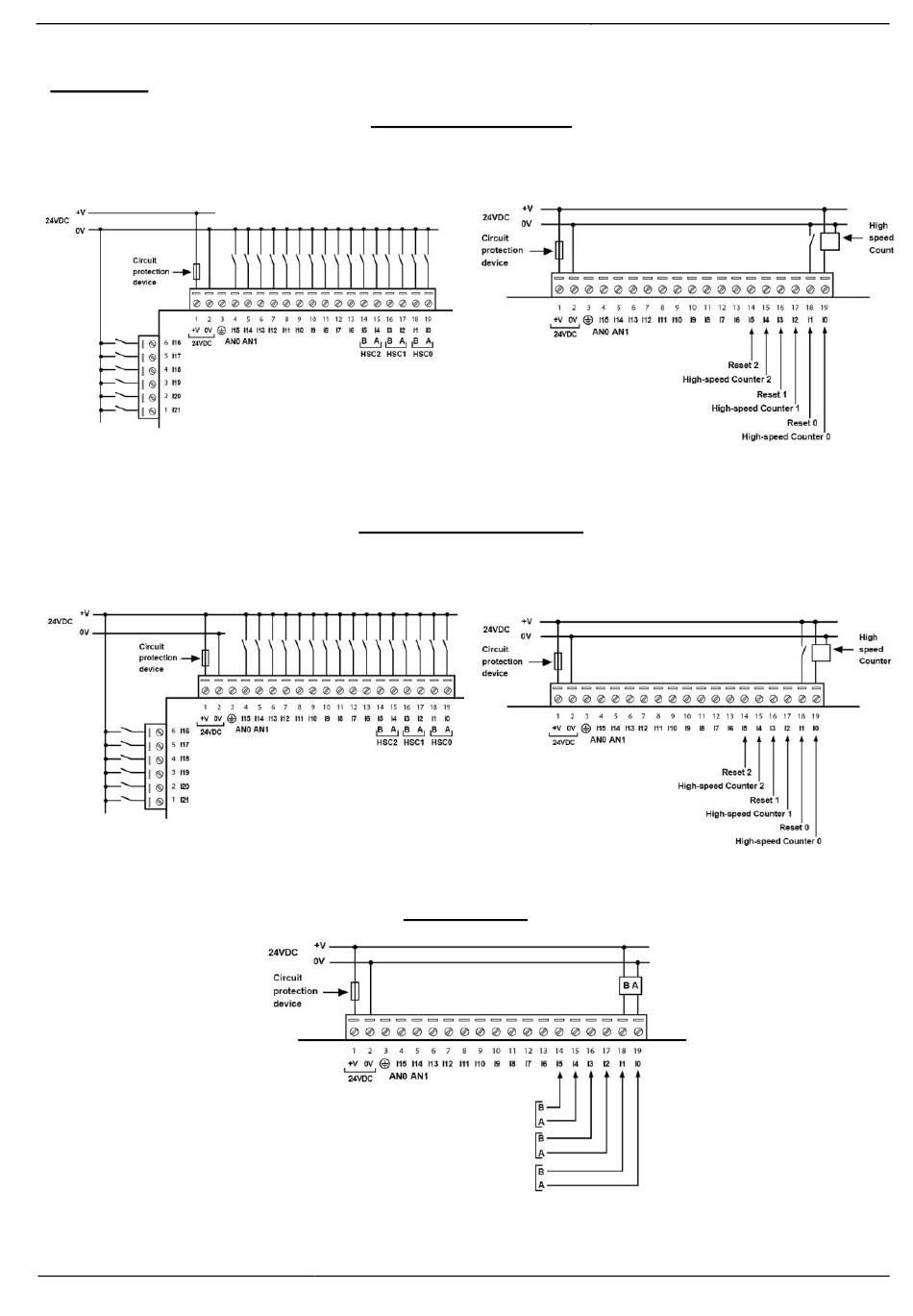

I/O Wiring
npn (sink) Input Wiring
Input wiring
HSC input wiring
pnp (source) Input Wiring
Input wiring
HSC input wiring
Shaft-encoder
