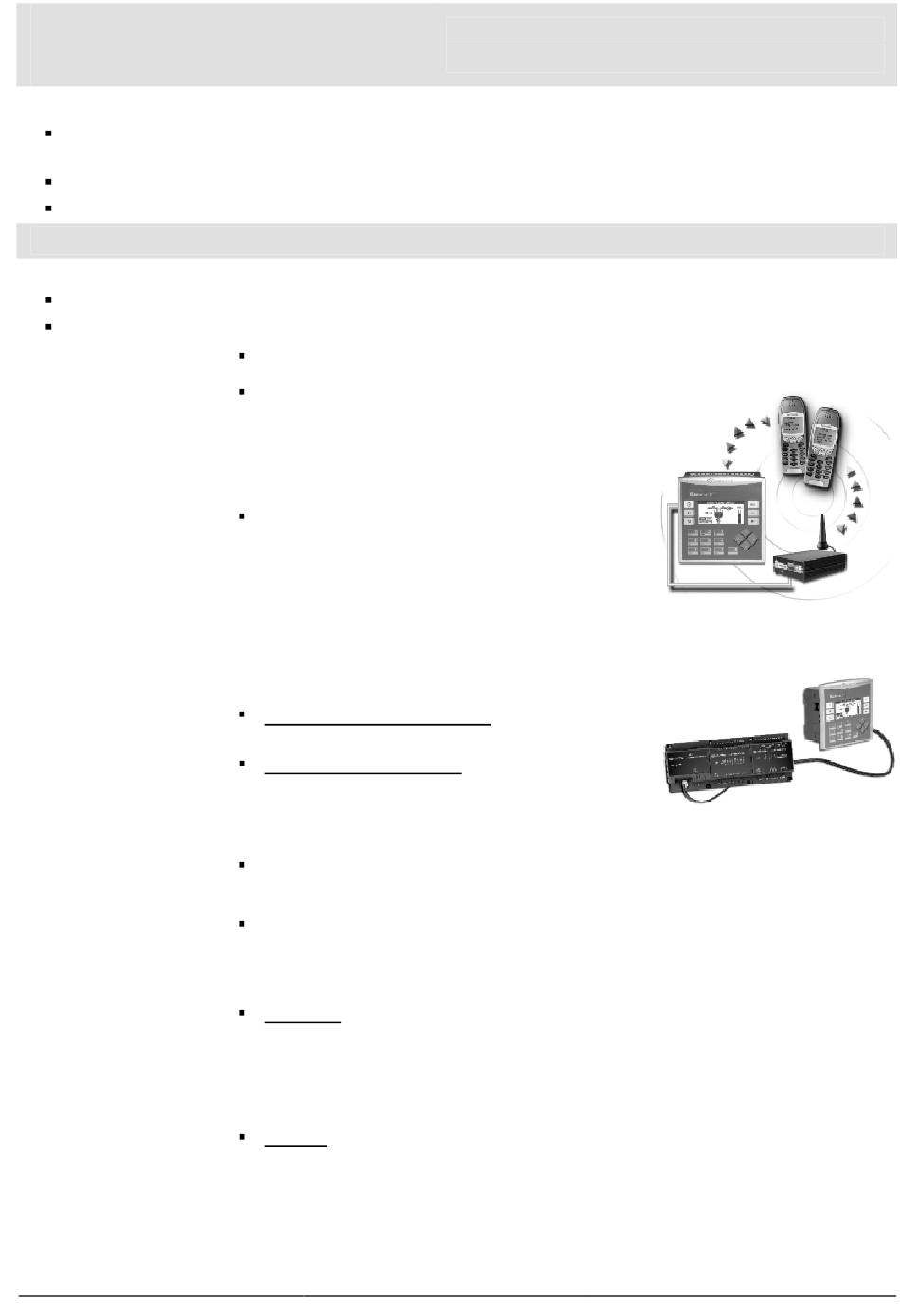

The Unitronics V130-33-R6 offers the following onboard I/Os:
8 Digital Inputs, configurable via wiring to include 2 Analog (current/voltage) and
1 HSC/Shaft-encoder
4 Analog Inputs (current)
6 Relay Outputs
General Description

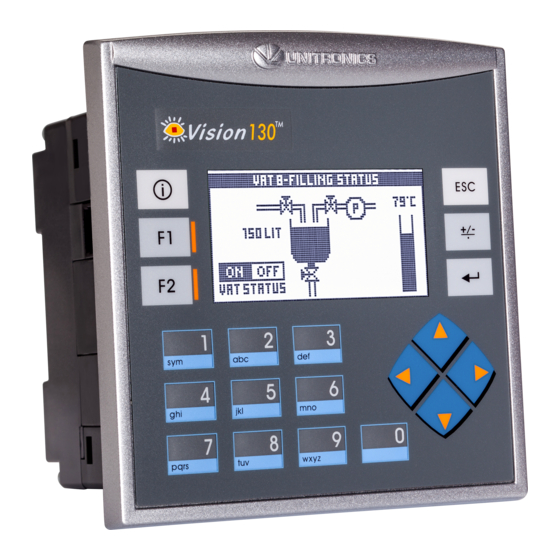

V130 OPLCs are micro-OPLCs, rugged programmable logic controllers that comprise:
On-board I/O configuration
Built-in operating panel containing a 2.4" screen and a keypad
Communications
I/O Options
Information Mode
Programming
Software,
& Utilities
Unitronics
1 built-in serial port: RS232/RS485
Optional: the user may order and
install one or both of the following
modules:
- RS232/RS485/Ethernet
- CANbus
Communication Function Blocks
include: SMS, GPRS, MODBUS
serial/IP. Protocol FB enables PLC to
communicate with almost any external
device, via serial or Ethernet
communications
V130 supports digital, high-speed, analog,
weight and temperature measurement I/Os via:
On-board I/O configuration
Model-dependent
I/O Expansion Modules
Local or remote I/Os may be added via
expansion port or CANbus.
This mode enables you to:
View & Edit operand values, COM port settings, RTC and screen
contrast/brightness settings
Stop, initialize, and reset the PLC
To enter Information Mode, press the <i> button for several seconds.
The Unitronics Setup CD contains VisiLogic software and other utilities.
VisiLogic
Easily configure hardware and write both HMI and Ladder control
applications; the Function Block library simplifies complex tasks such
as PID. Write your application, and then download it to the controller
via the programming cable included in the kit.
Utilities
Includes UniOPC server, Remote Access for remote programming
and diagnostics, and DataXport for run-time data logging.
To learn how to use and program the controller, as well as use utilities such
as Remote Access, refer to the VisiLogic Help system.
V130-33-R6
Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision OPLC V130-33-R6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitronics Vision OPLC V130-33-R6

  • Page 1 Stop, initialize, and reset the PLC To enter Information Mode, press the <i> button for several seconds. Programming The Unitronics Setup CD contains VisiLogic software and other utilities. Software, VisiLogic & Utilities Easily configure hardware and write both HMI and Ladder control applications;...
  • Page 2: Standard Kit Contents

    All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. Please dispose of this product according to local and national standards and regulations.
  • Page 3: Mounting Dimensions

    4. Tighten the bracket screws against the panel. Hold the bracket securely against the unit while tightening the screw. 5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the figure to the right. Unitronics...
  • Page 4: Din Rail Mounting

    Input or output cables should not be run through the same multi-core cable or share the same wire. Allow for voltage drop and noise interference with input lines used over an extended distance. Use wire that is properly sized for the load. The controller and I/O signals must be connected to the same 0V signal. Unitronics...
  • Page 5: Input Jumper Settings

    JP1 (all Inputs) npn (sink) pnp (source)* Inputs 6/7: Set as Digital or Analog Set to JP5 (Input 6) JP6 (Input 7) Digital* Analog Analog Inputs AN0/AN1: Set Type Set to JP3 (AN0) JP4 (AN1) Voltage* Current *Default settings Unitronics...
  • Page 6 V130-33-R6 Installation Guide I/O Wiring i4 Automation Ltd - 01480 395256 I/O Configuration npn Input Wiring Input wiring npn (sink) HSC input wiring, npn (sink) pnp Input Wiring Input wiring pnp (source) HSC input wiring, pnp (source) Shaft-encoder Unitronics...
  • Page 7 To increase the life span of the relay output contacts and protect the device from potential damage by reverse EMF, connect: A clamping diode in parallel with each inductive DC load An RC snubber circuit in parallel with each inductive AC load Unitronics...
  • Page 8: Power Supply

    By factory default, the port is set to RS232, termination ON. Use RS232 to download programs from a PC, and to communicate with serial devices and applications, such as SCADA. Use RS485 to create a multi-drop network containing up to 32 devices. Unitronics...
  • Page 9 To change the communication setting to RS485, both communication standard jumpers must be moved. To change the RS485 termination, both termination jumpers must be moved. To access the jumpers, you must open the controller according to the instructions beginning on page 10. Unitronics...
  • Page 10: Opening The Controller

    Do not force the board into place; doing so may damage the controller. 2. Replace the back cover of the controller and fasten the corner screws. Note: You must replace the back cover securely before powering up the controller. Unitronics...
  • Page 11 Automation Ltd - 01480 395256 The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
