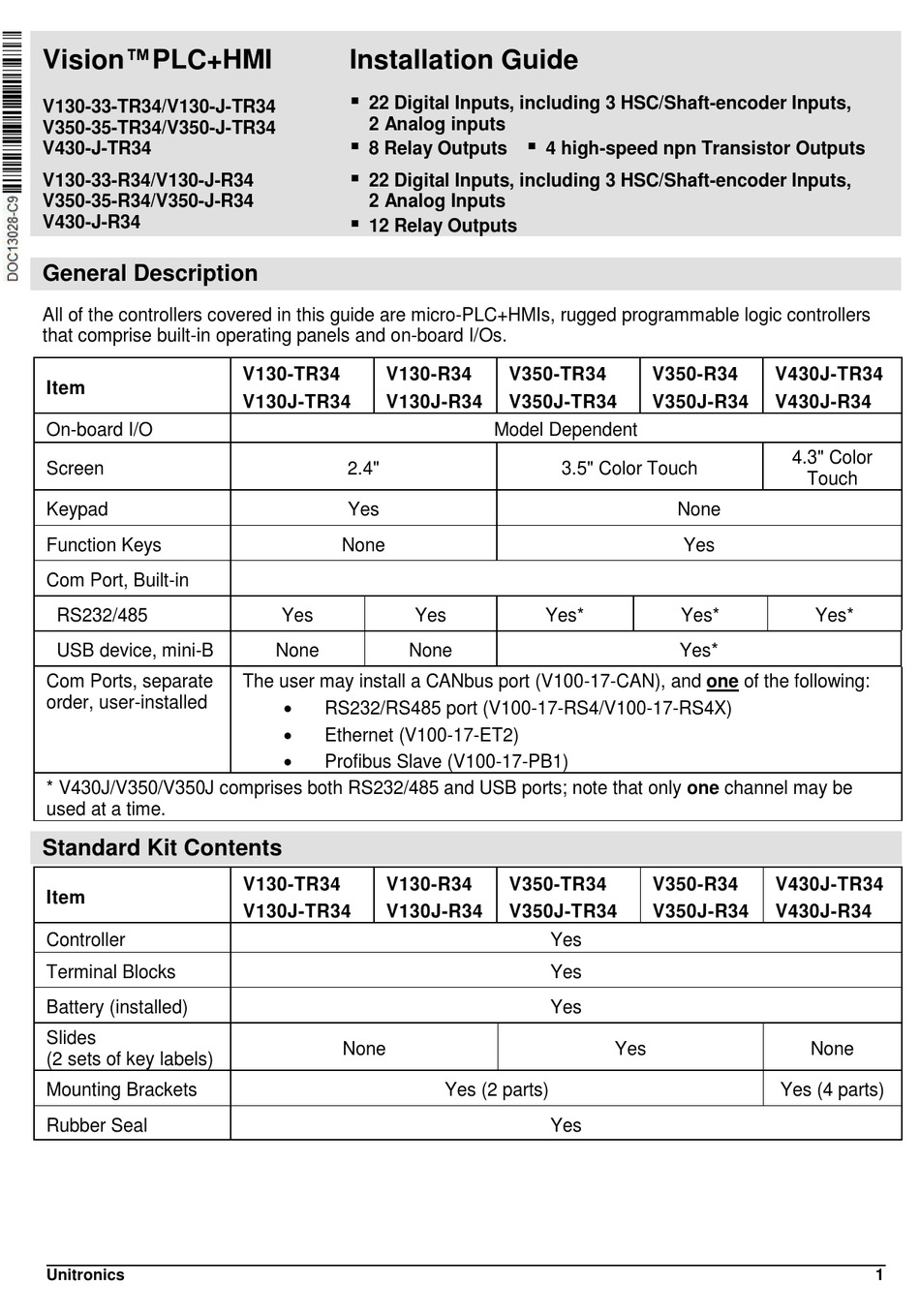

Vision™PLC+HMI
V130-33-TR34/V130-J-TR34
V350-35-TR34/V350-J-TR34
V430-J-TR34
V130-33-R34/V130-J-R34
V350-35-R34/V350-J-R34
V430-J-R34
General Description
All of the controllers covered in this guide are micro-PLC+HMIs, rugged programmable logic controllers
that comprise built-in operating panels and on-board I/Os.
Item
On-board I/O
Screen
Keypad
Function Keys
Com Port, Built-in
RS232/485
USB device, mini-B
Com Ports, separate
order, user-installed
* V430J/V350/V350J comprises both RS232/485 and USB ports; note that only one channel may be
used at a time.
Standard Kit Contents
Item
Controller
Terminal Blocks
Battery (installed)
Slides
(2 sets of key labels)
Mounting Brackets
Rubber Seal
Unitronics
Installation Guide
22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,
2 Analog inputs
8 Relay Outputs
22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,
2 Analog Inputs
12 Relay Outputs
V130-TR34
V130-R34
V130J-TR34
V130J-R34
2.4"
Yes
None
Yes
Yes
None
None
The user may install a CANbus port (V100-17-CAN), and one of the following:
RS232/RS485 port (V100-17-RS4/V100-17-RS4X)
Ethernet (V100-17-ET2)
Profibus Slave (V100-17-PB1)
V130-TR34
V130-R34
V130J-TR34
V130J-R34
None
4 high-speed npn Transistor Outputs
V350-TR34
V350J-TR34
Model Dependent
3.5" Color Touch
Yes*
V350-TR34
V350J-TR34
Yes
Yes
Yes
Yes
Yes (2 parts)
Yes
V350-R34
V430J-TR34
V350J-R34
V430J-R34
4.3" Color
Touch
None
Yes
Yes*
Yes*
Yes*
V350-R34
V430J-TR34
V350J-R34
V430J-R34
None
Yes (4 parts)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vision V130-TR34 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitronics Vision V130-TR34

  • Page 1 Standard Kit Contents V130-TR34 V130-R34 V350-TR34 V350-R34 V430J-TR34 Item V130J-TR34 V130J-R34 V350J-TR34 V350J-R34 V430J-R34 Controller Terminal Blocks Battery (installed) Slides None None (2 sets of key labels) Mounting Brackets Yes (2 parts) Yes (4 parts) Rubber Seal Unitronics...
  • Page 2: Environmental Considerations

     All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples.  Please dispose of this product according to local and national standards and regulations.
  • Page 3 Vision™PLC+HMI Mounting Note that figures are for illustrative purposes only. Dimensions: V130/V350/V130J/V350J * Note that for models V130J/V350J, the bezel width is 6.7 mm (0.26”). Dimensions: V430J Unitronics...
  • Page 4 4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while tightening the screw. 5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the accompanying figures. V130/V350/V130J/V350J V430J Unitronics...
  • Page 5  Allow for voltage drop and noise interference with I/O lines used over an extended distance. Use wire that is properly sized for the load.  The controller and I/O signals must be connected to the same 0V signal. Unitronics...
  • Page 6 JP3 (all Inputs) npn (sink) pnp (source)* Inputs 14/15: Set as Digital or Analog Set to JP1 (Input 14) JP2 (Input 15) Digital* Analog Analog Inputs AN0/AN1: Set Type Set to JP5 (AN0) JP4 (AN1) Voltage Current* *Default settings Unitronics...
  • Page 7 Vision™PLC+HMI I/O Wiring npn (sink) Input Wiring Input wiring HSC input wiring pnp (source) Input Wiring Input wiring HSC input wiring Shaft-encoder Unitronics...
  • Page 8 Analog input wiring, current (3-wire) Analog input wiring, current (4-wire) Analog input wiring, voltage  Shields should be connected at the signal’s source. The 0V signal of the analog input must be connected to the controller’s 0V.  npn Outputs TR34 Unitronics...
  • Page 9: Power Supply

    To maximize system performance, avoid electromagnetic interference by:  Mounting the controller on a metal panel.  Connect each common and ground connection directly to the earth ground of your system.  For ground wiring uses the shortest and thickest possible wire. Unitronics...
  • Page 10 To do so, remove the RS485 connector (pins 1 & 6) from the PLC and connect a standard RS232 programming cable. Note that this is possible only if DTR and DSR signals of RS232 are not used (which is the standard case). Unitronics...
  • Page 11 ** Causes the unit to function as an end unit in an RS485 network USB Port  The USB port is not isolated. Caution Make sure that the PC and the controller are grounded to same potential. The USB port may be used for programming, OS download, and PC access. Unitronics...
  • Page 12 Note that you must replace the back cover securely before powering up the controller. The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market.
