Communication Ports
The RUGGEDCOM RSG2100PF can be equipped with various types of communication
ports to enhance its abilities and performance.
Module Assignment
Figure 4.1

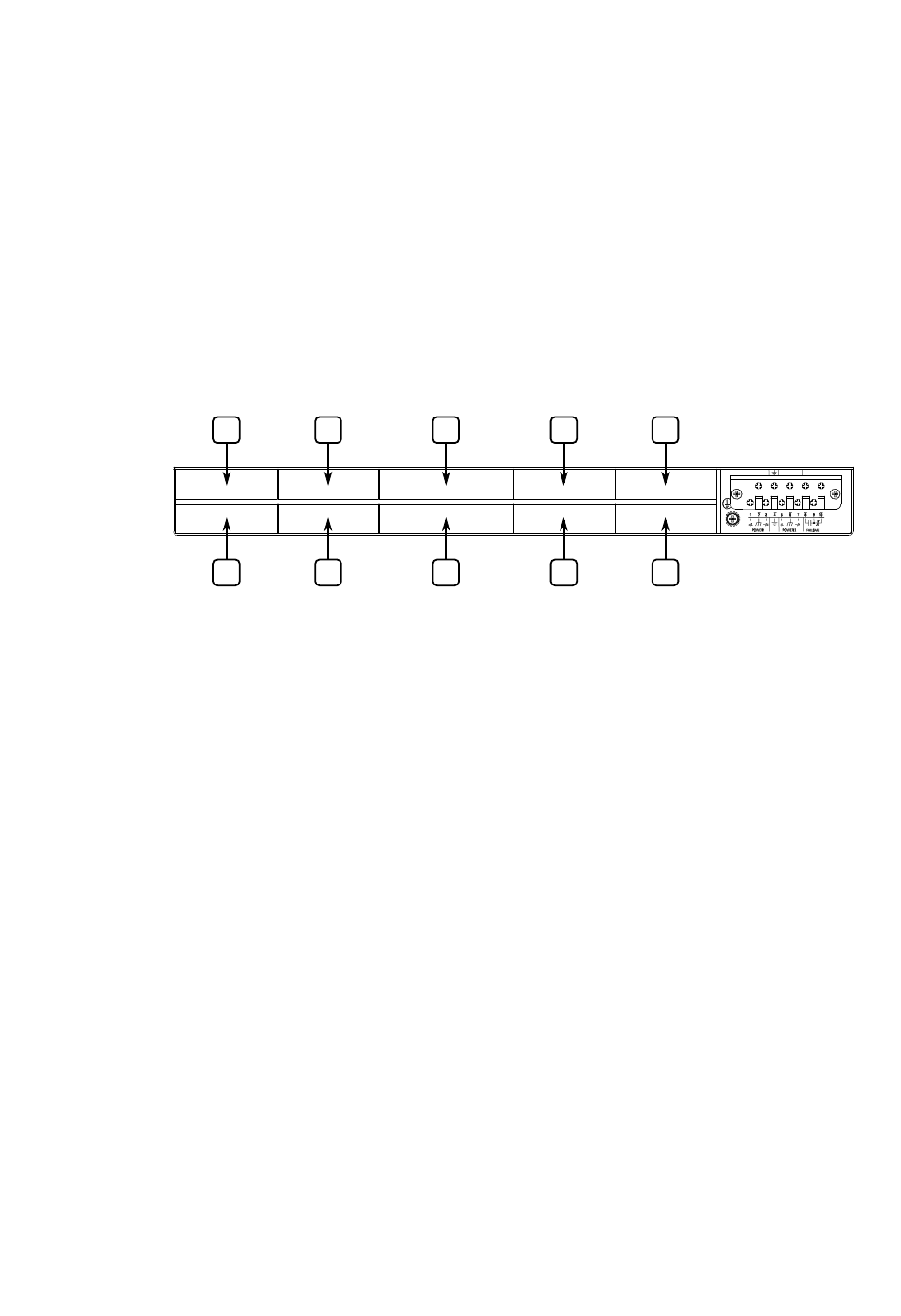

Each type of module has a specific location in the RUGGEDCOM RSG2100PF chassis:
•
•
•
•
•
The exact configuration of the device can be determined by reading the factory
data file through the RUGGEDCOM RSG2100PF user interface. For more information
about how to read the factory data file, refer to the RUGGEDCOM ROS Configuration
Manual for the RUGGEDCOM RSG2100PF.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM RSG2100PF
Installation Manual, 07/2021, C79000-G8976-1345-11
1
3
2
4
Module Assignment
Slot 5 supports a pair of Gigabit Ethernet (1 Gbps) ports
Slot 6 supports a single Gigabit Ethernet (1 Gbps) port
Slot 9 houses a standard two-port 10/100Base-TX 802.3af (PoE) module
Slot 10 supports an additional two-port 10/100Base-TX 802.3af (PoE) module for
extra PoE ports
All other ports support any combination of fiber or copper Ethernet connectors
up to 100 Mbps
5
7
6
8
4
9
10
