5) Wiring

Input Power and Fuses

5) Wiring the Drive

b. Fuses

In order to fulfill the requirements of Underwriters Laboratory (UL), all drives must

be provided with fast-acting input power line fuses. The proper style and rating for

these fuses is specified in the Instruction Manual. Terminals 91 (L1), 92 (L2) and 93

(L3) on a VLT are always used for incoming power.

Rev.02

b. Fuses

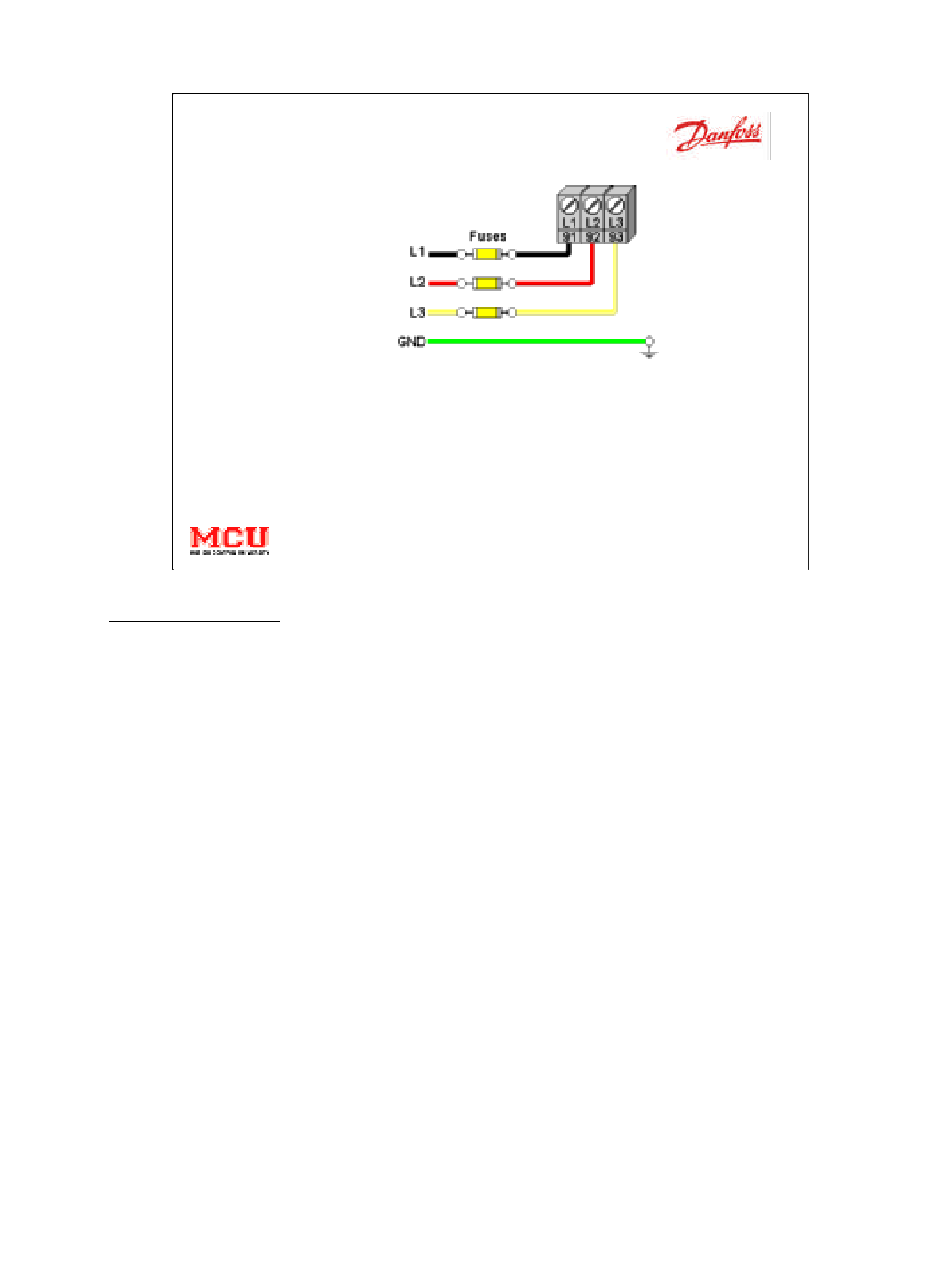

• All drives must have input fuses installed in the

power supply to the drive, some VLTs have fuses

included

• Refer to the Instruction Manual for fuse sizing

• Terminals 91(L1), 92(L2) and 93(L3) are always

used for incoming power.
