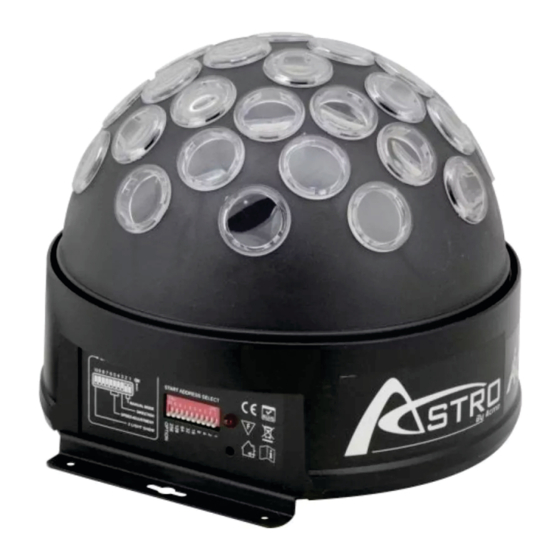

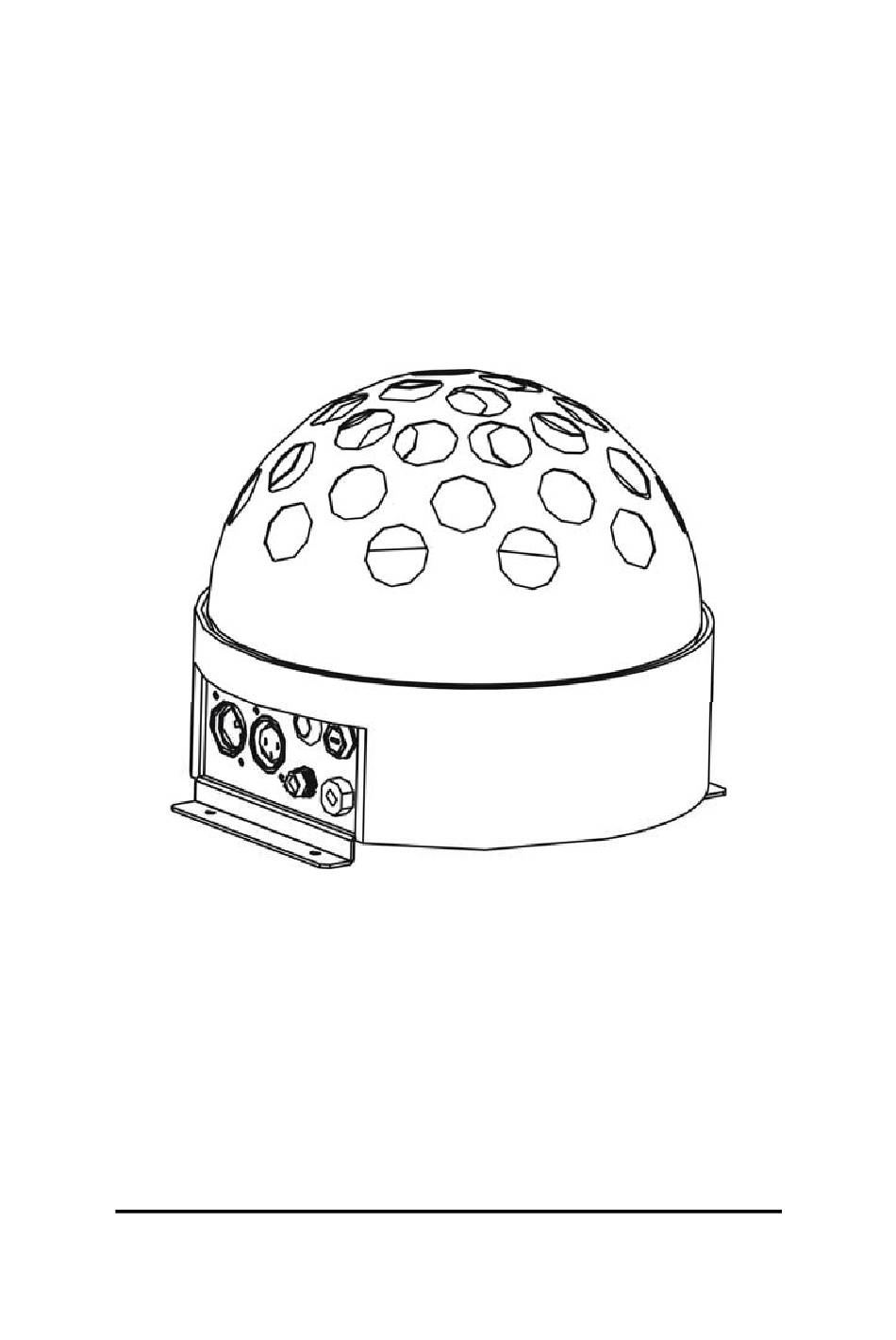

- Page 1 LED-256D RGB User Manual Professional Entertainment Technology...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. Installation 4. How to Control the Unit 5. DMX 512 Configuration 6. DMX 512 Connection 7. Fixture Cleaning Широкий ассортимент оборудования ACME на www.maxlight.ru... -
Page 3: Safety Instruction
1. Safety Instruction Please read the instruction carefully which including important information about the installation, operation and maintenance. WARNING ♦ Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ♦... -
Page 4: Technical Specification
2. Technical Specification • It can be operated by DMX512 control or can be used as an individual unit without controller. • It can be linked together as many as required in master/slave mode, and perform the great built-in programmed lighting shows triggered by music. •... -
Page 5: How To Control The Unit
4. How To Control The Unit Three ways to operation: A. Master/Slave operation B. Easy controller CA-8 C. Universal DMX controller A. Master/Slave operation The unit can be linked together in daisy chain as many as you need in master/slave mode to perform the great built-in pre-programmed lighting shows triggered by music. - Page 6 Blackout the unit Stand by 1. Synchronous Strobe Rotation Speed 2. Two light Strobe Function 3. Sound Strobe Strobe (LED OFF) Mode Rotation (LED ON) C. Universal DMX controller When using a universal DMX controller to control the chain of units, you have to set DMX address by Dip switches from 1 to 9 to make sure all the units will receive its DMX signal.
-
Page 7: Dmx 512 Configuration
5. DMX 512 Configuration... -
Page 8: Dmx 512 Connection
6. DMX 512 Connection The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. At last unit, the DMX cable has to be terminated with a terminator. -
Page 9: Fixture Cleaning
7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. - Page 10 EC - Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
