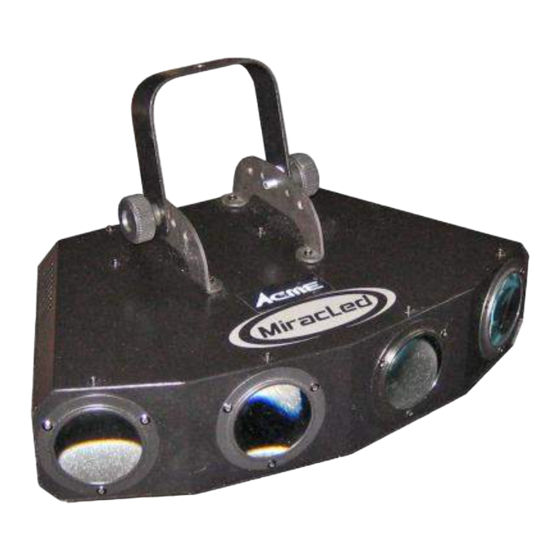

- Page 1 LED‐747‐1W (RGBW/RGBA) User Manual Please read the instruction carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions....................2 2. Technical Specifications ....................3 3. How To Set The Unit ....................4 3.1 Control Panel ......................4 3.2 Main Function ....................5 4. How To Control The Unit ..................9 4.1 Master/Slave Built In Preprogrammed Function ..........9 4.2 Easy Controller....................9 4.3 DMX Controller....................10 5. DMX 512 Configuration ..................10 6. DMX512 Connection ....................11 7. Troubleshooting......................12 8. Fixture Cleaning......................13 ... -
Page 3: Safety Instructions
1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. The unit is for indoor use only. Use only in a dry location. The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard. Use safety cables when fixing this unit. Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature is higher than this. Turn off the power and allow about 15 minutes for the unit to cool down before servicing. In the event of a serious operating problem, stop using the unit immediately. Never try to repair ... -
Page 4: Technical Specifications
Caution: There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Make sure that the structure to which you ... -
Page 5: How To Set The Unit
◇ Beam Angle: 5° ◇ Weight: 5Kgs ◇ Dimension: 430 × 256 × 172mm 3. How To Set The Unit ... -
Page 6: Main Function
LED: 4. DMX On DMX input present 5. MASTER On Master Mode 6. SLAVE On Slave Mode 7. SOUND Flashing Sound activation 8. BUTTON: MENU To select the programming functions DOWN To go backward in the selected functions UP To go forward in the selected functions ... - Page 7 DMX 512 ADDRESS To select the , press the ENTER button to show the DMX ADDRESS on the display. Use the DOWN/UP button to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to select, to go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. ...
- Page 8 SHOW MODE To select , press the ENTER button to show the SHOW MODE on the display. Use the DOWN/UP button to select (Random show), (Show 1) up to (Show 12) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. SLAVE MODE To select , press the ENTER button to show the SLAVE MODE on the display. Use the DOWN/UP button to select (master), (Slave 1), (Slave 2) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. SOUND MODE To select , press the ENTER button to show SOUND MODE on the display. Use the DOWN/UP button to select (sound on) or (sound off) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. BLACKOUT MODE To select ...
- Page 9 DOWN/UP button to select (LED on) or (LED off) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. DISPLAY INVERSE To select , press the ENTER button to show DISPLAY on the display, and press the ENTER button again, it will show the (inversion). To go back to the functions without any change press the MENU button. AUTO TEST To select , press the ENTER button to show TEST on the display and the unit will run a self‐test . To go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. FIXTURE HOURS To select , press the ENTER button to show FIXTURE HOURS on the display and the display will show the number of working hours of the unit . To go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. SOFTWARE VERSION To select , press the ENTER button to show SOFTWARE VERSION on the display and the display will show the version of software of the unit . To go back to the functions without any changes press the MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit the current mode. ...
-
Page 10: How To Control The Unit
4. How To Control The Unit You can operate the unit in three ways: 1. Master/slave built‐in preprogram function 2. Easy controller (optional CA‐8) 3. Universal DMX controller You do not need to turn the unit off when you change the DMX address, the new DMX address setting will take effect immediately. 4.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. You have to set the first unit in master mode and select ... -
Page 11: Dmx Controller
4.3 DMX Controller By using a universal DMX controller to control the units, you must set a DMX address from 1 to 512. Press the MENU button up to when is showing on the display. Press the ENTER button and the display will blink. Use the DOWN/UP button to change the DMX512 address. Once the address has been selected, press and hold the ENTER button until the display stops blinking or it will store automatically after 7 seconds. To go back to the functions without any changes press the MENU button again. Please refer to the following diagram to address your DMX512 channel for the first 4 units： 5. DMX 512 Configuration 1 Channels Mode: ... -
Page 12: Dmx512 Connection
6. DMX512 Connection 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter‐cable. 2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX‐) and pin 3(DMX+) of a 3‐pin XLR‐plug and plug it in the DMX‐output of the last unit. 3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very ... -
Page 13: Troubleshooting
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. Check the power on LED. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors and cables to see if link properly. 2. If the DMX LED is on but no response check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems check the cables on connectors. 4. Try to another DMX controller. 5. Check if the DMX cables run near or run alongside high voltage cables that may cause interference to DMX circuits. C. Some units don’t respond to the easy controller 1. You may have a break in the DMX cabling. Check the LED for the response of the master/ slave mode signal. 2. Wrong DMX address in the unit. Set the proper address. D. No response to the sound 1. Make sure the unit is set into the correct mode. 2. Check the microphone to see if it is good by tapping it. 3. Make sure the fixture is not set into Blackout mode ... -
Page 14: Fixture Cleaning
8. Fixture Cleaning The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 30 days. ... - Page 15 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103‐1: 2009 ; EN55103‐2: 2009; EN62471: 2008; EN61000‐3‐2: 2006 + A1:2009 + A2:2009; EN61000‐3‐3: 2008. & Harmonized Standard EN 60598‐1:2008 + All:2009; EN 60598‐2‐17:1989 + A2:1991; EN 62471:2008; EN 62493: 2010 Safety of household and similar electrical appliances Part 1: General requirements ...
- Page 16 Innovation, Quality, Performance ...
