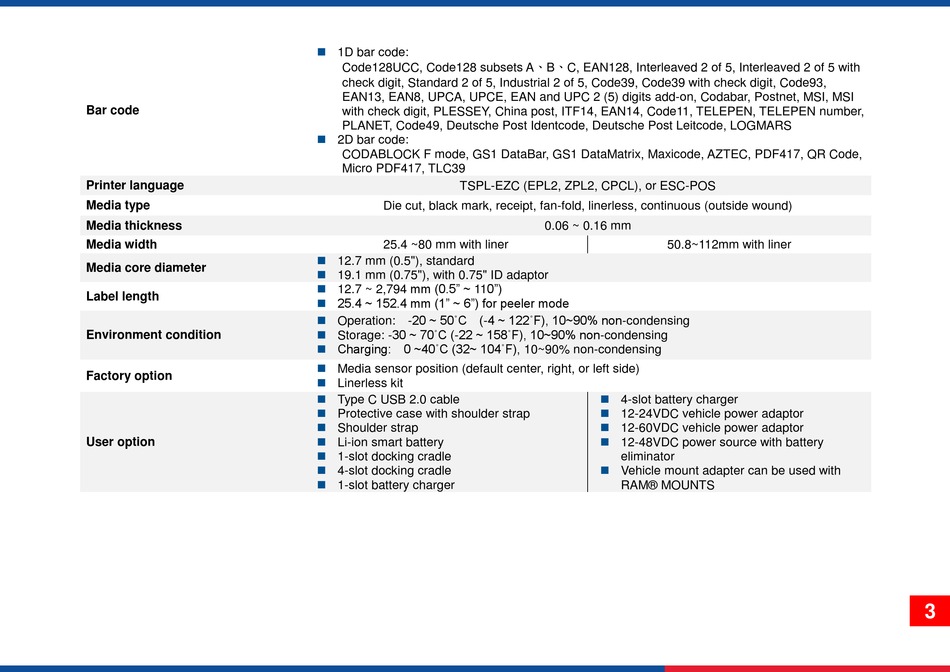

TSC Alpha-30L User Manual page 8

Bar code
Printer language
Media type
Media thickness
Media width
Media core diameter
Label length
Environment condition
Factory option
User option

1D bar code:
Code128UCC, Code128 subsets A 、 B 、 C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with
check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93,
EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI
with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number,
PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

2D bar code:
CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code,
Micro PDF417, TLC39
TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS
Die cut, black mark, receipt, fan-fold, linerless, continuous (outside wound)
25.4 ~80 mm with liner

12.7 mm (0.5"), standard

19.1 mm (0.75"), with 0.75" ID adaptor
 12.7 ~ 2,794 mm (0.5" ~ 110")
 25.4 ~ 152.4 mm (1" ~ 6") for peeler mode
 Operation: -20 ~ 50˚C (-4 ~ 122˚F), 10~90% non-condensing
Storage: -30 ~ 70˚C (-22 ~ 158˚F), 10~90% non-condensing

 Charging: 0 ~40˚C (32~ 104˚F), 10~90% non-condensing

Media sensor position (default center, right, or left side)

Linerless kit

Type C USB 2.0 cable

Protective case with shoulder strap

Shoulder strap

Li-ion smart battery

1-slot docking cradle

4-slot docking cradle

1-slot battery charger
0.06 ~ 0.16 mm
50.8~112mm with liner

4-slot battery charger

12-24VDC vehicle power adaptor

12-60VDC vehicle power adaptor

12-48VDC power source with battery
eliminator

Vehicle mount adapter can be used with
RAM® MOUNTS
3
