Product Specification - TSC Alpha-30L User Manual

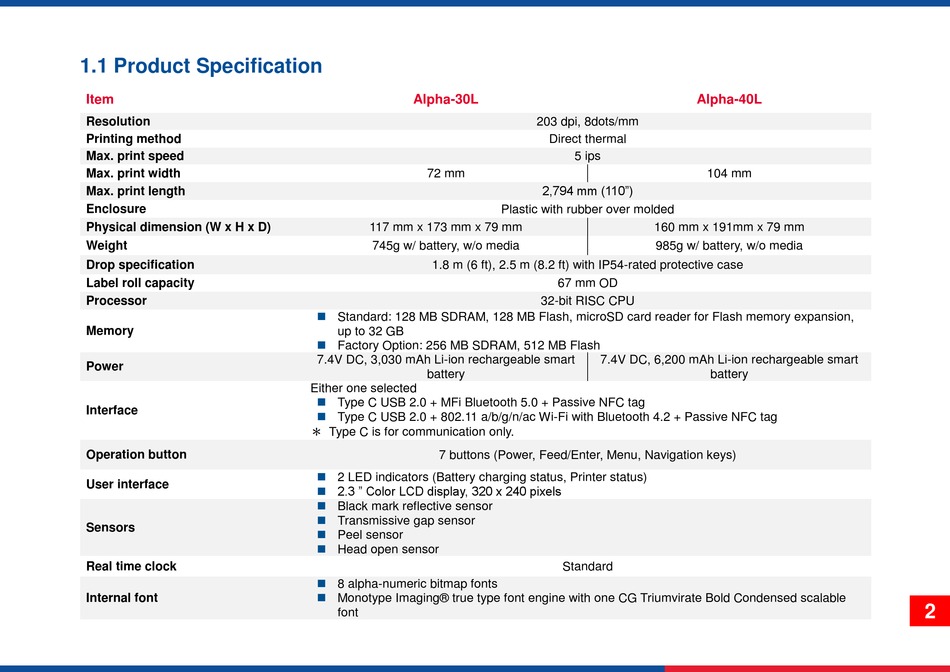

1.1 Product Specification

Item
Resolution
Printing method
Max. print speed
Max. print width
Max. print length
Enclosure
Physical dimension (W x H x D)
Weight
Drop specification
Label roll capacity
Processor
Memory
Power
Interface
Operation button
User interface
Sensors
Real time clock
Internal font
Alpha-30L
72 mm
117 mm x 173 mm x 79 mm
745g w/ battery, w/o media
1.8 m (6 ft), 2.5 m (8.2 ft) with IP54-rated protective case

Standard: 128 MB SDRAM, 128 MB Flash, microSD card reader for Flash memory expansion,
up to 32 GB

Factory Option: 256 MB SDRAM, 512 MB Flash
7.4V DC, 3,030 mAh Li-ion rechargeable smart
battery
Either one selected

Type C USB 2.0 + MFi Bluetooth 5.0 + Passive NFC tag

Type C USB 2.0 + 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 + Passive NFC tag
＊ Type C is for communication only.
7 buttons (Power, Feed/Enter, Menu, Navigation keys)

2 LED indicators (Battery charging status, Printer status)
 2.3 " Color LCD display, 320 x 240 pixels

Black mark reflective sensor

Transmissive gap sensor

Peel sensor

Head open sensor

8 alpha-numeric bitmap fonts

Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable
font
203 dpi, 8dots/mm
Direct thermal
5 ips
2,794 mm (110")
Plastic with rubber over molded
160 mm x 191mm x 79 mm
985g w/ battery, w/o media
67 mm OD
32-bit RISC CPU
7.4V DC, 6,200 mAh Li-ion rechargeable smart
Standard
Alpha-40L
104 mm
battery
2
