JOYTECH PY500AC User Manual page 8

PY500AC SLIDING GATE OPERATOR
Wiring Wiring notes Wiring Wiring notes notes notes of of of of control control control control board board board board

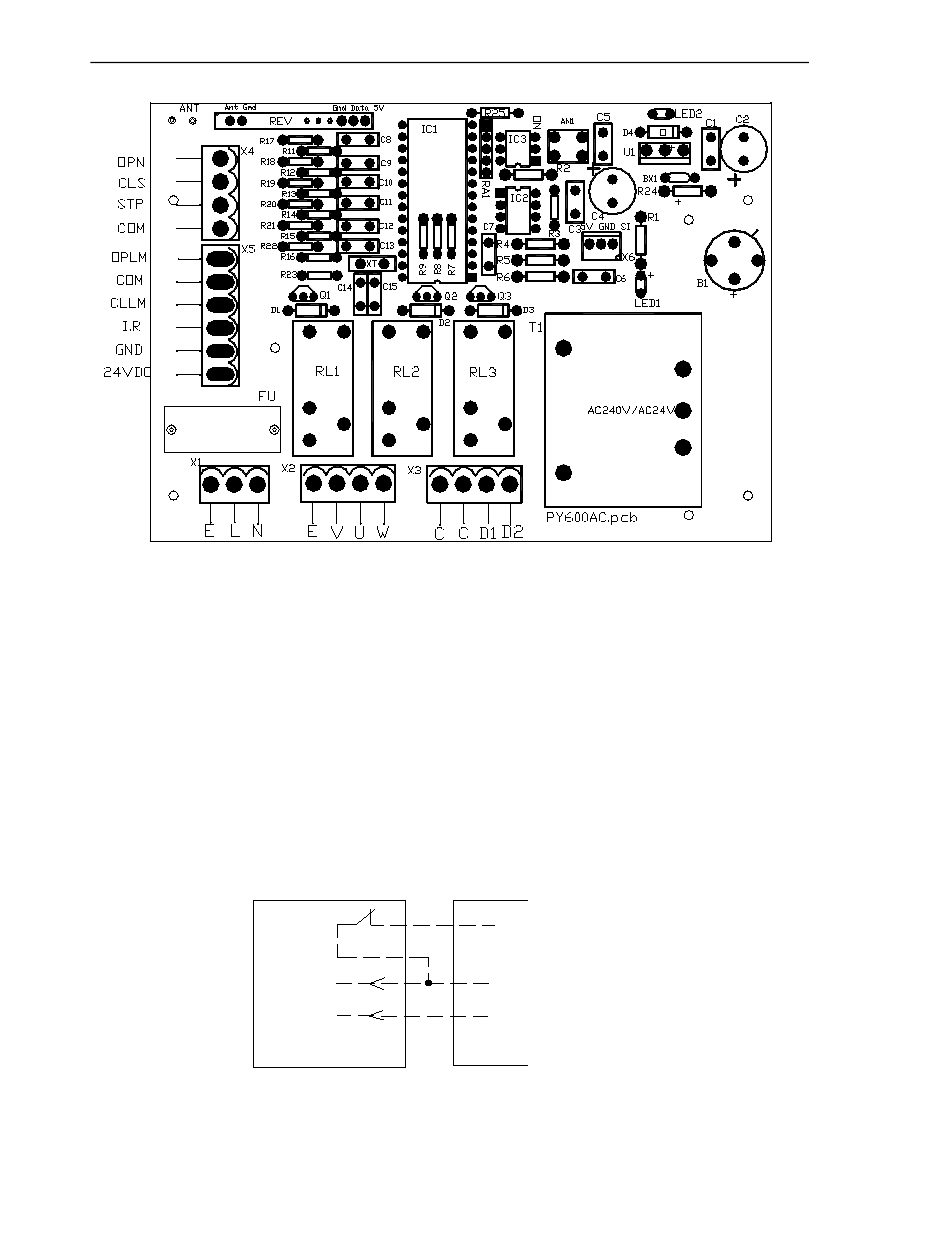

a. Power Input(X1):E (Earth),L (Live),N (Neutral).
PY500AC: AC220V
PY500ACU:AC110V
b. Caution light: connect caution light wire toD1 and D2(terminal X3)
PY500AC: AC220V
PY500ACU : AC110V
c. Output power supply: 24VDC, COM (COM), I.R. (N.C Infrared)
If the infrared beam is interrupted during closing, the gate will reverse and open immediately. The product
is not factory equipped with an infrared device, the infrared output signal must be N.C.
All manuals and user guides at all-guides.com
Fig.8
Out
Signal
GND
24VDC
Infrared
Infrared with DC input
7
I.R
Terminal X2
COM
24VDC
Control board
