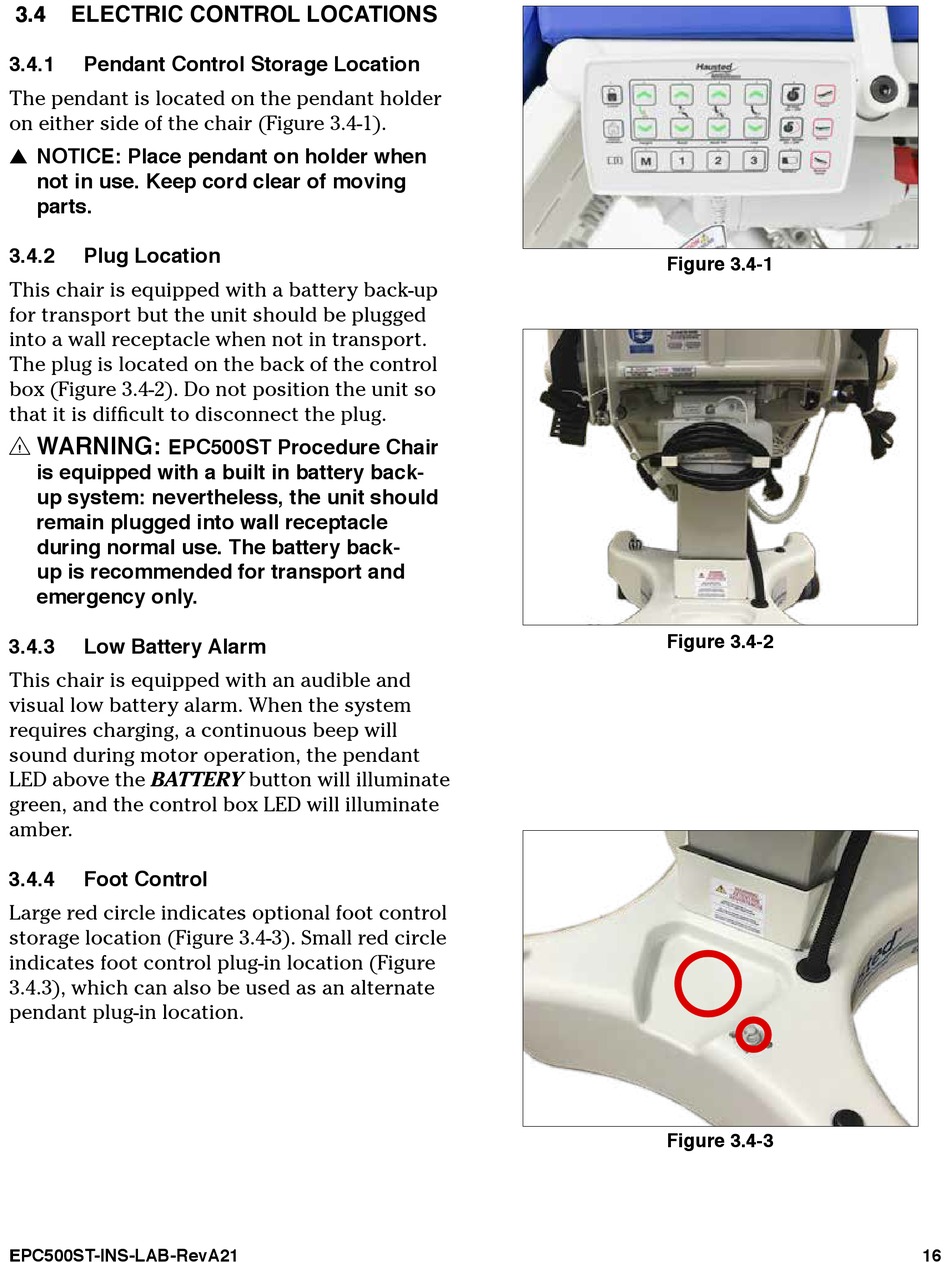

3.4

ELECTRIC CONTROL LOCATIONS

3.4.1

Pendant Control Storage Location

The pendant is located on the pendant holder
on either side of the chair (Figure 3.4-1).
s NOTICE: Place pendant on holder when
not in use. Keep cord clear of moving
parts.
3.4.2

Plug Location

This chair is equipped with a battery back-up
for transport but the unit should be plugged
into a wall receptacle when not in transport.
The plug is located on the back of the control
box (Figure 3.4-2). Do not position the unit so
that it is difficult to disconnect the plug.
WARNING:
EPC500ST Procedure Chair
is equipped with a built in battery back-
up system: nevertheless, the unit should
remain plugged into wall receptacle
during normal use. The battery back-
up is recommended for transport and
emergency only.
3.4.3

Low Battery Alarm

This chair is equipped with an audible and
visual low battery alarm. When the system
requires charging, a continuous beep will
sound during motor operation, the pendant
LED above the BATTERY button will illuminate
green, and the control box LED will illuminate
amber.
3.4.4

Foot Control

Large red circle indicates optional foot control
storage location (Figure 3.4-3). Small red circle
indicates foot control plug-in location (Figure
3.4.3), which can also be used as an alternate
pendant plug-in location.
EPC500ST-INS-LAB-RevA21
Figure 3.4-1
Figure 3.4-2
Figure 3.4-3
16
