Setup and Adjustments

Setting the Device Addresses
Metasys field controllers are master devices on MS/TP
(SA or FC) buses. Before operating controllers on a bus,
you must set a valid and unique device address for each
controller on the bus. You set a controller's device
address by setting the positions of the switches on the
DIP switch block at the top of the controller
Device addresses 4 through 127 are the valid addresses
for these controllers.
The DIP switch block has eight switches numbered 128,
64, 32, 16, 8, 4, 2, and 1
1 are device address switches. Switch 128 is a mode
switch that enables a controller to operate on a ZFR/ZFR
Pro Series Wireless Field Bus. Set switch 128 to off to
enable the hard-wired SA or FC bus application.

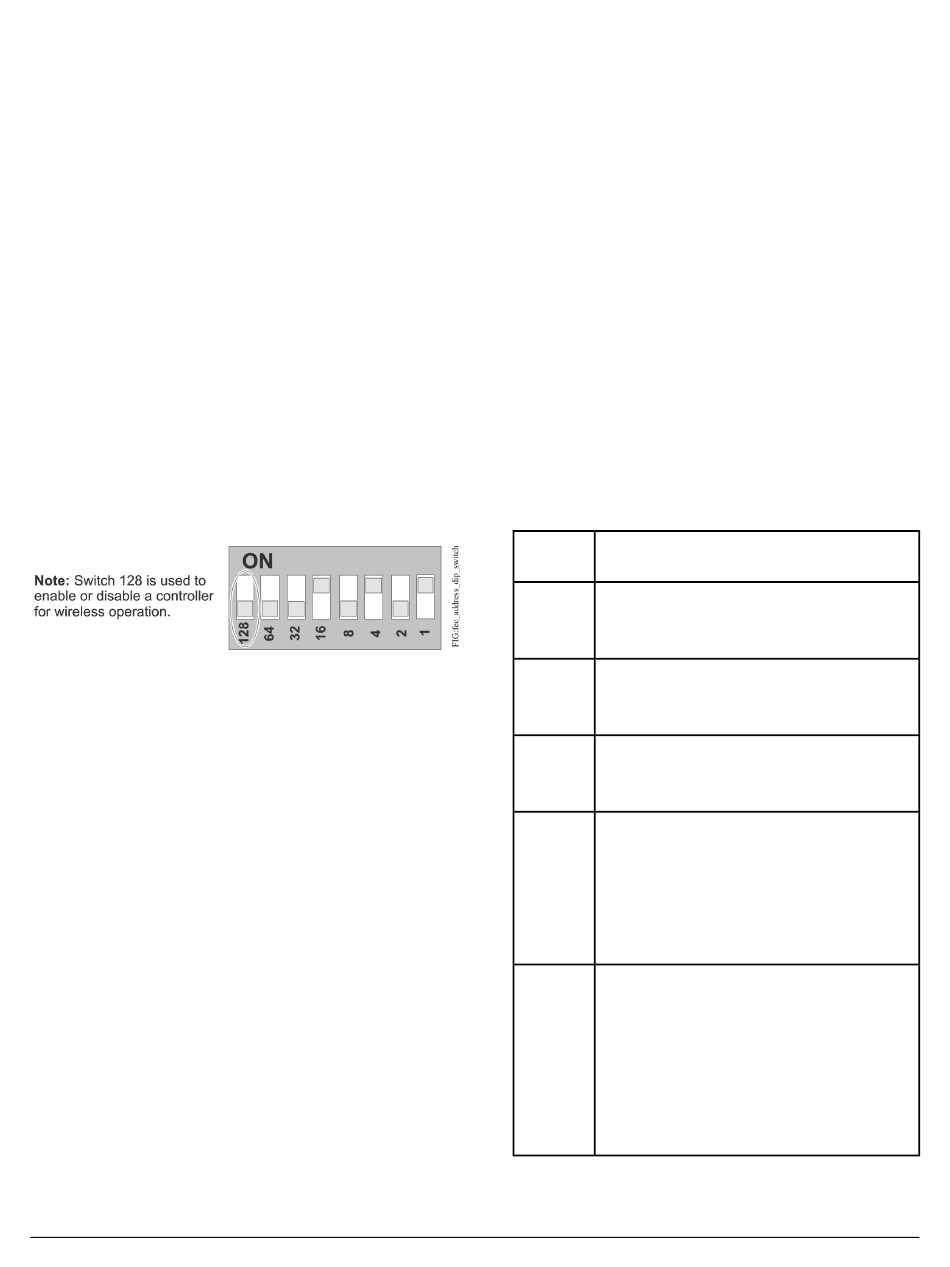

Figure 10: Device Address DIP Switch Block Set to
Address 21
To set the device addresses on Metasys field controllers:
1. Set all of the switches on the address DIP switch
block (128 through 1) to Off.
2. Set one or more of the seven address switches (64
though 1) to ON, so that the sum of the switch
numbers set to ON equals the intended device
address. See Table 5
Set the highest number switch that is less than or
equal to the intended device address to ON. Then
continue setting lower numbered switches until the
total equals the intended address. For example, if the
intended device address is 21, set switch 16 to ON
first, then set switch 4 ON, followed by switch 1
(16+4+1= 21). See
3. Set switch 128 to OFF.
Note: Do not connect a controller with switch 128
set to ON to an active (hard-wired) SA or FC
bus. When a controller with switch 128 set to
ON and a device address from 4 to 127 is
connected to a wired field bus, the entire field
bus is rendered inoperable until the controller
is disconnected or switch 128 is set to Off.
IOU4710 Input/Output Module Installation Instructions
(Figure
(Figure 10). Switches 64 through
for valid device addresses.
Figure 10.
4. Set a unique and sequential device address for each
of the controllers connected on the SA or FC bus
starting with device address 4.
To ensure the best bus performance, set sequential
device addresses with no gaps in the device address
range (4, 5, 6, 7, 8, 9, and so on). The controllers do
not need to be physically connected on the bus in
their numerical device address order.
4).
5. Write each controller's device address on the white
label below the DIP switch block on the controller's
cover.
Table 5 describes the FC bus and SA bus devices
addresses for Johnson Controls MS/TP
communications bus applications.
Refer to the MS/TP Communications Bus Technical
Bulletin (LIT-12011034) for more information on
controller device addresses and how to set them on
MS/TP buses.
Table 5: SA/FC Bus Device Address Descriptions
Device Use on Description
Address
0 Reserved for FC Bus Supervisory Controller
(not for use on controllers).
(Switch
128 Off)
1 to 3 Reserved for peripheral devices (not for use
on controllers).
(Switch
128 Off)
4 to 127 Used for MS/TP master devices controllers)
that are hardwired to an SA Bus or FC Bus.
(Switch
128 Off)
0 to 3 Reserved addresses for wired slave devices
(not for use on controllers).
(Switch
128 ON) Note: Metasys field controllers ship with switch
128 ON and the remaining address switches
off rendering the controllers wired slave
devices, which do not operate on MS/TP
buses.
4 to 127 Valid for MS/TP Master controllers on wireless
FC Buses only.
(Switch
128 ON) Note: Do not connect a controller with switch
128 ON to an active (hard-wired) SA or FC
Bus. When a controller with switch 128 ON
and a device address from 4 to 127 is
connected to a wired field bus, the entire field
bus is rendered inoperable until the controller
is disconnected or switch 128 is set to Off.
