Status or Setup Value:
input status, output status
value for the displayed input sensor or output.
Press or to select a different Parameter
Value when the value is flashing. (
Status or Setup Identifier:
unit of measurement, output, sensor number,
or setup parameter for the displayed Status or
Setup Value. (Setup Identifier
% Output Signal Strength at Setpoint.)
M
MENU Button: Press
sensor and output setup-start-screens.
When moving through the status or setup
M
screens, press to return to the status start
screen or setup start screen.
UP and DOWN Buttons: Press
a different value for any flashing value in the
Setup Value field. In the Main/Default (Sensor
Status) screen, press and hold both
for 5 seconds to access the Setup Start screens.

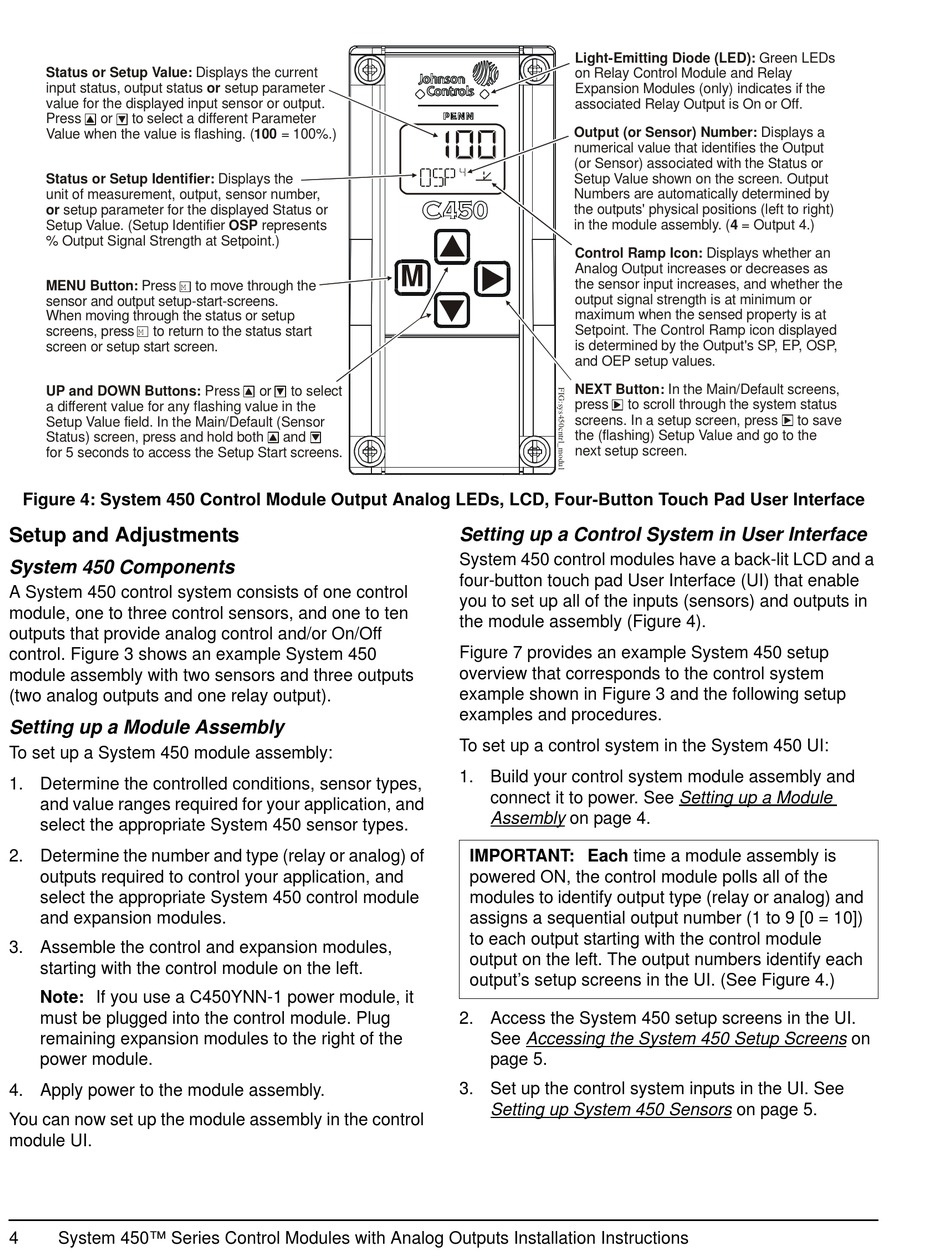

Figure 4: System 450 Control Module Output Analog LEDs, LCD, Four-Button Touch Pad User Interface

Setup and Adjustments

System 450 Components
A System 450 control system consists of one control
module, one to three control sensors, and one to ten
outputs that provide analog control and/or On/Off
control. Figure 3 shows an example System 450
module assembly with two sensors and three outputs
(two analog outputs and one relay output).
Setting up a Module Assembly
To set up a System 450 module assembly:
1. Determine the controlled conditions, sensor types,
and value ranges required for your application, and
select the appropriate System 450 sensor types.
2. Determine the number and type (relay or analog) of
outputs required to control your application, and
select the appropriate System 450 control module
and expansion modules.
3. Assemble the control and expansion modules,
starting with the control module on the left.
Note: If you use a C450YNN-1 power module, it
must be plugged into the control module. Plug
remaining expansion modules to the right of the
power module.
4. Apply power to the module assembly.
You can now set up the module assembly in the control
module UI.
4 System 450™ Series Control Modules with Analog Outputs Installation Instructions
Displays the current
or setup parameter
100 = 100%.)
Displays the
OSP represents
to move through the
or to select
and
Light-Emitting Diode (LED): Green LEDs
on Relay Control Module and Relay
Expansion Modules (only) indicates if the
associated Relay Output is On or Off.
Output (or Sensor) Number:
numerical value that identifies the Output
(or Sensor) associated with the Status or
osp
4
Setup Value shown on the screen. Output
Numbers are automatically determined by
the outputs' physical positions (left to right)
in the module assembly. ( = Output 4.)
Control Ramp Icon: Displays whether an
Analog Output increases or decreases as
M
the sensor input increases, and whether the
output signal strength is at minimum or
maximum when the sensed property is at
Setpoint. The Control Ramp icon displayed
is determined by the Output's SP, EP, OSP,
and OEP setup values.
NEXT Button: In the Main/Default screens,
press
screens. In a setup screen, press
the (flashing) Setup Value and go to the
next setup screen.
Setting up a Control System in User Interface
System 450 control modules have a back-lit LCD and a
four-button touch pad User Interface (UI) that enable
you to set up all of the inputs (sensors) and outputs in
the module assembly (Figure 4).
Figure 7 provides an example System 450 setup
overview that corresponds to the control system
example shown in Figure 3 and the following setup
examples and procedures.
To set up a control system in the System 450 UI:
1. Build your control system module assembly and
connect it to power. See Setting up a Module
Assembly on page 4.
IMPORTANT: Each time a module assembly is
powered ON, the control module polls all of the
modules to identify output type (relay or analog) and
assigns a sequential output number (1 to 9 [0 = 10])
to each output starting with the control module
output on the left. The output numbers identify each
output's setup screens in the UI. (See Figure 4.)
2. Access the System 450 setup screens in the UI.
See Accessing the System 450 Setup Screens on
page 5.
3. Set up the control system inputs in the UI. See
Setting up System 450 Sensors on page 5.
Displays a
4
to scroll through the system status
to save
