Johnson Controls MP8000 Series Installation Instructions

V-9502-95 Pneumatic Valve Actuator Positioner
Application

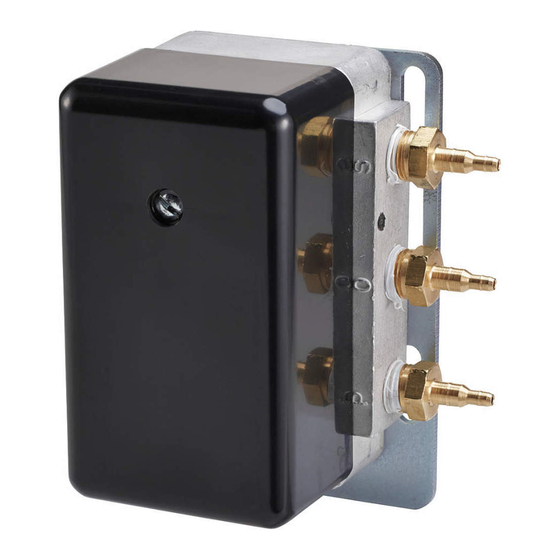

The V-9502-95 Pneumatic Valve Actuator Positioner is
a precision relay device designed to operate a
Johnson Controls MP8000 Series Valve Actuator in
applications requiring stable, accurate control. The
V-9502-95 provides maximum positioning power to
resist external forces which might otherwise overcome
the positioning power of the valve actuator. Adjustable
operating span and starting point also make the
V-9502-95 an ideal choice for valve sequencing
applications.
The V-9502-95 Positioner is mounted to the
MP8000 Series Actuator using an MP8000-6002
Positioner Mounting Kit (ordered separately). This
mounting kit contains six color-coded springs and all of
the necessary mounting hardware (as outlined in
Table 1).
© 2003 Johnson Controls, Inc.
Part No. 14-1161-68, Rev. A
MP8000 Series Actuated Valves with
Installation Instructions V-9502-95
Installation
Table 1: Contents of MP8000-6002 Positioner
Mounting Kit
Quantity
2 Yoke Bushings
1 Connector Bracket
1 Connector Arm
1 Yellow Spring (5/16 in. Stroke)
1 Blue Spring (1/2 in. Stroke)
1 White Spring (3/4 in. Stroke)
1 Gray Spring (1 in. Stroke)
1
Green Spring (1-1/4 in. Stroke)
1 Red Spring (1-1/2 in. Stroke)
Phillips-Head, Taptite Screw,
1
No. 8-32 x 1-1/4 in. (32 mm) Long
Phillips-Head, Taptite Screw,
1
No. 8-32 x 5/8 in. (16 mm) Long
Phillips-Head, Taptite Screws,
2
No. 6-32 x 1/4 in. (6 mm) Long
12 in. (305 mm) Length of
1
Black Plastic Tubing
Issue Date February 10, 2003
