Input/output module

Advertisement

Application

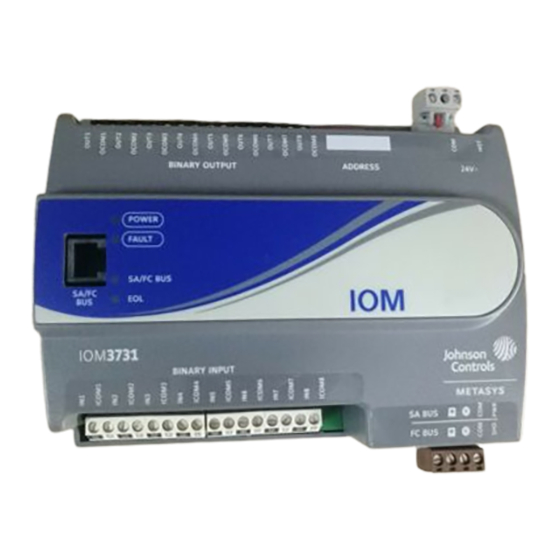

The IOM3731 Input/Output Expansion Module (IOM) is
part of the Metasys
system Field Equipment Controller
®
family. IOM field controllers expand the number of I/
O points connected to a Network Automation Engine
(NAE), Network Control Engine (NCE), Field Equipment
Controller (FEC), or Advanced Application Field Equipment
Controller (FAC) to monitor and control a wide variety of
HVAC equipment.
IOM field controllers operate on an RS-485 BACnet
TP Bus and integrate into the web-based Metasys system.
Note: At CCT Release 10.1 and later, a new capability
was introduced allowing VMAs, FECs, and FACs to
communicate by using either the BACnet or the N2
field bus networking protocol. The operation of the
IOM Input/Output Module is not affected by the
selection of the BACnet or the N2 protocol in the host
controller, when the IOM is connected to the host
controller using the SA bus. Only the BACnet protocol
is supported when the IOM is connected directly to
the trunk using the FC bus.
North American Emissions Compliance
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
IOM3731 Input/Output Module Installation Guide
®
United States
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
MS/
communications. Operation of this equipment in a
residential area may cause harmful interference, in which
case the users will be required to correct the interference
at their own expense.
Installation
Observe these guidelines when installing a controller:
• Transport the controller in the original container to
minimize vibration and shock damage.
• Verify that all parts shipped with the controller.
• Do not drop the controller or subject it to physical
shock.
Parts included
• One controller with removable terminal blocks (Power
and SA/FC bus are removable)
• One installation instructions sheet
Materials and special tools needed
• Three fasteners appropriate for the mounting surface
(M4 screws or #8 screws)
• One 20 cm (8 in.) or longer piece of 35 mm DIN rail and
appropriate hardware for DIN rail mount (only)
• Small straight-blade screwdriver for securing wires in
the terminal blocks
Physical features
Part No. 24-10143-322 Rev. J
2019-10-18
*2410143322J*
(barcode for factory use only)
MS-IOM3731

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOM3731 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls IOM3731

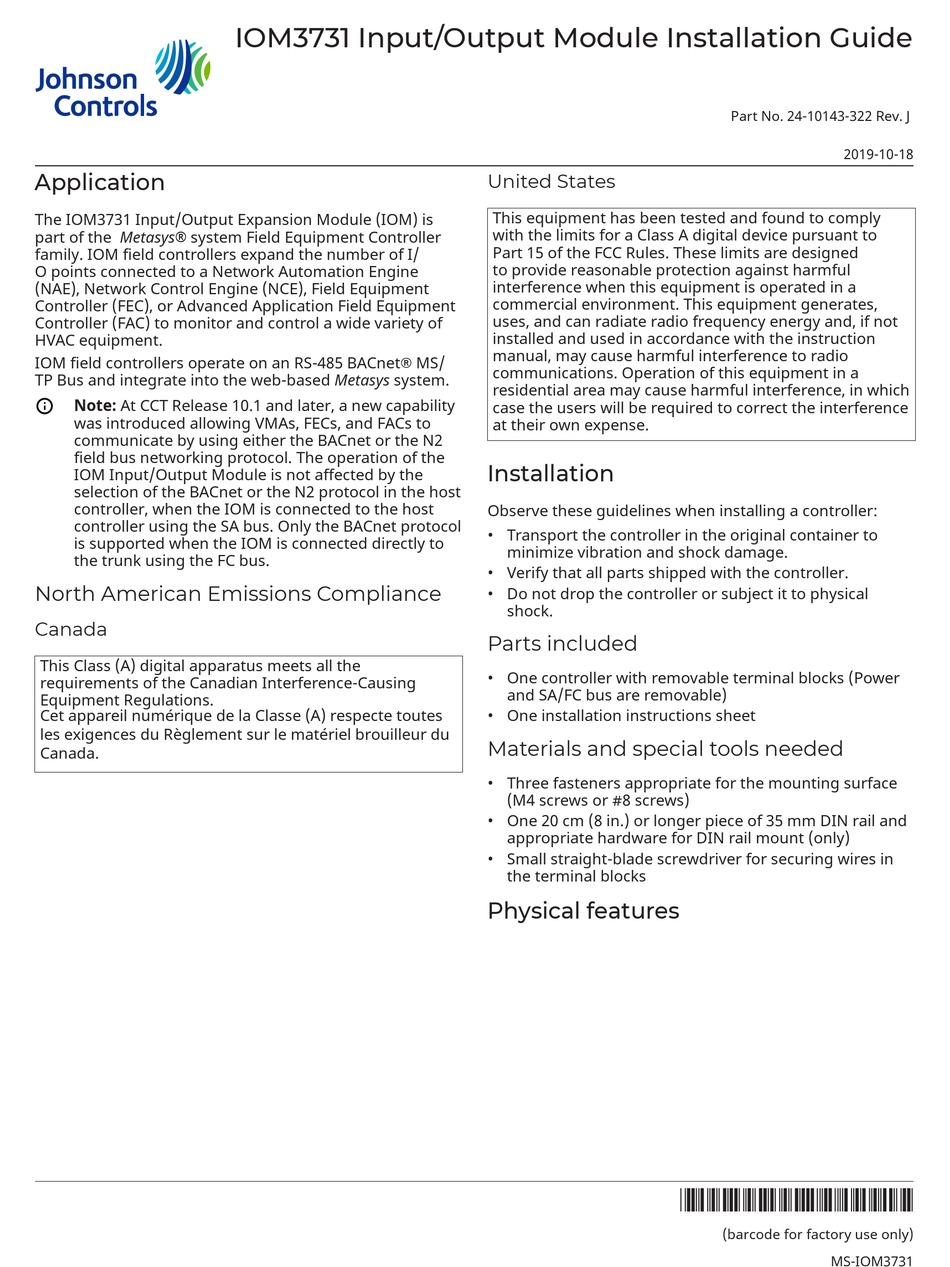

  • Page 1 2019-10-18 Application United States This equipment has been tested and found to comply The IOM3731 Input/Output Expansion Module (IOM) is with the limits for a Class A digital device pursuant to part of the Metasys system Field Equipment Controller ®...
  • Page 2 Figure 1: IOM3731 physical features Table 1: IOM3731 physical features callouts and • Mount the controller in the proper mounting position (Figure 2). descriptions • Mount the controller on a hard, even surface whenever Callo possible in wall-mount applications. Physical feature: description and references •...
  • Page 3: Wall Mount Applications

    Hold the controller in place, and insert the screws through the mounting clips and into the holes (or une décharge électrique et de provoquer des anchors). Carefully tighten all of the screws. blessures graves, voire mortelles. IOM3731 Input/Output Module Installation Guide...
  • Page 4 FEC, or VMA) supplies 15 VDC to devices on the SA When connecting the IOM to an FC bus, wire the bus bus requiring power. terminal block plugs on the controller, and the other controllers in a daisy-chain configuration using 3-wire IOM3731 Input/Output Module Installation Guide...
  • Page 5 • Inputs/outputs with cables less than 30 m (100 ft) typically do not require an offset in the software setup. Cable runs over 30 m (100 ft) may require an offset in the input/output software setup. IOM3731 Input/Output Module Installation Guide...
  • Page 6 I/O wiring ratings and requirements Table 2: IOM3731 terminal blocks, functions, ratings, requirements, and cables Terminal Determine wire size and Terminal block label Function, ratings, requirements label maximum cable length Binary Input - Dry Contact Maintained Mode 0.01 second minimum pulse width Internal 18 V, 3k ohm pull Binary Input - Pulse Counter/Accumulator Mode 0.01 second minimum pulse width...
  • Page 7 • Shielded cable is strongly recommended for all SA and FC bus cables. • Refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034) for detailed information regarding wire size and cable length requirements for the SA and FC buses. IOM3731 Input/Output Module Installation Guide...
  • Page 8 Boot mode, or a firmware mismatch exists between the controller and the ZFR1811 Wireless Field Bus Router. Blink - 2 Hz = Download or Startup in progress, not ready for normal operation IOM3731 Input/Output Module Installation Guide...
  • Page 9 Termination details See the figures in this section for the applicable termination diagrams. A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers. Table 6: Termination details Type of field device Type of Input/Output...
  • Page 10: Setup And Adjustments

    To set the device addresses on Metasys field (LIT-12011034) for more information on controller device controllers: addresses and how to set them on MS/TP buses. Set all of the switches on the address DIP switch block (128 through 1) to off. IOM3731 Input/Output Module Installation Guide...
  • Page 11: Removing The Controller Cover

    EOL switch location Table 7: SA/FC bus device address descriptions Device Use on description Figure 10: IOM3731 with cover removed showing EOL address switch location Reserved for FC Bus Supervisory Controller (not for (Switch 128 use on controllers). Off) 1 to 3...
  • Page 12: Repair Information

    EOL switch settings on SA and FC buses. If the controller is a terminating device on the FC bus, set the EOL switch to ON. If the controller is not a terminating device on the bus, set the EOL switch to Off. IOM3731 Input/Output Module Installation Guide...
  • Page 13: Technical Specifications

    Supply Voltage (North America), Safety Extra-Low Voltage (SELV) (Europe) Power Consumption 14 VA maximum for IOM3731-0A only Operating: 0°C to 50°C (32°F to 122°F); 10% to 90% RH noncondensing Ambient Conditions Storage: -40°C to 80°C (-40°F to 176°F); 5% to 95% RH noncondensing DIP switch set;...
  • Page 14: Product Warranty

    DISTRICT WUXI JIANGSU PROVINCE 214028 CHINA For more contact information, refer to www.johnsoncontrols.com/locations. © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
