HIKVISION DS-K1T8003 Series Quick Start Manual

DS-K1T8003 Series Fingerprint Access Control Terminal
Quick Start Guide
UD12126B-C
©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
It includes instructions on how to use the Product. The software embodied in the
Product is governed by the user license agreement covering that Product.
About this Manual
This Manual is subject to domestic and international copyright protection. Hangzhou
Hikvision Digital Technology Co., Ltd. ("Hikvision") reserves all rights to this manual.
This manual cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and are
registered trademarks or the subject of applications for the same by Hikvision and/or
its affiliates. Other trademarks mentioned in this manual are the properties of their
respective owners. No right of license is given to use such trademarks without express
permission.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS",
WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD
PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR
AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS
PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN
CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL
BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES
FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING
FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF
REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN
YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR
USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW,
THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To
protect data, the development of Hikvision devices incorporates privacy by design
principles. For example, for device with facial recognition features, biometrics data is
stored in your device with encryption method; for fingerprint device, only fingerprint
template will be saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in
accordance with the applicable data protection laws and regulations, including
without limitation, conducting security controls to safeguard personal data, such as,
implementing reasonable administrative and physical security controls, conduct
periodic reviews and assessments of the effectiveness of your security controls.
1

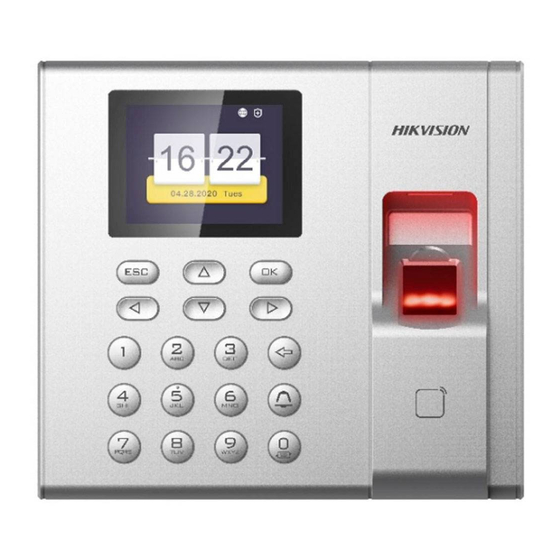

Appearance
USB Interface
Fingerprint Recognition Area
155 mm
Display Screen
ESC OK
1 2 3
Keypad
ABC DEF
4 5 6
GHI JKL MNO
7 8 9 0
PQRS TUV WXYZ
30 mm
Card Swiping Area
2

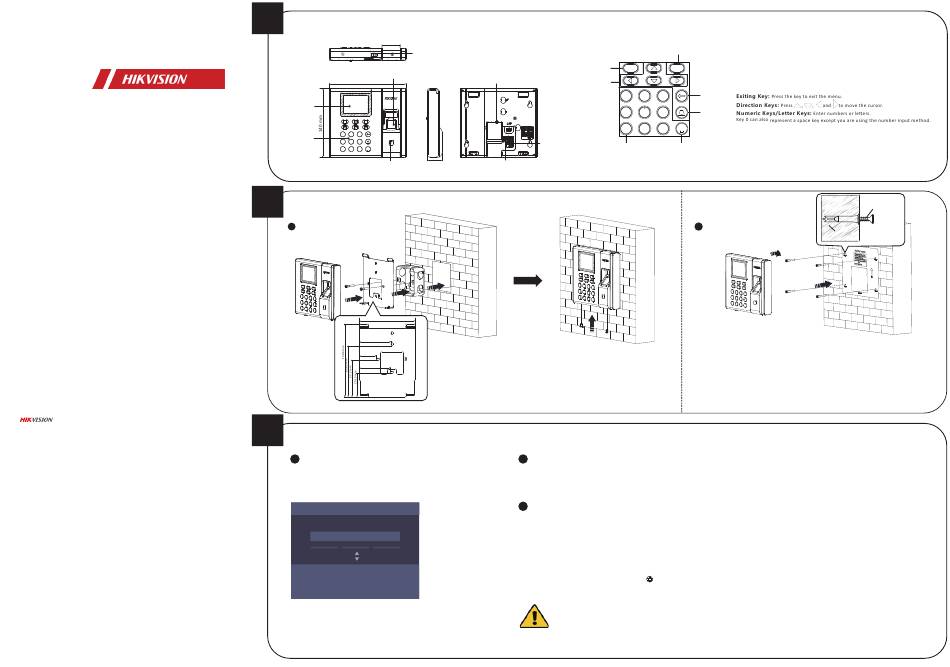

Installation
With Gang Box
Device Mounting Gang Box
Plate
1
2
3
120 mm
68.1 mm
36.5 mm
66.6 mm
3
Activation
Activating via Device
Power on and wire the network cable after installation.
You should activate the device before the first login.
After powering on, the interface will be displayed as follows.
You can create the device password and confirm the password to activate.
Device Activation
Activation Password (8 to 16 Characters)
OK Next Input Method
[Number]
The default values of the terminal are as follows:
• The default IP address: 192.0.0.64
• The default port No.: 8000
• The default user name: admin
Exiting Key
ESC
Network Interface
Direction Keys
1
4
GHI
7
PQRS
Wiring Terminal
Numeric Keys/
Letter Keys
Power Interface
4
Steps:
1. Install the gang box on the wall.
Note: Make sure the gang box screw holes match the mounting plate's. The gang box here
is for reference only. Select an appropriate gang box to install. The gang box is not supplied.
The recommanded gang box dimension is 78 × 78 mm or 100 × 62 mm.
2. Fix the mounting plate on the gang box with two supplied screws (SC-PM4X10-IMP).
3. Route the device cable through the cable hole of the mounting plate and insert the cables
in the gang box.
4. Align the terminal with the mounting plate, and secure the terminal on the mounting plate
with two supplied socket hexagon screws (SC-KM3X10_3-SUS).
Activating via SADP
1. Download SADP Software: Get the SADP software from the supplied disk or the official website. Install and run the software.
2. Activate Device: Check the inactive device from the device list. Create a password in the right side of the interface and confirm the password.
3. Edit Device IP Address: Check the device and manually edit the device IP address, Port No., Subnet Mask, Gateway, etc.
Activating via Client Software
1. Get the client software from the supplied disk or the official website. Install and run the client software.
2. Enter the Device Management page.
3. Click Device tab on the top of the right panel.
4. Click Online Device to show the online device area at the bottom of the page.
The searched online devices are displayed in the list.
5. Check the device status (shown on Security Level column) and select an inactive device.
6. Click Activate to open the Activation dialog.
7. Create a password in the password field, and confirm the password.
8. Click OK to activate the device.
9. Select an activated device in Online Device area, click
device IP address to the same subnet with your computer if you need to add the device to the client.
STRONG PASSWORD RECOMMENDED–
We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters,
numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high
security system, resetting the password monthly or weekly can better protect your product.
OK Key
Keypad Descriptions
OK
OK Key: Press to confirm operations. Hold the key for 3 s to enter the login interface.
Deleting Key: Press the key to delete the entered letter or number.
Doorbell Button: Press the doorbell button and the doorbell rings.
2 3 Deleting
ABC DEF Key
Doorbell
5 6
JKL MNO Button
8 9 0 Editing Key: Press the key to enter the number 0. Hold the key to shift among
TUV WXYZ
numbers/lowercases, numbers/uppercases and symbols.
Editing Key Notes:
1. The pictures here are for reference only. Some models do not support card swiping
function. For details, refer to the actual products.
2. If you enable the attendance status function, the OK key, the direction key, and the
exiting key can be the shortcut key of the attendance status.
Without Gang Box
Steps:
1. Stick a mounting template on the wall at a required height, and drill 4 holes according to the mounting
template on the wall.
Note: The suggested distance between the device lower edge and the ground is 1.3 m.
2. Insert 4 supplied expansion sleeves of the setscrews (4_KA4×22-SUS) in the drilled holes.
3. Fix and fasten the expansion bolts in the expansion sleeves respectively.
Note: Reserve 5.2 mm to 5.5 mm of expansion bolts outside the wall for hanging the device.
4. Align four holes of the device rear panel with the fixed screws and hang the device on the wall.
Note: The additional force shall be equal to three times the weight of the equipment but not less than
50 N. The equipment and its associated mounting means shall remain secure during the test. After the
test, the equipment, including any associated mounting plate, shall not be damaged.
on the Operation column to open the Modify Network Parameter window. Change the
M4 Expansion Bolt
Expansion Sleeve
