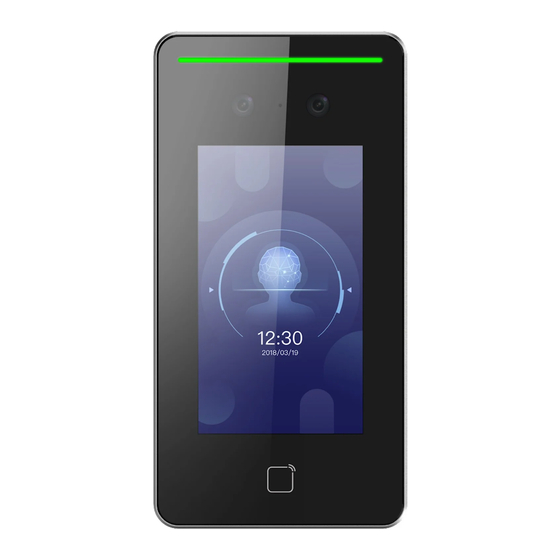

HIKVISION DS-K1T341B Series User Manual

Face recognition terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

DS-K1T341B Series Face Recognition
Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T341B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K1T341B Series

Summary of Contents for HIKVISION DS-K1T341B Series

  • Page 1 DS-K1T341B Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T341B Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T341B Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T341B Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T341B Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T341B Series Face Recognition Terminal User Manual 7. Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types). 8. Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which may result in an explosion.
  • Page 9 DS-K1T341B Series Face Recognition Terminal User Manual • Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
  • Page 10 DS-K1T341B Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K1T341BM DS-K1T341BMW Use only power supplies listed in the user instructions: Model Manufacturer Standard ADS-26FSG-12 12024EPG Shenzhen Honor Electronic Co.,Ltd MSA-C2000IC12.0-24P-DE MOSO Technology Co.,Ltd ADS-26FSG-12 12024EPB Shenzhen Honor Electronic Co.,Ltd...

  • Page 11: Table Of Contents

    DS-K1T341B Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Flush Mounting ........................4 3.3 Surface Mounting ........................
  • Page 12 DS-K1T341B Series Face Recognition Terminal User Manual 6.4 Communication Settings ...................... 30 6.4.1 Set Wired Network Parameters .................. 30 6.4.2 Set Wi-Fi Parameters ....................30 6.4.3 Set RS-485 Parameters ....................32 6.4.4 Set Wiegand Parameters ..................... 33 6.5 User Management ....................... 33 6.5.1 Add Face Picture ......................
  • Page 13 DS-K1T341B Series Face Recognition Terminal User Manual 6.13.1 Call Client Software from Device ................53 6.13.2 Call Center from Device .................... 54 6.13.3 Call Device from Client Software ................54 6.13.4 Call Room from Device ....................55 Chapter 7 Operation via Web Browser ..................56 7.1 Login ............................
  • Page 14 DS-K1T341B Series Face Recognition Terminal User Manual 8.1 Configuration Flow of Client Software ................. 75 8.2 Device Management ......................75 8.2.1 Add Device ........................75 8.2.2 Reset Device Password ....................85 8.3 Group Management ......................86 8.3.1 Add Group ........................86 8.3.2 Import Resources to Group ..................
  • Page 15 DS-K1T341B Series Face Recognition Terminal User Manual 8.4.19 Report Card Loss ....................... 98 8.4.20 Set Card Issuing Parameters ..................99 8.5 Configure Schedule and Template ..................100 8.5.1 Add Holiday ....................... 100 8.5.2 Add Template ......................101 8.6 Set Access Group to Assign Access Authorization to Persons ..........102 8.7 Configure Advanced Functions ..................
  • Page 16 DS-K1T341B Series Face Recognition Terminal User Manual 8.11.1 Configure Attendance Parameters ................136 8.11.2 Add General Timetable ................... 141 8.11.3 Add Shift ........................143 8.11.4 Manage Shift Schedule ................... 146 8.11.5 Manually Correct Check-in/out Record ..............149 8.11.6 Add Leave and Business Trip ................... 150 8.11.7 Calculate Attendance Data ..................

  • Page 17: Chapter 1 Overview

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 18: Chapter 2 Appearance

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Description Card Presenting Area...
  • Page 19 DS-K1T341B Series Face Recognition Terminal User Manual Description Note USB to micro USB cable is included in the package. Loudspeaker IR Light Wiring Terminals Tamper Debugging Port Network Interface...

  • Page 20: Chapter 3 Installation

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment • Avoid backlight, direct sunlight, and indirect sunlight. • For better recognition, there should be light source in or near the installation environment. Note For details about installation environment, see Tips for Installation Environment.
  • Page 21 DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-2 Install Mounting Plate 4. Remove the two screws on the rear panel and remove the sheet to display the wiring terminals. 5. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices' cables.
  • Page 22 DS-K1T341B Series Face Recognition Terminal User Manual Note Make sure the two sheets on each side of the mounting plate have been in the holes at the back of the device. Figure 3-4 Install Device 9. Use the supplied hex key to secure the 2 screws at the bottom of the device.

  • Page 23: Surface Mounting

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-6 Apply Silicone Sealant on the Side 3.3 Surface Mounting Steps Note The additional force shall be equal to three times the weight of the equipment. The equipment ad its associated mounting means shall remain secure during the installation. After the installation, the equipment, including any associated mounting plate, shall not be damaged.
  • Page 24 DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-7 Mounting Template 2. Drill holes on the wall or other surface according to the instructions on the mounting template. 3. Align the holes to the mounting plate and secure the mounting plate on the wall with the...
  • Page 25 DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-8 Install Mounting Plate 4. Remove the two screws on the rear panel and remove the sheet to display the wiring terminals. 5. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices' cables.
  • Page 26 DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-10 Install Device 9. Use the supplied hex key to secure the 2 screws at the bottom of the device. Figure 3-11 Secure Device 10. Apply Silicone sealant among the joints between the device rear panel and the wall (except the...
  • Page 27 DS-K1T341B Series Face Recognition Terminal User Manual Figure 3-12 Apply Silicone Sealant on the Side...

  • Page 28: Chapter 4 Wiring

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 4 Wiring The device supports connecting to the RS-485 terminal, the door lock, the exit button, the alarm output/input devices, the Wiegand card reader, the access controller, and the power supply. You can wire the peripherals according to the descriptions below.

  • Page 29: Wire Normal Device

    DS-K1T341B Series Face Recognition Terminal User Manual Group Function Color Name Description White/Red Lock Wiring (NO) Yellow/Green SENSOR Door Contact Black Ground Yellow/Gray BUTTON Exit Door Wiring Yellow/Black Ground 4.2 Wire Normal Device You can connect the terminal with normal peripherals.

  • Page 30: Wire Secure Door Control Unit

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 4-2 Cable Diagram 4.3 Wire Secure Door Control Unit You can connect the terminal with the secure door control unit. The wiring diagram is as follows. Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately.
  • Page 31 DS-K1T341B Series Face Recognition Terminal User Manual Type 1 Note The fire system controls the power supply of the access control system. Figure 4-4 Wire Device Figure 4-5 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series.

  • Page 32: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 4-6 Wiring Device Figure 4-7 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 33 DS-K1T341B Series Face Recognition Terminal User Manual Figure 4-8 Device Wiring Figure 4-9 Wiring Diagram...

  • Page 34: Chapter 5 Activation

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 35 DS-K1T341B Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 36: Activate Via Web Browser

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 37: Activate Device Via Client Software

    DS-K1T341B Series Face Recognition Terminal User Manual letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 38 DS-K1T341B Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 39: Chapter 6 Basic Operation

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 6 Basic Operation 6.1 Set Application Mode After activating the device, you should select an application mode for better device application. Steps 1. On the Welcome page, select Indoor or Others from the drop-down list.

  • Page 40: Set Administrator

    DS-K1T341B Series Face Recognition Terminal User Manual Note • You can also change the settings in System Settings. • If you install the device indoors near the window or the face recognition function is not working well, select Others. • If you do not configure the application mode and tap Next, the system will select Indoor by default.
  • Page 41 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-2 Add Administrator Page 2. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click to capture and click to confirm.

  • Page 42: Login

    DS-K1T341B Series Face Recognition Terminal User Manual Device is armed/not armed. The device wired network is connected/not connected/connecting failed. The device' Wi-Fi is enabled and connected/not connected. Hik-Connect is enabled/disabled. Shortcut Keys Description Note You can configure those shortcut keys displayed on the screen. For details, see Basic Settings .
  • Page 43 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-3 Admin Login 2. Authenticate the administrator's face or card to enter the home page.

  • Page 44: Login By Activation Password

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-4 Home Page Note The device will be locked for 30 minutes after 5 failed attempts. 3. Optional: Tap and you can enter the device activation password for login. 4. Optional: Tap and you can exit the admin login page.
  • Page 45 DS-K1T341B Series Face Recognition Terminal User Manual Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page. 2. Tap the Password field and enter the device activation password.

  • Page 46: Communication Settings

    DS-K1T341B Series Face Recognition Terminal User Manual 6.4 Communication Settings You can set the network parameters, the Wi-Fi parameter, the RS-485 parameters, the Wiegand parameters, and enable 3G/4G on the communication settings page. 6.4.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, and the gateway.
  • Page 47 DS-K1T341B Series Face Recognition Terminal User Manual Steps Note The function should be supported by the device. 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page. 2. On the Communication Settings page, tap. Figure 6-7 Wi-Fi Settings 3.

  • Page 48: Set Rs-485 Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Note Only digits, letters, and special characters are allowed in the password. 5. Set the Wi-Fi's parameters. - By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the gateway automatically.

  • Page 49: Set Wiegand Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual 6.4.4 Set Wiegand Parameters You can set the Wiegand transmission direction. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page. 2. On the Communication Settings page, tap Wiegand to enter the Wiegand tab.
  • Page 50 DS-K1T341B Series Face Recognition Terminal User Manual Steps Note Up to 1000 face pictures can be added. 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and log in the backend.
  • Page 51 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-10 Add Face Picture 6. Look at the camera. Note • Make sure your face picture is in the face picture outline when adding the face picture. • Make sure the captured face picture is in good quality and is accurate.

  • Page 52: Add Card

    DS-K1T341B Series Face Recognition Terminal User Manual Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page.

  • Page 53: Add Password

    DS-K1T341B Series Face Recognition Terminal User Manual Note • The card No. cannot be empty. • Up to 20 characters are allowed in the card No. • The card No. cannot be duplicated. 8. Configure the card type. 9. Set the user role.

  • Page 54: Set Authentication Mode

    DS-K1T341B Series Face Recognition Terminal User Manual 6. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user.

  • Page 55: Data Management

    DS-K1T341B Series Face Recognition Terminal User Manual Note The employee ID cannot be edited. 6.6 Data Management You can delete data, import data, and export data. 6.6.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted.

  • Page 56: Export Data

    DS-K1T341B Series Face Recognition Terminal User Manual 6.6.3 Export Data Steps 1. Plug a USB flash drive in the device. 2. On the Home page, tap Data → Export Data . 3. Tap Event Data, User Data, or Face Data.

  • Page 57: Authenticate Via Multiple Credential

    DS-K1T341B Series Face Recognition Terminal User Manual Put the QR code in front of the device camera to authenticate via QR code. Note Authentication via QR code should be supported by the device. If authentication completed, a prompt "Authenticated" will pop up.
  • Page 58 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-11 Basic Settings Page Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function. Note You can select call type from Call Room, Call Center, and Call Specified Room No.

  • Page 59: Set Biometric Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Note You can set the voice volume between 0 and 10. Time Settings Set the time zone, the device time and the DST. Community No. Set the device installed community No. Building No.
  • Page 60 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-12 Biometric Parameters Page Table 6-1 Face Picture Parameters Parameter Description Select Application You can select either others or indoor according to actual environment. Mode Face Liveness Level You can set the face anti-​ s poofing matching security level when performing live face authentication.

  • Page 61: Set Access Control Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Parameter Description Face Recognition Set the valid distance between the user and the camera when Distance authenticating. Face Recognition The time interval between two continuous face recognitions when Interval authenticating. Note You can input the number from 1 to 10.
  • Page 62 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-13 Access Control Parameters The available parameters descriptions are as follows: Table 6-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode) can also customize the authentication mode.

  • Page 63: Time And Attendance Status Settings

    DS-K1T341B Series Face Recognition Terminal User Manual Parameter Description Door Contact You can select "Open (Remain Open)" or "Close (Remian Closed)" according to your actual needs. By default, it is Close (Remian Closed). Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.

  • Page 64: Set Manual Attendance Via Device

    DS-K1T341B Series Face Recognition Terminal User Manual 6.11.2 Set Manual Attendance via Device Set the attendance mode as manual, and you can select a status manually when you take attendance. Before You Start Add at least one user, and set the user's authentication mode. For details, see User Management.
  • Page 65 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-16 Auto Attendance Mode 3. Select an attendance status and set its schedule. 1) Select Check In, Check Out, Break Out, Break In, Overtime In, or Overtime Out as the attendance status.

  • Page 66: Set Manual And Auto Attendance Via Device

    DS-K1T341B Series Face Recognition Terminal User Manual Result When you authenticate on the initial page, the authentication will be marked as the configured attendance status according to the configured schedule. Example If set the Break Out Schedule as Monday 11:00, and Break In Schedule as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break.
  • Page 67 DS-K1T341B Series Face Recognition Terminal User Manual Figure 6-17 Manual and Auto Mode 3. Select an attendance status and set its schedule. 1) Select Check In, Check Out, Break Out, Break In, Overtime In, or Overtime Out as the attendance status.

  • Page 68: System Maintenance

    DS-K1T341B Series Face Recognition Terminal User Manual Result On the initial page and authenticate. If you do not select a status, the authentication will be marked as the configured attendance status according to the schedule. If you tap Select Status and select a status to take attendance, the authentication will be marked as the selected attendance status.

  • Page 69: Video Intercom

    DS-K1T341B Series Face Recognition Terminal User Manual Note The page may vary according to different device models. Refers to the actual page for details. Capacity You can view the number of, user, face picture, card, and event. Device Upgrade Plug the USB flash drive in the device USB interface. Tap Upgrade, and the device will read the digicap.dav file in the USB flash drive to start upgrading.

  • Page 70: Call Center From Device

    DS-K1T341B Series Face Recognition Terminal User Manual Note If the device is added to multiple client softwares and when the device is calling the client software, only the first client software added the device will pop up the call receiving window.

  • Page 71: Call Room From Device

    DS-K1T341B Series Face Recognition Terminal User Manual 5. Enter the Live View page and double-click the added device to start live view. Note For details about operations in the Live View page, see Live View in the user manual of the client software.

  • Page 72: Chapter 7 Operation Via Web Browser

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 7 Operation via Web Browser 7.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .

  • Page 73: Person Management

    DS-K1T341B Series Face Recognition Terminal User Manual Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view. Reserved function. You can zoom in the live view image.

  • Page 74: Search Event

    DS-K1T341B Series Face Recognition Terminal User Manual Click Save to save the settings. Add Face Picture Click User → Add to enter the Add Person page. Click + on the right to upload a face picture from the local PC.

  • Page 75: Configuration

    DS-K1T341B Series Face Recognition Terminal User Manual Enter the search conditions, including the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel. 7.5 Configuration 7.5.1 Set Local Parameters...

  • Page 76: Set Dst

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-3 Time Settings Click Save to save the settings after the configuration. Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval.
  • Page 77 DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-5 Upgrade and Maintenance Page Click Reboot to start reboot the device. Restore Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Restore All All parameters will be restored to the factory settings. You should activate the device before usage.

  • Page 78: Change Administrator's Password

    DS-K1T341B Series Face Recognition Terminal User Manual Note Do not power off during the upgrading. 7.5.6 Change Administrator's Password Steps 1. Click Configuration → User Management . 2. Click 3. Enter the old password and create a new password. 4. Confirm the new password.
  • Page 79 DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-6 TCP/IP Settings Page Click Save to save the settings. NIC Type Select a NIC type from the drop-down list. By default, it is Auto. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, MTU, and the device port.

  • Page 80: Set Video And Audio Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Set Wi-Fi Parameters Set the Wi-Fi parameters for device wireless connection. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Basic Settings → Wi-Fi . Figure 7-7 Wi-Fi Settings Page 2.

  • Page 81: Customize Audio Content

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-8 Video Settings Page Set the stream type, the video type, the bitrate type, the frame rate, and the Max. bitrate. Click Save to save the settings after the configuration. Set Audio Parameters Click Configuration →...
  • Page 82 DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-9 Customize Audio Content 2. Enable the function. 3. Set the time duration when authentication succeeded. 1) Click Add. 2) Set the time duration and the language. Note If authentication is succeeded in the configured time duration, the device will broadcast the configured content.

  • Page 83: Set Video Intercom Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual 7.5.10 Set Video Intercom Parameters The device can be used as a door station or outer door station. You should set the device No. before usage. Set Device No. Click Configuration → Video Intercom → Device No. .

  • Page 84: Set Access Control And Authentication Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Set Linked Network Settings Click Configuration → Video Intercom → Linked Network Settings . You can set the device type, the SIP server's IP address, and the main station's IP address. After setting the parameters, you can communicate among the access control device, door station, indoor station, main station, and the platform.

  • Page 85: Set Rs-485 Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Door Contact You can select Remain Open or Remain Closed according to your actual needs. By default, it is Remain Closed. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.

  • Page 86: Set Image Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Steps Note Some device models do not support this function. Refer to the actual products when configuration. 1. Click Configuration → Access Control → Wiegand Settings . Figure 7-13 Wiegand Page 2. Check Wiegand to enable the Wiegand function.

  • Page 87: Set Supplement Light Brightness

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 7-14 Image Settings Page 2. Configure the parameters to adjust the image. Video Standard Set the video frame rate when performing live view remotely. After changing the standard, you should reboot the device to take effect.

  • Page 88: Set Biometric Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual Steps 1. Click Configuration → Image . Figure 7-15 Supplement Light Settings Page 2. Click Supplement Light Parameters in the Basic Parameter panel. 3. Select a supplement light type and mode from the drop-down list. If you select the mode as ON, you should set the brightness.
  • Page 89 DS-K1T341B Series Face Recognition Terminal User Manual Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not. Note Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.

  • Page 90: Set Notice Publication

    DS-K1T341B Series Face Recognition Terminal User Manual Set Recognition Area Click Configuration → Smart → Area Configuration . Drag the yellow frame in the live video to adjust the recognition area. Only the face within the area can be recognized by the system.

  • Page 91: Chapter 8 Client Software Configuration

    DS-K1T341B Series Face Recognition Terminal User Manual Chapter 8 Client Software Configuration 8.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 8-1 Flow Diagram of Configuration on Client Software 8.2 Device Management You can manage devices on the client, including adding, editing, and deleting the devices.
  • Page 92 DS-K1T341B Series Face Recognition Terminal User Manual Add Online Device The active online devices in the same local subnet with the client software will be displayed on the Online Device area. Note • You can click Refresh per 60s to refresh the information of the online devices.
  • Page 93 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-3 Add Single Online Device...
  • Page 94 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-4 Add Multiple Online Devices 4. Enter the required information. Name Enter a descriptive name for the device. IP Address Enter the device's IP address. The IP address of the device is obtained automatically in this adding mode.
  • Page 95 DS-K1T341B Series Face Recognition Terminal User Manual Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. 5. Check Synchronize Time to synchronize the device time with the PC running the client after adding the device to the client.
  • Page 96 DS-K1T341B Series Face Recognition Terminal User Manual at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.
  • Page 97 DS-K1T341B Series Face Recognition Terminal User Manual Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 98 DS-K1T341B Series Face Recognition Terminal User Manual 3. Click Add to open the Add window. 4. Select IP Segment as the adding mode. 5. Enter the required information. Start IP Enter a start IP address. End IP Enter an end IP address in the same network segment with the start IP.
  • Page 99 DS-K1T341B Series Face Recognition Terminal User Manual Before You Start Make sure the devices have connected to the network properly. Steps 1. Enter Device Management module. The added devices are displayed on the right panel. 2. Click Add to open the Add window.
  • Page 100 DS-K1T341B Series Face Recognition Terminal User Manual Import Devices in a Batch You can add multiple devices to the client in a batch by entering the device parameters in a pre- defined CSV file. Steps 1. Enter the Device Management module.

  • Page 101: Reset Device Password

    DS-K1T341B Series Face Recognition Terminal User Manual 7. Click Add to import the devices. 8. Perform the following operations after adding the devices. Remote Click on Operation column to set remote configuration of the Configuration corresponding device. Note • For some models of devices, you can open its web window. To open the original remote configuration window, press Ctrl and click •...

  • Page 102: Group Management

    DS-K1T341B Series Face Recognition Terminal User Manual 8.3 Group Management The client provides groups to manage the added resources in different groups. You can group the resources into different groups according to the resources' locations. Example For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management.

  • Page 103: Remove Resources From Group

    DS-K1T341B Series Face Recognition Terminal User Manual Before You Start Import the resources to group. Refer to Import Resources to Group . Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page.

  • Page 104: Configure Basic Information

    DS-K1T341B Series Face Recognition Terminal User Manual Note Up to 10 levels of organizations can be added. 4. Optional: Perform the following operation(s). Edit Organization Hover the mouse on an added organization and click to edit its name. Delete Hover the mouse on an added organization and click to delete it.

  • Page 105: Issue A Card To One Person

    DS-K1T341B Series Face Recognition Terminal User Manual 8.4.3 Issue a Card to One Person When adding person, you can issue a card with a unique card number to the person as a credential. After issued, the person can access the doors which he/she is authorized to access by swiping the card on the card reader.

  • Page 106: Upload A Face Photo From Local Pc

    DS-K1T341B Series Face Recognition Terminal User Manual The card will be issued to the person. 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 107: Collect Face Via Access Control Device

    DS-K1T341B Series Face Recognition Terminal User Manual Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information . 3. Click Add Face in the Basic Information panel. 4. Select Take Photo.

  • Page 108: Configure Access Control Information

    DS-K1T341B Series Face Recognition Terminal User Manual 8.4.7 Configure Access Control Information When adding a person, you can set her/his access control information, such as binding an access control group with the person, configuring PIN code, setting the person as a visitor, a blocklist person, or a super user, etc.

  • Page 109: Customize Person Information

    DS-K1T341B Series Face Recognition Terminal User Manual For details about setting the door's open duration, refer to Configure Parameters for Door . Add to Blocklist Add the person to the blocklist and when the person tries to access doors/floors, an event will be triggered and sent to the client to notify the security personnel.

  • Page 110: Configure Resident Information

    DS-K1T341B Series Face Recognition Terminal User Manual Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information . 2) In the Custom Information panel, enter the person information. 3) Click Add to add the person and close the Add Person window, or click Add and New to add the person and continue to add other persons.

  • Page 111: Import And Export Person Identify Information

    DS-K1T341B Series Face Recognition Terminal User Manual Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information . 3. In the Additional Information panel, enter the additional information of the person, including person's ID type, ID No., job title, etc., according to actual needs.

  • Page 112: Import Person Pictures

    DS-K1T341B Series Face Recognition Terminal User Manual 8.4.13 Import Person Pictures After importing face pictures for the added persons to the client, the persons in the pictures can be identified by an added face recognition terminal. You can either import person pictures one by one, or import multiple pictures at a time according to your need.

  • Page 113: Export Person Pictures

    DS-K1T341B Series Face Recognition Terminal User Manual 8.4.15 Export Person Pictures You can export face picture file of the added persons and save in your PC. Before You Start Make sure you have added persons and their face pictures to an organization.

  • Page 114: Move Persons To Another Organization

    DS-K1T341B Series Face Recognition Terminal User Manual 8.4.17 Move Persons to Another Organization You can move the added persons to another organization if you need. Before You Start • Make sure you have added at least two organizations. • Make sure you have imported person information.

  • Page 115: Set Card Issuing Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual 2. Select the person you want to report card loss for and click Edit to open the Edit Person window. 3. In the Credential → Card panel, click on the added card to set this card as lost card.

  • Page 116: Configure Schedule And Template

    DS-K1T341B Series Face Recognition Terminal User Manual Card No. Type Select the type of the card number according to actual needs. M1 Card Encryption This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180-D8E. If the card is M1 card, and if you need to enable the M1 Card Encryption function, you should enable this function and select the sector of the card to encrypt.

  • Page 117: Add Template

    DS-K1T341B Series Face Recognition Terminal User Manual Note Up to 8 time durations can be set to one holiday period. 3) Optional: Perform the following operations to edit the time durations. • Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to •...

  • Page 118: Set Access Group To Assign Access Authorization To Persons

    DS-K1T341B Series Face Recognition Terminal User Manual Note Up to 8 time duration(s) can be set for each day in the week schedule. 3) Optional: Perform the following operations to edit the time durations. • Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to •...
  • Page 119 DS-K1T341B Series Face Recognition Terminal User Manual 2. Click Add to open the Add window. 3. In the Name text field, create a name for the access group as you want. 4. Select a template for the access group. Note You should configure the template before access group settings.

  • Page 120: Configure Advanced Functions

    DS-K1T341B Series Face Recognition Terminal User Manual 4) View the applying status in the Status column or click Applying Status to view all the applied access group(s). Note You can check Display Failure Only to filter the applying results. The selected persons in the applied access groups will have the authorization to enter/exit the selected doors/door stations with their linked card(s) or fingerprints.

  • Page 121: Configure Device Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual 8.7.1 Configure Device Parameters After adding the access control device, you can configure the parameters of access control device, access control points. Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc.
  • Page 122 DS-K1T341B Series Face Recognition Terminal User Manual If enable the function, the device can recognize the NFC card. You can present NFC card on the device. Enable M1 Card If enable the function, the device can recognize the M1 card. You can present M1 card on the device.
  • Page 123 DS-K1T341B Series Face Recognition Terminal User Manual You can set the exit button as remaining closed or remaining open. Usually, it is remaining open. Door Locked Time After swiping the normal card and relay action, the timer for locking the door starts working.
  • Page 124 DS-K1T341B Series Face Recognition Terminal User Manual Note • The displayed parameters may vary for different access control devices. There are part of parameters listed as follows. Refer to the user manual of the device for more details. • Some of the following parameters are not listed in the Basic Information page, click Advanced to edit the parameters.

  • Page 125: Configure Remaining Open/Closed

    DS-K1T341B Series Face Recognition Terminal User Manual The time interval between two continuous face recognitions when authenticating. By default, it is 2s. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 126 DS-K1T341B Series Face Recognition Terminal User Manual Note Up to 8 time durations can be set to each day in the week schedule. 3) Optional: Perform the following operations to edit the time durations. • Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to •...

  • Page 127: Configure Multi-Factor Authentication

    DS-K1T341B Series Face Recognition Terminal User Manual 8.7.3 Configure Multi-Factor Authentication You can manage the persons by group and set the authentication for multiple persons of one access control point (door). Before You Start Set access group and apply the access group to the access control device. For details, refer to Set Access Group to Assign Access Authorization to Persons .
  • Page 128 DS-K1T341B Series Face Recognition Terminal User Manual Authentication by the access control device and by the client. When the person swipes the card on the device, a window will pop up. You can unlock the door via the client. Figure 8-9 Remotely Open Door...

  • Page 129: Configure Custom Wiegand Rule

    DS-K1T341B Series Face Recognition Terminal User Manual 8.7.4 Configure Custom Wiegand Rule Based on the knowledge of uploading rule for the third party Wiegand, you can set multiple customized Wiegand rules to communicate between the device and the third party card readers.

  • Page 130: Configure Card Reader Authentication Mode And Schedule

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-10 Set Output Transformation Rule 2) Select rules on the left list. The selected rules will be added to the right list. 3) Optional: Drag the rules to change the rule order.
  • Page 131 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-11 Select Card Reader Authentication Mode Note PIN refers to the PIN code set to open the door. Refer to Configure Access Control Information . 2) Check the modes in the Available Mode list and they will be added to the selected modes list.

  • Page 132: Configure First Person In

    DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-12 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers.

  • Page 133: Configure Anti-Passback

    DS-K1T341B Series Face Recognition Terminal User Manual Note The remain open duration should be between 0 and 1440 minutes. By default, the remain open duration is 10 minutes. Disable Remaining Open after First Person Disable the function of first person in, namely normal authentication.

  • Page 134: Configure Device Parameters

    DS-K1T341B Series Face Recognition Terminal User Manual 6. Click OK in the dialog to save the selections. 7. Click Save at the upper-right corner of Anti-Passback page to save the settings and take effect. Note Super credentials, such as super card, super password, super fingerprint, and so on, have the privilege of not following the anti-passback rules.
  • Page 135 DS-K1T341B Series Face Recognition Terminal User Manual Set Network Parameters After adding the access control device, you can set the device log uploading mode, and create EHome account via wired network. Set Log Uploading Mode You can set the mode for the device to upload logs via ISUP protocol.
  • Page 136 DS-K1T341B Series Face Recognition Terminal User Manual 5. Select the Address Type as IP Address or Domain Name. 6. Enter IP address or domain name according to the address type. 7. Enter the port number for the protocol. Note The port number of the wireless network and wired network should be consistent with the port number of EHome.
  • Page 137 DS-K1T341B Series Face Recognition Terminal User Manual 1. Enter the Access Control module. 2. On the navigation bar on the left, enter Advanced Function → More Parameters → Capture . 3. Select an access control device in the device list and select Linked Capture.
  • Page 138 DS-K1T341B Series Face Recognition Terminal User Manual 4. Set the parameters. Note These parameters displayed vary according to different device models. Algorithm Select Deep Learning as the face picture database. Save Authenticating Face Picture If enabled, the captured face picture when authenticating will be saved on the device.
  • Page 139 DS-K1T341B Series Face Recognition Terminal User Manual Set RS-485 Parameters You can set the access control device's RS-485 parameters including the baud rate, data bit, the stop bit, parity type, flow control type, communication mode, work mode, and connection mode.

  • Page 140: Configure Linkage Actions For Access Control

    DS-K1T341B Series Face Recognition Terminal User Manual Note If you set Communication Direction as Sending, you are required to set the Wiegand Mode as Wiegand 26 or Wiegand 34. 6. Check Enable Wiegand to enable the Wiegand function. 7. Click Save.

  • Page 141: Configure Device Actions For Access Event

    DS-K1T341B Series Face Recognition Terminal User Manual 1) Select the event(s) and click Edit Linkage to set the client actions when the events triggered. Audible Warning The client software gives an audible warning when alarm is triggered. You can select the alarm sound for audible warning.

  • Page 142: Configure Device Actions For Card Swiping

    DS-K1T341B Series Face Recognition Terminal User Manual The door status of open, close, remain open, and remain close will be triggered. Note The target door and the source door cannot be the same one. 7. Click Save. 8. Optional: After adding the device linkage, you can do one or more of the following:...

  • Page 143: Configure Device Actions For Person Id

    DS-K1T341B Series Face Recognition Terminal User Manual Edit Linkage Select the configured linkage settings in the device list and you can edit Settings its event source parameters, including event source and linkage target. 8.8.4 Configure Device Actions for Person ID You can set the access control device's linkage actions for the specified person ID.

  • Page 144: Door Control

    DS-K1T341B Series Face Recognition Terminal User Manual Edit Linkage Select the configured linkage settings in the device list and you can edit Settings its event source parameters, including event source and linkage target. 8.9 Door Control In Monitoring module, you can view the real-time status of the doors managed by the added access control device.

  • Page 145: Check Real-Time Access Records

    DS-K1T341B Series Face Recognition Terminal User Manual Remain Closed The door will be closed and locked. No person can access the door even if he/she has the authorized credentials, except the super users. Capture Capture a picture manually. Note The Capture button is available when the device supports capture function. The picture is saved in the PC running the client.

  • Page 146: Event Center

    DS-K1T341B Series Face Recognition Terminal User Manual 8.10 Event Center In the Event Center, you can view the real-time events, search the historical events and view the pop-up alarm information. Before the client can receive the event information from the device, you need to arm the device first.

  • Page 147: View Real-Time Events

    DS-K1T341B Series Face Recognition Terminal User Manual 8.10.2 View Real-Time Events In the Real-time Event module of the event center page, you can view the real-time event information, including event source, event time, priority, event key words, etc. Before You Start Enable receiving events from devices before the client can receive event information from the device, see Enable Receiving Events from Devices for details.
  • Page 148 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-15 Customize Event Related Items to be Displayed 4. View the event information details. 1) Select an event in the event list. 2) Click Expand in the right-lower corner of the page.

  • Page 149: Search Historical Events

    DS-K1T341B Series Face Recognition Terminal User Manual Note You should configure the email parameters first, see Set Email Parameters in the user manual of client software for details. 8.10.3 Search Historical Events In the Event Search module of the event center page, you can search the historical events via time, device type, and other conditions according to the specified device type, and then process the events.
  • Page 150 DS-K1T341B Series Face Recognition Terminal User Manual All the device types, and you can set the following filter conditions: group, priority, and status. Video Intercom For the events of video intercom, you need to select searching scope: All Record and Only Unlocking.
  • Page 151 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-17 Customize Event Related Items to be Displayed 5. Optional: Handle the event(s). - Handle single event: Select one event that need to be processed, and then click Handle in the event information details page, and enter the processing suggestion.

  • Page 152: Time And Attendance

    DS-K1T341B Series Face Recognition Terminal User Manual 8.11 Time and Attendance The Time and Attendance module provides multiple functionalities to track and monitor when employees start and stop work, and full control of employees working hours such as late arrivals, early departures, time taken on breaks and absenteeism.
  • Page 153 DS-K1T341B Series Face Recognition Terminal User Manual When you work for a certain period after end-work time on workday, you will reach different overtime level: overtime level 1, overtime level 2 and overtime level 3. You can set different work hour rate for three overtime levels, respectively.
  • Page 154 DS-K1T341B Series Face Recognition Terminal User Manual Add Regular Holiday You can configure a holiday which will take effect annually on regular days during the effective period, such as New Year's Day, Independence Day, Christmas Day, etc. Steps 1. Enter the Time & Attendance module.
  • Page 155 DS-K1T341B Series Face Recognition Terminal User Manual The added holiday will display in the holiday list and calendar. If the date is selected as different holidays, it will be recorded as the first-added holiday. 11. Optional: After adding the holiday, perform one of the following operations.
  • Page 156 DS-K1T341B Series Face Recognition Terminal User Manual Note If you select MySql, you should import the configuration file (libmysql.dll) from local PC. 5. Set the other required parameters of the third-party database, including server IP address, database name, user name and password.

  • Page 157: Add General Timetable

    DS-K1T341B Series Face Recognition Terminal User Manual The fixed break duration will be excluded from work hours. Must Check The break duration will be calculated and excluded from work hours according to actual check-in and check-out time. Note If you select Must Check as calculation method, you need to set attendance status for late or early returning from break.
  • Page 158 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-18 Add Timetable 3. Create a name for the timetable. Note You can click the color icon beside the name to customize the color for the valid timetable on the time bar in the Configuration Result area.

  • Page 159: Add Shift

    DS-K1T341B Series Face Recognition Terminal User Manual Note This function should be supported by the device. 7. Set the related attendance time parameters as the following: Start/End-Work Time Set the start-work time and end-work-time. Valid Check-in/out Time On the time bar, adjust the yellow bar to set the timetable during which the check-in or check-out is valid.
  • Page 160 DS-K1T341B Series Face Recognition Terminal User Manual Before You Start Add a timetable first. See Add General Timetable for details. Steps 1. Click Time & Attendance → Shift to enter shift settings page. 2. Click Add to enter Add Shift page.
  • Page 161 DS-K1T341B Series Face Recognition Terminal User Manual Figure 8-20 Add Multiple Timetables 6. Click Save. The added shift lists on the left panel of the page. At most 64 shifts can be added. 7. Optional: Assign the shift to organization or person for a quick shift schedule.

  • Page 162: Manage Shift Schedule

    DS-K1T341B Series Face Recognition Terminal User Manual 8.11.4 Manage Shift Schedule Shift work is an employment practice designed to make use of all 24 hours of the clock each day of the week. The practice typically sees the day divided into shifts, set periods of time during which different shifts perform their duties.
  • Page 163 DS-K1T341B Series Face Recognition Terminal User Manual Persons in this schedule do not need to check-in when they come to work. Check-out Not Required Persons in this schedule do not need to check-out when they end work. Scheduled on Holidays On the holidays, this schedule is still effective and the persons needs to go to work according to the schedule.
  • Page 164 DS-K1T341B Series Face Recognition Terminal User Manual Check-in Not Required Persons in this schedule do not need to check-in when they come to work. Check-out Not Required Persons in this schedule do not need to check-out when they end work.

  • Page 165: Manually Correct Check-In/Out Record

    DS-K1T341B Series Face Recognition Terminal User Manual effective in any of the three timetables. If the person checks in at 07:50, it will apply the nearest timetable 08:00 to 15:00 to the person's attendance. Rule Set other rule for the schedule, such as Check-in Not Required, andCheck-out Not Required.

  • Page 166: Add Leave And Business Trip

    DS-K1T341B Series Face Recognition Terminal User Manual Note You can click to add multiple check in/out items. At most 8 check-in/out items can be supported. 6. Optional: Enter the remark information as desired. 7. Click Save. 8. Optional: After adding the check-in/out correction, perform one of the following operations.

  • Page 167: Calculate Attendance Data

    DS-K1T341B Series Face Recognition Terminal User Manual 6. Set the time for leave. 7. Optional: Enter the remark information as desired. 8. Click Save. 9. Optional: After adding the leave and business trip, perform one of the following operations. View...
  • Page 168 DS-K1T341B Series Face Recognition Terminal User Manual The client will calculate the attendance data of the previous day from the time you have configured. Manually Calculate Attendance Data You can manually calculate attendance data by setting conditions including attendance time, department, attendance status, etc.

  • Page 169: Attendance Statistics

    DS-K1T341B Series Face Recognition Terminal User Manual 8.11.8 Attendance Statistics You can check the original attendance record, generate and export the attendance report based on the calculated attendance data. Get an Overview of Employees' Attendance Data You can search and view the employee's attendance records on the client, including attendance time, attendance status, check point, etc.
  • Page 170 DS-K1T341B Series Face Recognition Terminal User Manual Generate Instant Report It supports to generate the a series of attendance reports manually to view the employees' attendance results. Before You Start Calculate the attendance data. Note You can calculate the attendance data manually, or set the schedule so that the client can calculate the data automatically every day.
  • Page 171 DS-K1T341B Series Face Recognition Terminal User Manual Person Select the added person(s) whose attendance records will be generated for the report. 5. Optional: Set the schedule to send the report to the email address(es) automatically. 1) Check the Auto-Sending Email to enable this function.

  • Page 172: Appendix A. Tips For Scanning Fingerprint

    DS-K1T341B Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 173 DS-K1T341B Series Face Recognition Terminal User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 174: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T341B Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression • Keep your expression naturally when collecting or comparing face pictures, just like the expression in the picture below.
  • Page 175 DS-K1T341B Series Face Recognition Terminal User Manual...

  • Page 176: Appendix C. Tips For Installation Environment

    DS-K1T341B Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 177: Appendix D. Dimension

    DS-K1T341B Series Face Recognition Terminal User Manual Appendix D. Dimension...

  • Page 178: Appendix E. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure E-2 Device Command...
  • Page 179 UD19111B-A...

This manual is also suitable for:

Ds-k1t341bmDs-k1t341bmw

Table of Contents
