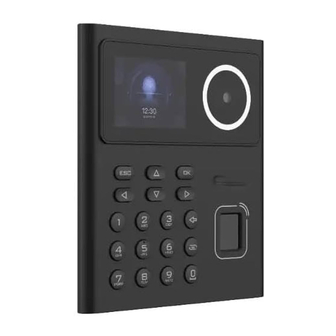

DS-K1T320 Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T320EFWX-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K1T320EFWX-B

Summary of Contents for HIKVISION DS-K1T320EFWX-B

  • Page 1 DS-K1T320 Series Face Recognition Terminal User Manual...

  • Page 2: Legal Information

    ● Products described in this Document, which may include licenses obtained from third parties. Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part ● of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.

  • Page 3: Data Protection

    LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY ●...

  • Page 4: Symbol Conventions

    DS-K1T320 Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...

  • Page 5: Regulatory Information

    DS-K1T320 Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T320 Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 7: Safety Instruction

    DS-K1T320 Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 8 DS-K1T320 Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage). Do not place the device in extremely hot (refer to the specification of the device for the detailed ●...

  • Page 9: Available Models

    DS-K1T320 Series Face Recognition Terminal User Manual Available Models Product Name Model Wireless Face Recognition Terminal DS-K1T320MFWX 13.56 MHz Card Presenting Frequency, Wi-Fi, 2.4G DS-K1T320MFX 13.56 MHz Card Presenting Frequency DS-K1T320MWX 13.56 MHz Card Presenting Frequency, Wi-Fi, 2.4G DS-K1T320MX 13.56 MHz Card Presenting Frequency DS-K1T320EFWX 125 KHz Card Presenting...

  • Page 10: Table Of Contents

    DS-K1T320 Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 5 3.1 Installation Environment ......................5 3.2 Install with Gang Box ......................5 3.3 Surface Mounting ........................
  • Page 11 DS-K1T320 Series Face Recognition Terminal User Manual 7.1 Login ............................ 25 7.1.1 Login by Activation Password ..................25 7.1.2 Login by Administrator ....................25 7.1.3 Forgot Password ......................26 7.2 Communication Settings ...................... 26 7.2.1 Set Wired Network Parameters .................. 27 7.2.2 Set Wi-Fi Parameters ....................
  • Page 12 DS-K1T320 Series Face Recognition Terminal User Manual 7.5.4 Set Manual and Auto Attendance via Device .............. 46 7.6 Attendance Report ....................... 47 7.7 Data Management ....................... 47 7.7.1 Delete Data ......................... 47 7.7.2 Import Data ......................... 47 7.7.3 Export Data ......................... 48 7.8 Identity Authentication ......................
  • Page 13 DS-K1T320 Series Face Recognition Terminal User Manual 8.4.9 Face Parameters Settings .................... 69 8.4.10 Set Time and Attendance via Mobile Web Browser ..........70 8.4.11 Set Privacy Parameters ....................74 8.4.12 Password Mode ......................74 8.4.13 Upgrade and Maintenance ..................75 8.4.14 View Online Document .....................
  • Page 14 DS-K1T320 Series Face Recognition Terminal User Manual 10.6.9 Set Video Parameters ....................89 10.6.10 Set Image Parameters ..................... 90 10.6.11 Access Control Settings ................... 90 10.6.12 Card Settings ......................93 10.6.13 Time and Attendance Settings ................94 10.6.14 Local Time and Attendance Settings ............... 97 10.6.15 Set Privacy Parameters ..................

  • Page 15: Chapter 1 Overview

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 16: Chapter 2 Appearance

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 2 Appearance The appearance of the device with fingerprint is as follows: Figure 2-1 Appearance（With Fingerprint) The appearance of the device without fingerprint is as follows:...
  • Page 17 DS-K1T320 Series Face Recognition Terminal User Manual Figure 2-2 Appearance（Without Fingerprint) Table 2-1 Appearance Description Name Screen Keypad Fingerprint Module Note Only devices that support the fingerprint function contain a fingerprint module. Card Swiping Area Camera Supplement Light USB Interface Network Interface Tamper...
  • Page 18 DS-K1T320 Series Face Recognition Terminal User Manual Name Wiring Terminal (Including Power Supply Interface) Debugging Port (For Debugging Only)

  • Page 19: Chapter 3 Installation

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Indoor use only. ● Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● The minimum bearing weight of the wall or other places should be 3 times heavier than the ●...
  • Page 20 DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-2 Install Mounting Plate 3. Route the cable through the cable hole, wire the cables and insert the cables in the gang box.
  • Page 21 DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-3 Apply Silicone Sealant 4. Align the device with the mounting plate, and secure the device on the mounting plate with 1 supplied screw (SC-CM4X14-5T10-SUSS).

  • Page 22: Surface Mounting

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-4 Secure Device 3.3 Surface Mounting Steps Note The additional force shall be equal to three times the weight of the equipment. The equipment ad its associated mounting means shall remain secure during the installation. After the installation, the equipment, including any associated mounting plate, shall not be damaged.
  • Page 23 DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-5 Install Mounting Plate 2. Route the cable through the cable hole of the mounting plate, and connect to corresponding peripherals cables. Note If the device is installed outdoor, you should apply silicone sealant to the wiring exit to avoid water from entering.
  • Page 24 DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-6 Apply Silicone Sealant 3. Align the device with the mounting plate and hang the device on the mounting plate. Use 1 supplied screw (SC-CM4X14_5T10-SUSS) to secure the device and the mounting plate.

  • Page 25: Base Mounting

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-7 Hang Device 4. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.4 Base Mounting Steps 1. Route the cables through the cable hole of the bracket, and connect the terminals with peripherals cables.
  • Page 26 DS-K1T320 Series Face Recognition Terminal User Manual Figure 3-9 Fasten Bracket 3. Buckle into the bracket to the end to complete the installation. Figure 3-10 Complete Installation...

  • Page 27: Chapter 4 Wiring

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the NC/NO and COM terminal with the door lock, connect the SEN and GND terminal with the door contact and the BTN/GND terminal with the exit button. Note If cable size is 18 AWG, you should use a 12 V power supply.

  • Page 28: Wire Normal Device

    DS-K1T320 Series Face Recognition Terminal User Manual 4.2 Wire Normal Device You can connect the terminal with normal peripherals. Figure 4-1 Device Wiring Note Do not wire the device to the electric supply directly. ● When connecting door contact and exit button, the device should use the same common ground ●...

  • Page 29: Chapter 5 Activation

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported. The default values of the device are as follows: The default IP address: 192.0.0.64 ●...

  • Page 30: Activate Via Mobile Web

    DS-K1T320 Series Face Recognition Terminal User Manual password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 31: Activate Via Web Browser

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.
  • Page 32 DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Run the SADP software and search the online devices. 2. Find and select your device in online device list. 3. Input new password (admin password) and confirm the password. Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 33: Activate Device Via Ivms-4200 Client Software

    DS-K1T320 Series Face Recognition Terminal User Manual 5.5 Activate Device via iVMS-4200 Client Software For some devices, you are required to create the password to activate them before they can be added to the iVMS-4200 software and work properly. Steps Note This function should be supported by the device.

  • Page 34: Chapter 6 Quick Operation

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system. Figure 6-1 Select System Language By default, the system language is English.

  • Page 35: Set Network Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual Change via Security Questions If you need to change password via security questions, you can set security questions on Web. Press ESC. Note You can only select one type to change password. If you need, you can enter the web page to set both of the changing types.

  • Page 36: Access To Platform

    DS-K1T320 Series Face Recognition Terminal User Manual If disable DHCP, you should set the IP address, the subnet mask, and the gateway. Wi-Fi Select a Wi-Fi and enter the Wi-Fi's password to get connected. Or select Add Wi-Fi and enter the Wi-Fi's name and the password to get connected. 3.

  • Page 37: Set Administrator

    DS-K1T320 Series Face Recognition Terminal User Manual If you enable this function, you can save the picture when Authenticating to the device. Save Registered Pic. (Save Registered Picture) The registered face picture will be saved to the system if you enable the function. Upload Pic.
  • Page 38 DS-K1T320 Series Face Recognition Terminal User Manual : Press your finger according to the instructions on the device screen. Press OK to confirm. : Enter the card No. or present card on the card presenting area. Press OK to confirm. 3.

  • Page 39: Chapter 7 Basic Operation

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login.

  • Page 40: Forgot Password

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face, fingerprint or card to enter the home page. Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3.

  • Page 41: Set Wired Network Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual 7.2.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, the gateway, and DNS parameters. Steps 1. Select System Settings → Comm. (Communication) to enter the Communication settings page. 2.

  • Page 42: Set Isup Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual 1. Select System Settings → Comm. (Communication) to enter the Communication settings page. 2. On the Communication settings page, select Wi-Fi. Figure 7-3 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. Note Only digits, letters, and special characters are allowed in the password.
  • Page 43 DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-4 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group. Main Channel Support N1 or None.

  • Page 44: Platform Access

    DS-K1T320 Series Face Recognition Terminal User Manual If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only. Note Remember the ISUP account and ISUP key. You should enter the account name or the key ●...
  • Page 45 DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Long press OK to enter the admin login page. 2. Select User → Add User to enter the Add User page. 3. Edit the employee ID. Note The employee ID should be less than 32 characters. And it can be a combination of lower ●...

  • Page 46: Add Face Picture

    DS-K1T320 Series Face Recognition Terminal User Manual Note For details about setting the authentication type, see Set Authentication Mode . 8. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 47: Add Fingerprint

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-5 Add Face Picture 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate. ●...

  • Page 48: Add Card

    DS-K1T320 Series Face Recognition Terminal User Manual Steps Note The function should be supported by the device. ● Up to 1000 fingerprints can be added. ● 1. Long press OK and login the device. 2. Press User → Add User to enter the Add User page. 3.
  • Page 49 DS-K1T320 Series Face Recognition Terminal User Manual Steps Note The device supports EM card or M1 card. The supported card type varies between different models. 1. Long press OK and login the device. 2. Select User → Add User to enter the Add User page. 3.

  • Page 50: View Pin Code

    DS-K1T320 Series Face Recognition Terminal User Manual 7.3.5 View PIN code Add a PIN code for the user and the user can authenticate via the PIN code. Steps 1. Long press OK and login the device. 2. Select User → Add User to enter the Add User page. 3.

  • Page 51: Edit User

    DS-K1T320 Series Face Recognition Terminal User Manual 3. Select Device or Custom as the authentication mode. Device If you want to select device mode, you should set the terminal authentication mode in Access Control Settings page first. For details see Setting Access Control Parameters. Custom You can combine different authentication modes together according to your actual needs.

  • Page 52: Department Management

    DS-K1T320 Series Face Recognition Terminal User Manual 7.4.2 Department Management You can add, edit and delete the department. Tap Dept. on the Home page to enter the settings page. Add Department Tap +, enter the department name, and tap OK. Figure 7-7 Add Department Note The department name supports uppercase English, lowercase English, numbers and symbols.

  • Page 53: Enable Local T&A

    DS-K1T320 Series Face Recognition Terminal User Manual 7.4.3 Enable Local T&A You can enable Local T&A, and set attendance rules, shift and schedule. Steps 1. Long press OK to enter the admin login page. 2. Select Local T&A, and enable Local T&A. 7.4.4 Shift Management Set Attendance Rule for Shift Set attendance rule before setting shift.
  • Page 54 DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-9 Attendance Rule Example Mark as Early Leave if Checks out Early For Set the Mark as Early Leave if Checks out Early For time. For example, set the off work time as 17:30 and set the parameter as 10 min, the earliest check out time will be 17:20.

  • Page 55: Shift Schedule

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-10 Shift Management 2. Set the shift name and period in order and set the overtime shift period according to your needs. Note If the attendance rules conflict with the normal shift period, the device will prompt "Incorrect ●...

  • Page 56: Platform Attendance

    DS-K1T320 Series Face Recognition Terminal User Manual Before You Start Edit department. For details, see Department Management . ● Set shift. For details, see Set Shift . ● Steps 1. Select Local T&A → T&A → Schedule to enter the Shift Schedule by Department page. 2.

  • Page 57: Set Manual Attendance Via Device

    DS-K1T320 Series Face Recognition Terminal User Manual Select Platform Attendance to enter the settings page. Figure 7-11 Disable Attendance Mode Set the Attendance Mode as Disable. You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.

  • Page 58: Set Auto Attendance Via Device

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-12 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. The name will be displayed on the T &...
  • Page 59 DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-13 Auto Attendance Mode 3. Enable the Attendance Status Required function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. The name will be displayed on the T &...

  • Page 60: Set Manual And Auto Attendance Via Device

    DS-K1T320 Series Face Recognition Terminal User Manual 7.5.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule. At the same time you can manually change the attendance status after the authentication.

  • Page 61: Attendance Report

    DS-K1T320 Series Face Recognition Terminal User Manual Note The attendance status will be valid within the configured schedule. Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.

  • Page 62: Export Data

    DS-K1T320 Series Face Recognition Terminal User Manual 4. Enter the created password when you exported the data. If you do not create a password when you exported the data, leave a blank in the input box and select OK immediately. Note If you want to transfer all user information from one device (Device A) to another (Device B), ●...

  • Page 63: Identity Authentication

    DS-K1T320 Series Face Recognition Terminal User Manual 7.8 Identity Authentication After network configuration, system parameters configuration and user configuration, you can go back to the initial page for identity authentication. The system will authenticate person according to the configured authentication mode. 7.8.1 Authenticate via Single Credential Set the user authentication type before authentication.

  • Page 64: Basic Settings

    DS-K1T320 Series Face Recognition Terminal User Manual Note For detailed information about scanning fingerprint, see Tips for Scanning Fingerprint. ● For detailed information about authenticating face, see Tips When Collecting/Comparing Face ● Picture. If authentication succeeded, the prompt "Authenticated" will pop up. 7.9 Basic Settings You can set the voice, time, sleeping (s), language, supplement light and video standard.

  • Page 65: Password Management

    DS-K1T320 Series Face Recognition Terminal User Manual Select the language according to actual needs. Supplement Light Set the white light mode, brightness, start time and end time. Video Standard 25 frames per second. Suitable for mainland China, Hong Kong (China), the Middle East countries, Europe countries, etc.

  • Page 66: Set Access Control Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual Table 7-1 Face Picture Parameters Parameter Description Face Liveness Level After enabling face anti-​ s poofing function, you can set the matching security level when performing live face authentication. Face Recognition Set the valid distance between the user and the camera when Distance authenticating.
  • Page 67 DS-K1T320 Series Face Recognition Terminal User Manual Figure 7-16 Access Control Parameters The available parameters descriptions are as follows: Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Authentication Mode Select the face recognition terminal's authentication mode. You can also customize the authentication mode. Note Only the device with the fingerprint module supports the ●...

  • Page 68: Preference Settings

    DS-K1T320 Series Face Recognition Terminal User Manual Parameter Description M1 Card Encryption Enabling the M1 card encryption function can improve the card security level. The card will not be copied easily. Door Contact You can select "Remain Open" or "Remain Closed" according to your actual needs.

  • Page 69: System Maintenance

    DS-K1T320 Series Face Recognition Terminal User Manual 2. Select OK . 7.14 System Maintenance You can view the device system information and capacity. You can also upgrade device, view the user manual, restore the system to factory settings, default settings, and reboot the system. Long press OK and login the device.
  • Page 70 DS-K1T320 Series Face Recognition Terminal User Manual If the device has been connected to Hik-Connect and network, when there is a new installation package in Hik-Connect, you can select Device Upgrade → Online Update to upgrade the device system. Update via USB Plug the USB flash drive in the device USB interface.

  • Page 71: Chapter 8 Configure The Device Via The Mobile Browser

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 8 Configure the Device via the Mobile Browser 8.1 Login You can login via mobile browser. Note Parts of the model supports Wi-Fi settings. ● Make sure the device is activated. ● Make sure the device and the mobile phone are in the same Wi-Fi.

  • Page 72: Forget Password

    Answer the security questions. E-mail Verification 1. Export the QR code and send it to pw_recovery@hikvision.com as attachment. 2. You will receive a verification code within 5 minutes in your reserved email. 3. Enter the verification code into the verification code field to verify your identification.

  • Page 73: Set Dst

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 8-1 Time Settings Tap Save to save the settings. Time Zone Select the time zone where the device is located from the drop-down list. Time Sync. Mode Manual By default, the device time should be synchronized manually. You can set the device time manually.

  • Page 74: User Management

    DS-K1T320 Series Face Recognition Terminal User Manual Figure 8-2 DST 2. Tap Enable DST. 3. Set the start time, end time, and DST bias. 4. Tap Save. 8.4.4 User Management Steps 1. Tap → User Management → User Management → admin to enter the setting page. 2.
  • Page 75 DS-K1T320 Series Face Recognition Terminal User Manual → Communication Settings → Wired Network to enter the configuration page. DHCP If you disable the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, Mac address, and MTU, Mac address, MTU. If you enable the function, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4 default gateway automatically.
  • Page 76 DS-K1T320 Series Face Recognition Terminal User Manual Figure 8-3 Wi-Fi...

  • Page 77: Platform Access

    DS-K1T320 Series Face Recognition Terminal User Manual 3. Add Wi-Fi. 1) Tap Add Wi-Fi. 2) Enter Wi-Fi Name and Wi-Fi Password, and select Encryption Type. 3) Tap Save. 4. Select the Wi-Fi name, and tap Connect. 5. Enter the password and tap Save. Set Device Hotspot Set the device hotspot, and mobile phone can connect to the device to enter the mobile browser.

  • Page 78: User Management

    DS-K1T320 Series Face Recognition Terminal User Manual Note 6 to 12 letters (a to z, A to Z) or numbers (0 to 9), case sensitive. You are recommended to use ● a combination of no less than 8 letters or numbers. The verification code cannot be 123456 or abcdef (case non-sensitive0).

  • Page 79: Search Event

    DS-K1T320 Series Face Recognition Terminal User Manual Name Enter your name. The name supports numbers, uppercase and lowercase English, and characters. The name is recommended to be within 32 characters. Long-Term Effective User Set the user permission as long-term effective. Start Date/End Date Set Start Date and End Date of user permission.
  • Page 80 DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Tap → Access Control → Authentication Settings . 2. Tap Save. Terminal Select terminal for settings. Terminal Type/Terminal Model Get terminal description. They are read-only. Enable Authentication Device Enable the authentication function. Authentication Select an authentication mode according to your actual needs from the drop-down list.
  • Page 81 DS-K1T320 Series Face Recognition Terminal User Manual Figure 8-4 Door Parameters Settings Page Tap Save to save the settings after the configuration. Name You can create a name for the door. Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked.

  • Page 82: Terminal Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual You can set the exit button as Remain Open or Remain Closed according to your actual needs. By default, it is Remain Open. Door Remain Open Duration with First Person (min) Set the door open duration when first person is in. After the first person is authorized, it allows multiple persons access the door or other authentication actions.

  • Page 83: Face Parameters Settings

    DS-K1T320 Series Face Recognition Terminal User Manual In order to prevent the mobile phone from getting the data of the access control, you can enable NFC card to increase the security level of the data. Enable M1 Card Enable M1 card and authenticating by presenting M1 card is available. M1 Card Encryption M1 card encryption can improve the security level of authentication.

  • Page 84: Set Time And Attendance Via Mobile Web Browser

    DS-K1T320 Series Face Recognition Terminal User Manual Fingerprint Security Level You can set the security level of fingerprint. The higher the security level you set, the lower the False Acceptance Rate (FAR) will be. The higher the security level you set, the lower the False Rejection Rate (FRR) will be.
  • Page 85 DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Tap → Department Management to enter the settings page. 2. Add the department. 1) Tap +. 2) Enter the department name, and tap OK. Note The department name supports uppercase English, lowercase English, numbers and symbols. ●...
  • Page 86 DS-K1T320 Series Face Recognition Terminal User Manual Note By default, if set as 0 min, the valid check out time ends at 23:59:59. Note The unit is min. ● The available time is from 0 to 1440 min. ● Manage Shift via Mobile Web Browser You can set the normal shift and man-hour shift.
  • Page 87 DS-K1T320 Series Face Recognition Terminal User Manual Manage Shift Schedule by Department via Mobile Web Browser All persons in the department use the same shift schedule to take attendance. Before You Start Edit the department. You can refer to Manage Department via Mobile Web Browser for details. ●...

  • Page 88: Set Privacy Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual 8.4.11 Set Privacy Parameters Set the display settings, picture upload and storage parameters. → Configuration → Security → Privacy Settings . Authentication Settings Picture Display/Name Display/Employee ID You can tap to enable Picture, Name, or Employee ID to display. When authentication is completed, the system will display the selected contents in the result.

  • Page 89: Upgrade And Maintenance

    DS-K1T320 Series Face Recognition Terminal User Manual Platform-Applied Personal PIN It can be created or edited on the platform, and issued to the device before it can be used. It cannot be set on the device or on the web. 2.

  • Page 90: Chapter 9 Quick Operation Via Web Browser

    DS-K1T320 Series Face Recognition Terminal User Manual Chapter 9 Quick Operation via Web Browser 9.1 Select Language You can select a language for the device system. Click in the top right of the web page to enter the Device Language Settings page. You can select a language for the device system from the drop-down list.

  • Page 91: Administrator Settings

    DS-K1T320 Series Face Recognition Terminal User Manual Picture Uploading and Storage Save Picture When Authenticating Save picture when authenticating automatically. Upload Picture When Authenticating Upload the pictures when authenticating to the platform automatically. Save Registered Picture The registered face picture will be saved to the system if you enable the function. Upload Picture After Linked Capture Upload the pictures captured by linked camera to the platform automatically.

  • Page 92: And System Network

    DS-K1T320 Series Face Recognition Terminal User Manual 9.5 No. and System Network Steps 1. Click in the top right of the web page to enter the wizard page. After previous settings, you can click Next to enter the No. and System Network settings page. 2.

  • Page 93: Chapter 10 Operation Via Web Browser

    Answer the security questions. E-mail Verification 1. Export the QR code and send it to pw_recovery@hikvision.com as attachment. 2. You will receive a verification code within 5 minutes in your reserved email. 3. Enter the verification code into the verification code field to verify your identification.
  • Page 94 DS-K1T320 Series Face Recognition Terminal User Manual Figure 10-1 Live View Page Function Descriptions: Door Status Click to view the device live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view.

  • Page 95: Person Management

    DS-K1T320 Series Face Recognition Terminal User Manual You can view the event Employee ID, Name, Card No., Event Type, Time, and Operation. You can also click View More to enter the search conditions, including the event type, employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 96: Add Password

    DS-K1T320 Series Face Recognition Terminal User Manual Add Face Picture Click Person Management → Add to enter the Add Person page. Click + Upload to upload a face picture from the local PC. Note The picture format should be JPG or JPEG or PNG, and the size should be less than 200 kb. Click Save to save the settings.

  • Page 97: Configuration

    DS-K1T320 Series Face Recognition Terminal User Manual 10.6 Configuration 10.6.1 Set Local Parameters Set the live view parameters, picture and clip settings. Set Live View Parameters Click Configuration → Local to enter the Local page. Configure the stream type, the play performance, auto start Live View and click Save.

  • Page 98: Set Dst

    DS-K1T320 Series Face Recognition Terminal User Manual You should set the NTP server's IP address, port No., and interval. Manual By default, the device time should be synchronized manually. You can set the device time manually or check Sync. with Computer Time to synchronize the device time with the computer's time.

  • Page 99: Account Security Settings

    DS-K1T320 Series Face Recognition Terminal User Manual three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.
  • Page 100 DS-K1T320 Series Face Recognition Terminal User Manual Figure 10-4 TCP/IP Settings Page Set the parameters and click Save to save the settings. NIC Type Select a NIC type from the drop-down list. By default, it is Auto. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, Mac address, and MTU.
  • Page 101 DS-K1T320 Series Face Recognition Terminal User Manual Figure 10-5 Wi-Fi Settings Page 2. Check Wi-Fi. 3. Select a Wi-Fi - Click Connect of a Wi-Fi in the list and enter the Wi-Fi password. - Click Manual Add and enter a Wi-Fi's SSID, working mode, security mode, and password. Click 4.
  • Page 102 DS-K1T320 Series Face Recognition Terminal User Manual HTTP It refers to the port through which the browser accesses the device. For example, when the HTTP Port is modified to 81, you need to enter http://192.0.0.65:81 in the browser for login. HTTPS Set the HTTPS for accessing the browser.

  • Page 103: Set Video Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual Note After adding the device to APP, you need to enter the video encryption password to live view the device. 6. Optional: Click View to view the device QR code. Scan the QR code to account. Note Scan the QR code before it loses efficacy.

  • Page 104: Set Image Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual Note The functions vary according to different models. Refers to the actual device for details. 10.6.10 Set Image Parameters You can adjust the image parameters, video parameters, supplement parameters and capture interval. Steps 1.
  • Page 105 DS-K1T320 Series Face Recognition Terminal User Manual Click Save to save the settings after the configuration. Terminal Type/Terminal Model Select terminal and get the terminal description. They are read-only. Enable Authentication Device Enable the authentication function. Authentication Select an authentication mode according to your actual needs from the drop-down list. Recognition Interval You can set the interval between 2 continuous recognition of a same person during the authentication.
  • Page 106 DS-K1T320 Series Face Recognition Terminal User Manual Figure 10-7 Door Parameters Settings Page Click Save to save the settings after the configuration. Door No. Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration.

  • Page 107: Card Settings

    DS-K1T320 Series Face Recognition Terminal User Manual The door contact can be enabled with appropriate delay after person with extended access needs swipes her/his card. Door Remain Open Duration with First Person Set the door open duration when first person is in. After the first person is authorized, it allows multiple persons access the door or other authentication actions.

  • Page 108: Time And Attendance Settings

    DS-K1T320 Series Face Recognition Terminal User Manual Enable the function and set the encryption sector. By default, Sector 13 is encrypted. It is recommended to encrypt sector 13. Enable CPU Card Enable CPU card and authenticating by presenting CPU card is available. Set Card No.
  • Page 109 DS-K1T320 Series Face Recognition Terminal User Manual Time Settings Steps 1. Click Configuration → Platform Attendance to enter the settings page. 2. Select Schedule Template. 3. Drag mouse to set the schedule. Note Set the schedule from Monday to Sunday according to the actual needs. 4.
  • Page 110 DS-K1T320 Series Face Recognition Terminal User Manual Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule. Before You Start Add at least one user, and set the user's authentication mode.

  • Page 111: Local Time And Attendance Settings

    DS-K1T320 Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 10.6.14 Local Time and Attendance Settings Manage Department via Web You can add, edit and delete department information via Web.
  • Page 112 DS-K1T320 Series Face Recognition Terminal User Manual Figure 10-8 Attendance Rule Example Mark as Early Leave if Checks out Early For Set the Mark as Early Leave if Checks out Early For time. For example, set the off work time as 17:30 and set the parameter as 10 min, the earliest check out time will be 17:20.
  • Page 113 DS-K1T320 Series Face Recognition Terminal User Manual Manage Flexible Shift via Web You can set fixed work duration and flexible on-work and off-work time of person for attendance check.. Steps 1. Click Configuration → Time and Attendance → Schedule → Shift Management . 2.

  • Page 114: Set Privacy Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Click Time and Attendance → Schedule to enter the Shift Schedule page. 2. Click Add Schedule. 3. Set Schedule Name. 4. Click Add to select the Department/Person, and select the person. For details, see Person Management .

  • Page 115: Set Password Mode

    DS-K1T320 Series Face Recognition Terminal User Manual Drag the block or enter number to set the period for event deleting. All events will be deleted according to the configured time duration. Delete Old Events by Specified Time Set a time and all events will be deleted on the configured time. Overwriting The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space.

  • Page 116: Set Biometric Parameters

    DS-K1T320 Series Face Recognition Terminal User Manual or edited on the device or on the web, and cannot be set on other platforms; If it is a platform- applied personal PIN, it can be created or edited on the platform, and issued to the device before it can be used.
  • Page 117 DS-K1T320 Series Face Recognition Terminal User Manual 1:1 Matching Threshold Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. 1:N Matching Threshold Set the matching threshold when authenticating via 1:N matching mode.

  • Page 118: Set Preference

    DS-K1T320 Series Face Recognition Terminal User Manual Click to record videos or capture pictures. 10.6.18 Set Preference You can set the display theme and the sleep time for the device. Set Theme Click Configuration → Preference → Screen Display . Sleep Enable Sleep and the device will enter the sleep mode when no operation within the configured sleep time.

  • Page 119: Device Debugging

    DS-K1T320 Series Face Recognition Terminal User Manual The device will restore to the default settings, except for the device IP address and the user information. Import and Export Parameters Click Maintenance and Security → Maintenance → Backup and Reset . Export Click Export to export the device parameters.

  • Page 120: Log Query

    DS-K1T320 Series Face Recognition Terminal User Manual Steps 1. Click Maintenance and Security → Maintenance → Device Debugging . 2. You can set the following parameters. Enable SSH To raise network security, disable SSH service. The configuration is only used to debug the device for the professionals.
  • Page 121 DS-K1T320 Series Face Recognition Terminal User Manual Note The function is only supported by certain device models. Create and Install Self-signed Certificate Steps 1. Go to Maintenance and Security → Security → Certificate Management . 2. In the Certificate Files area, select a Certificate Type from the drop-down list. 3.
  • Page 122 DS-K1T320 Series Face Recognition Terminal User Manual Note The input certificate ID cannot be the same as the existing ones. 3. Upload a certificate file from the local. 4. Click Install.

  • Page 123: Chapter 11 Other Platforms To Configure

    You can also configure the device via iVMS-4200 Client Software or HikCentral Access Control. For details, see the platforms' user manual. iVMS-4200 Client Software Click/tap the link to view the client software's user manual. http://enpinfodata.hikvision.com/analysisQR/showQR/ca930247 HikCentral Access Control (HCAC) Click/tap the link to view the HCAC's user manual. http://enpinfodata.hikvision.com/analysisQR/showQR/f2f6cf42...

  • Page 124: Appendix A. Tips For Scanning Fingerprint

    DS-K1T320 Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 125 DS-K1T320 Series Face Recognition Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again. Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods.

  • Page 126: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T320 Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 127 DS-K1T320 Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 128: Appendix C. Tips For Installation Environment

    DS-K1T320 Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Avoid backlight, direct and indirect sunlight...

  • Page 129: Appendix D. Dimension

    DS-K1T320 Series Face Recognition Terminal User Manual Appendix D. Dimension Figure D-1 Dimension...
  • Page 130 UD28901B-C...

This manual is also suitable for:

Ds-k1t320 seriesDs-k1t320mfwxDs-k1t320mfxDs-k1t320mwxDs-k1t320mxDs-k1t320efwx ... Show all

Table of Contents
